MDE-3664B TRIND® Start-up, Service, and Parts Manual · June 2013 Page 5-1
ASC TRIND Tool Kit (K94577-01) System Accessories
5 – System Accessories
ASC TRIND Tool Kit (K94577-01)
The ASC TRIND Tool Kit contains specialized tools required for installation and service of
TRIND equipped units.
Kit Contents
The Tool Kit contains the following items
Description Part Number Quantity
Cable, Standalone Jumper R20602-G1 1
Cable, Standalone Jumper R20602-G2 1
Co-axial Cable Tool Q13628-01 1
Field Strength Sensor Board Q13626-01 1
Test Tag, TI/RFID Car Mount Q13630-01 1
Test Tag, TI/RFID Hand-held Q13630-02 1
Threaded Rod, 3/8-16 X 4” N23880-01 4
Tuning Tool, Plastic Tipped Q13631-01 1
Tuning Tool, Plastic Tipped Q13631-02 1
.
Standalone Jumper Cables
Standalone Jumper Cable (R20602-G1) for LF/UHF Full System
This cable is used for MPD-3 installation or troubleshooting on any unit that requires placing
the unit the standalone mode. After powering down unit, either Side A or B Light Micro
Reader Cable (R20519-G3) is disconnected from either J8 (Side B) or J7 (Side A) on DCB in
the TRIND Card Cage, and Standalone Jumper Cable is connected in-line (between J8 and P8
or between J7 and P7). A standard alkaline 9 V battery (not supplied with kit) must be
connected to Standalone Jumper Cable.

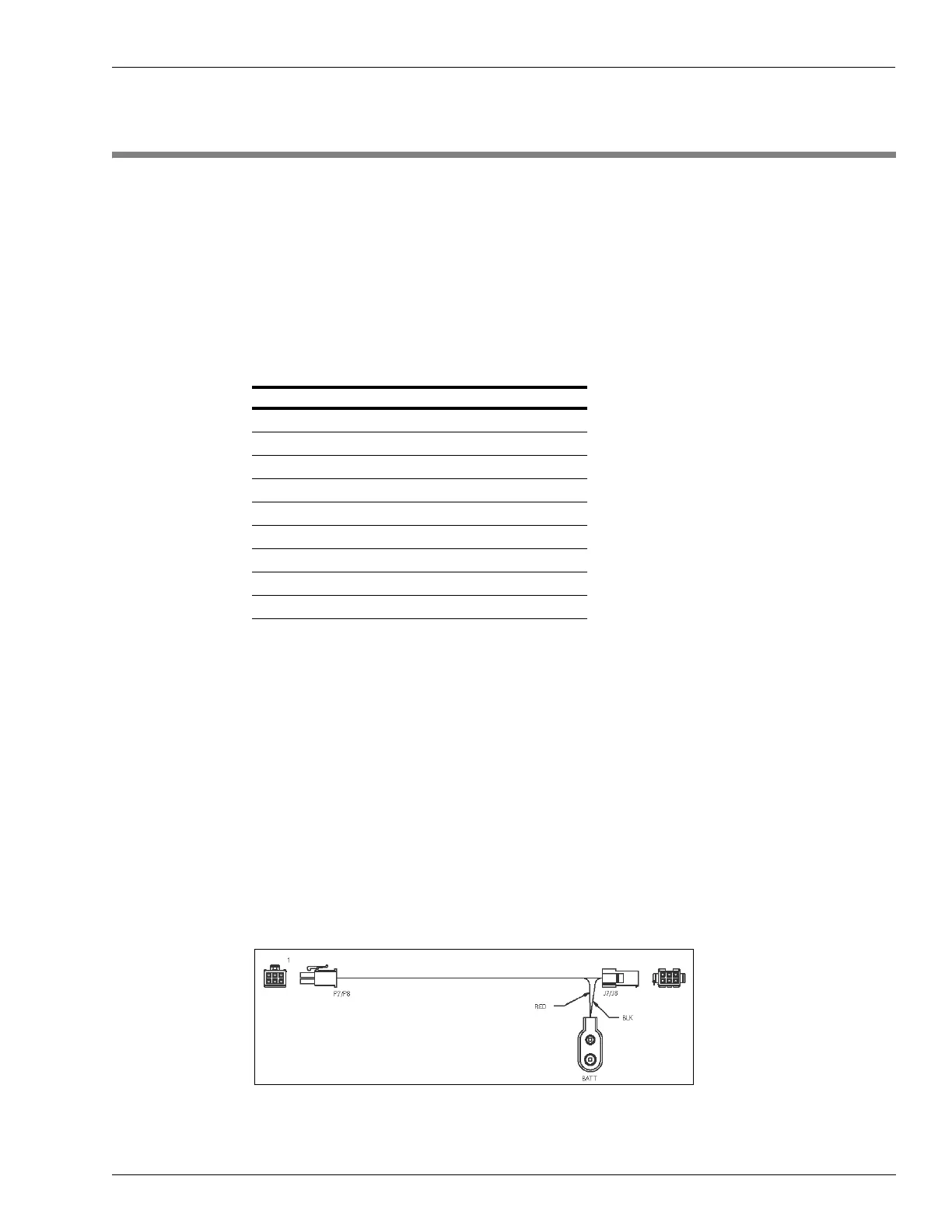

Figure 5-1: R20602-G1 Standalone Jumper Cable
