System Accessories Standalone Jumper Cables
Page 5-2 MDE-3664B TRIND® Start-up, Service, and Parts Manual · June 2013
Note: If Standalone Jumper or 9 V battery is not available, unit can be put in standalone using
the jump jack on JP3.
Connector on R20602-G1 Connects To On
J7/J8 Either J7 or J8 DCB PCB on Card Cage
P182 Either P7 or P8 Side A or B Light Micro Reader Cable (R20519-G3)
Battery connectors Battery terminals Standard 9 V alkaline battery

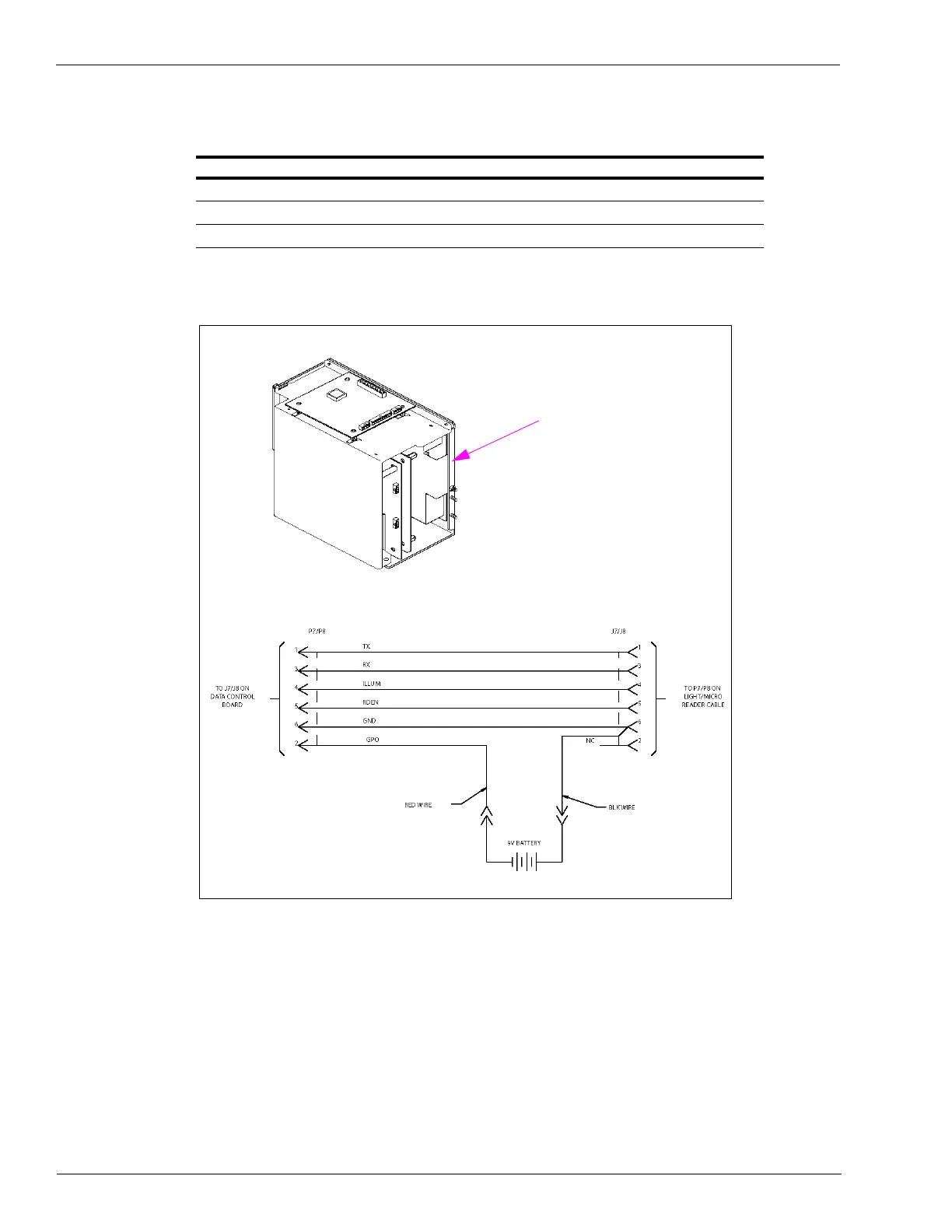

Figure 5-2: R20602-G1 Card Cage Connections and Wiring Diagram
J8 and J7
on TRIND Card Cage
Wiring Diagram
