TRIND Option Doors with Antennas Major Hardware Components
Advantage Narrow Frame Option Door Assemblies
This section provides parts data for The Advantage Series Narrow Frame Option Doors.

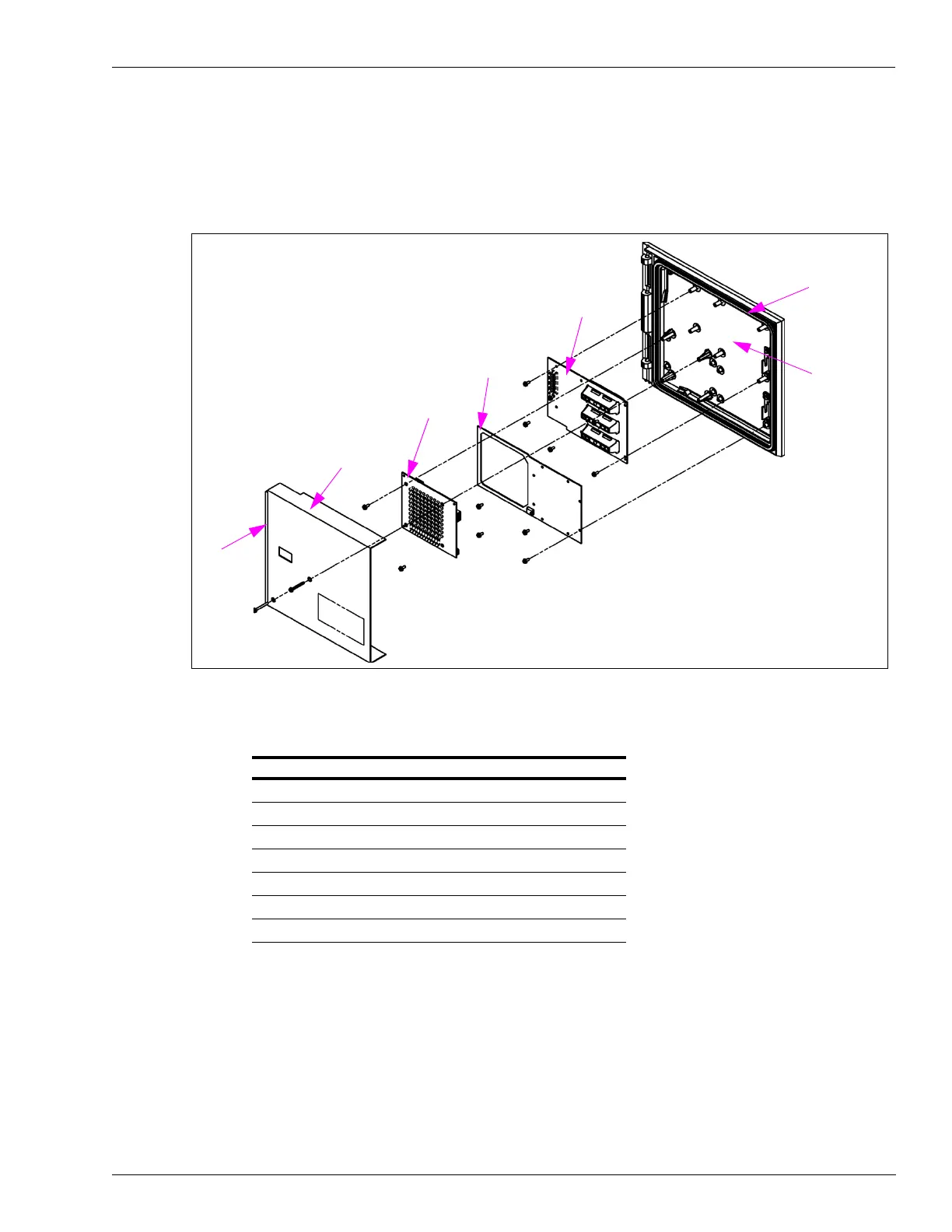

Figure 4-28: The Advantage Series Narrow Frame (36 inches) Option Door Assembly
N/F Option
Door
Access Door Gasket
Display PCB Assembly
TRIND Antenna Assembly PCB
RFID Light/Micro Reader
N/F Door Shield
Solid Strip
Grommet
Narrow Frame Option Door Assembly
Following table lists the Narrow Frame Option Door Assembly parts:
Item Part Description Part Number
1 Solid Strip Grommet Q10315-06
2 N/F Door Shield T20571-G1
3 RFID Light/Micro Reader* M01580A00X
4 TRIND Antenna Assembly PCB T20524-G1
5 Display PCB Assembly T20262-G1
6 Access Door Gasket R20424-01
7 N/F Option Door T20416-01
*Order entry item available as -A001 and -A002.
