Major Hardware Components TRIND Option Doors with Antennas
Page 4-30 MDE-3664B TRIND® Start-up, Service, and Parts Manual · June 2013
Eclipse Ovendoor Option Assembly
This section provides the parts for the Eclipse Ovendoor Option Assembly.

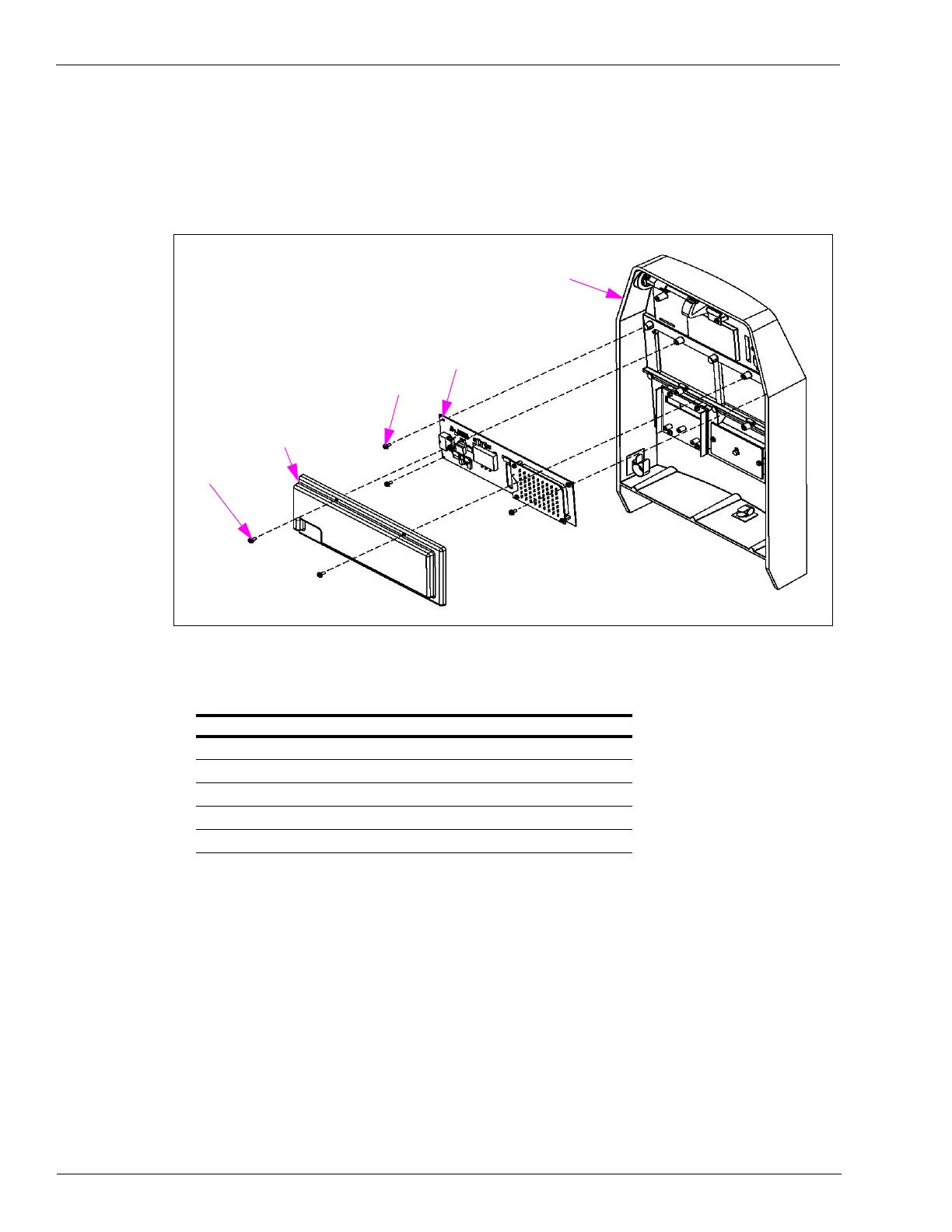

Figure 4-31: Eclipse Ovendoor Option Assembly
TRIND Light and Indicator
Assembly
Slotted 6-20 X 0.3125
Screw
Eclipse
TRIND/Cash
Acceptor
Ovendoor
Eclipse Ovendoor
TRIND Assembly
TRIND PCB Cover
Eclipse Ovendoor Option Assembly Parts List
Following table lists the Eclipse Ovendoor Option Assembly parts:
Item Part Description Part Number
1 Eclipse TRIND/Cash Acceptor Ovendoor M01509A001
2 Eclipse Ovendoor TRIND Assembly M01661A001
3 TRIND PCB Cover M01408B001
4 Slotted 6-20 X 0.3125 Screw Q11677-23
5 TRIND Light and Indicator Assembly M01218A00X*
*Order entry item available as red (-A001) or orange (-A002).
