MDE-3664B TRIND® Start-up, Service, and Parts Manual · June 2013 Page 4-3
Card Cage Assemblies Major Hardware Components
T20606-G2 Card Cage Assembly Parts List
Following table lists the T20606-G2 Card Cage Assembly parts:
Item Description Part Number
1 TRIND Gateway PCB T20128-G3
2 Circuit Board Support Q10651-16
3 TRIND PCB Bracket M00624A001
4 Multi-port DCB Q13563-04
5 Radio PCB Shield R20545-G1
6 PCB Insulator Board R20590-01
7 Low Frequency Transmitter Module Q13579-01
8 24 VAC Transformer R20719-G1
9 Recessed Power Receptacle R20206-G14
10 10 A EMI Filter Q10895-01
11 TRIND PCB Shield Bracket M00621A001
12 Regulator PCB Shield T20198-01
13 Regulator PCB T20314-G1
T20606-G3 Card Cage Assembly
T20606-G3 Card Cage supports “keytag only” operation and features an Enhanced Gateway
Board, which serves as the local controller for the RF modules (taking the place of the DCB)
and the protocol handler for payment messaging (to CRIND or other Host Controller device).
This Card Cage comes ready to mount in Encore, The Advantage Series, Eclipse and MPD-3,
with no modifications required.

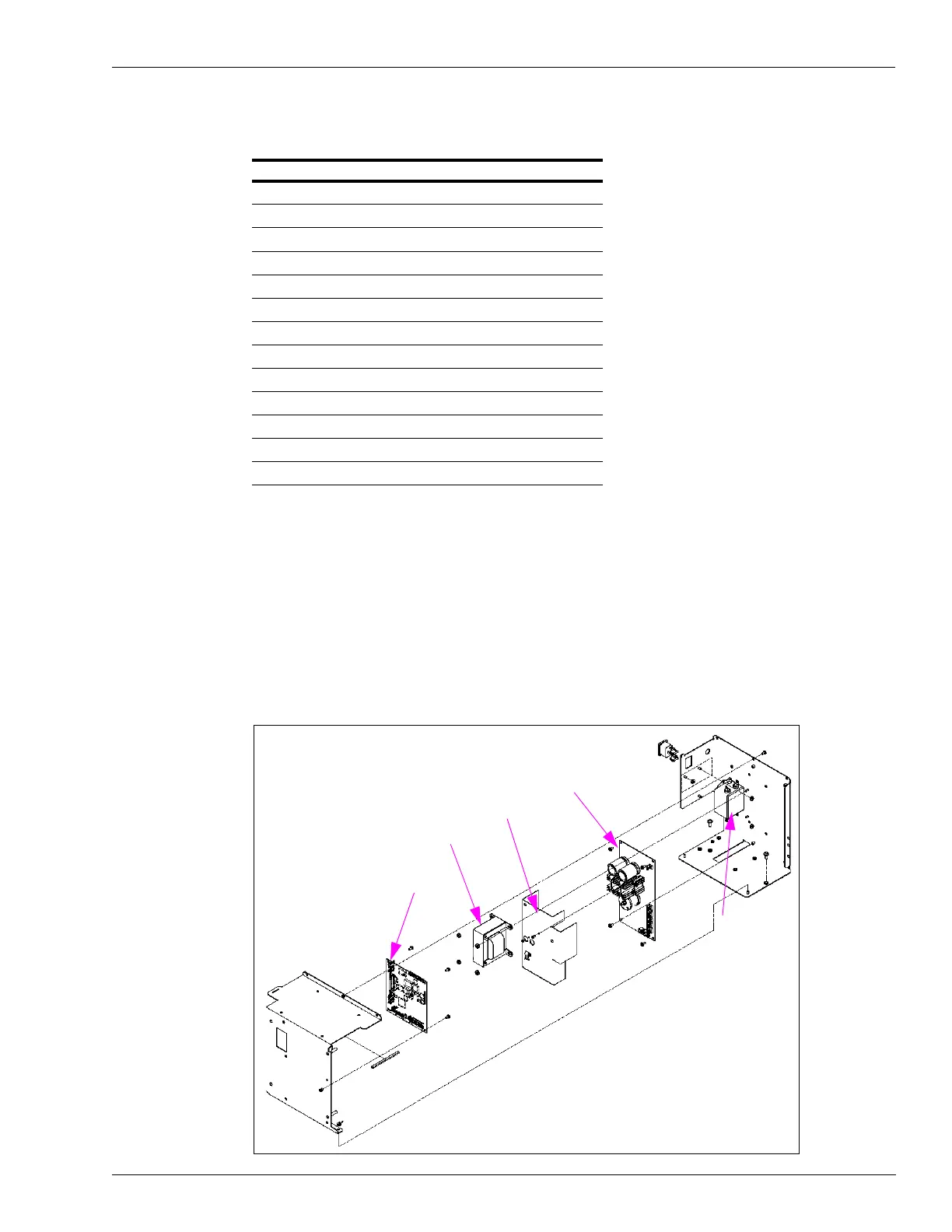

Figure 4-3: T20606-G3 Card Cage Assembly
Regulator PCB
Enhanced Gateway PCB
Shield, Regulator, PCB
Filter, EMI,
10 A
Transformer, 24 VAC
To Next Page
