Major Hardware Components System Cables
Page 4-34 MDE-3664B TRIND® Start-up, Service, and Parts Manual · June 2013
System Cables
This section provides a description and parts information for the TRIND system cables. These
cables are used to make connections between the various TRIND and dispenser components
that comprise the TRIND system.
Note: To ensure compliance with EMC
®
standards, do not remove the ferrite beads from cable
assemblies provided with them.
L/HF Antenna Cable (M00878)
The Overhead Antenna Cable Assemblies (M00878A001 and M00878A002), connect the
overhead antennas to the TRIND UHF receiver and LF transmitter. The M00878A001 Cable is
used for the Encore units, the M00878A002 is used for The Advantage Series and MPD-3
units.
Note: If the unit has an Exxon Lightbox, an overhead Antenna Cable Extension
(M01
380A001) used for this configuration.

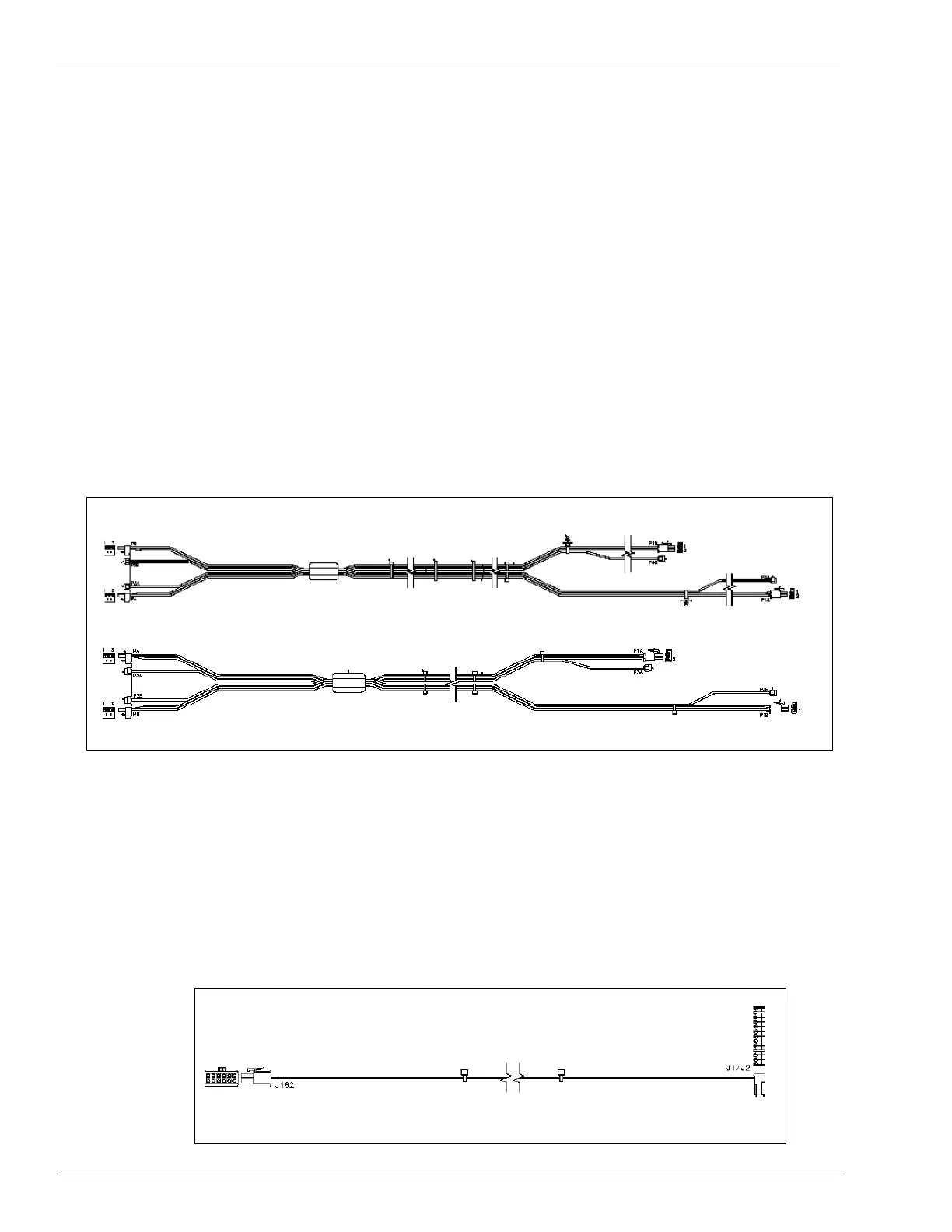

Figure 4-38: L/HF Antenna Cable
Power and Data Option Door Cable (R20773)
The Power and Data Option Door Cable connects the Light/Micro Reader PCA to the TRIND
Card Cage.
Note: This cable exists in some quantities as 55 inches long. This was event
ually changed to
70 inches long (Revision C and above). If you encounter the shorter version, you need
an Extender Cable (M01557A001) for each side of the dispenser.
Figure 4-39: Power and Data Option Door Cable
To DCB or Enhanced
Gateway Board
To TRIND Light Board
To Next Page
