MPD-3 Bezel Assemblies (T20616)
The following sections provide parts information for the MPD-3 Bezel Assemblies.

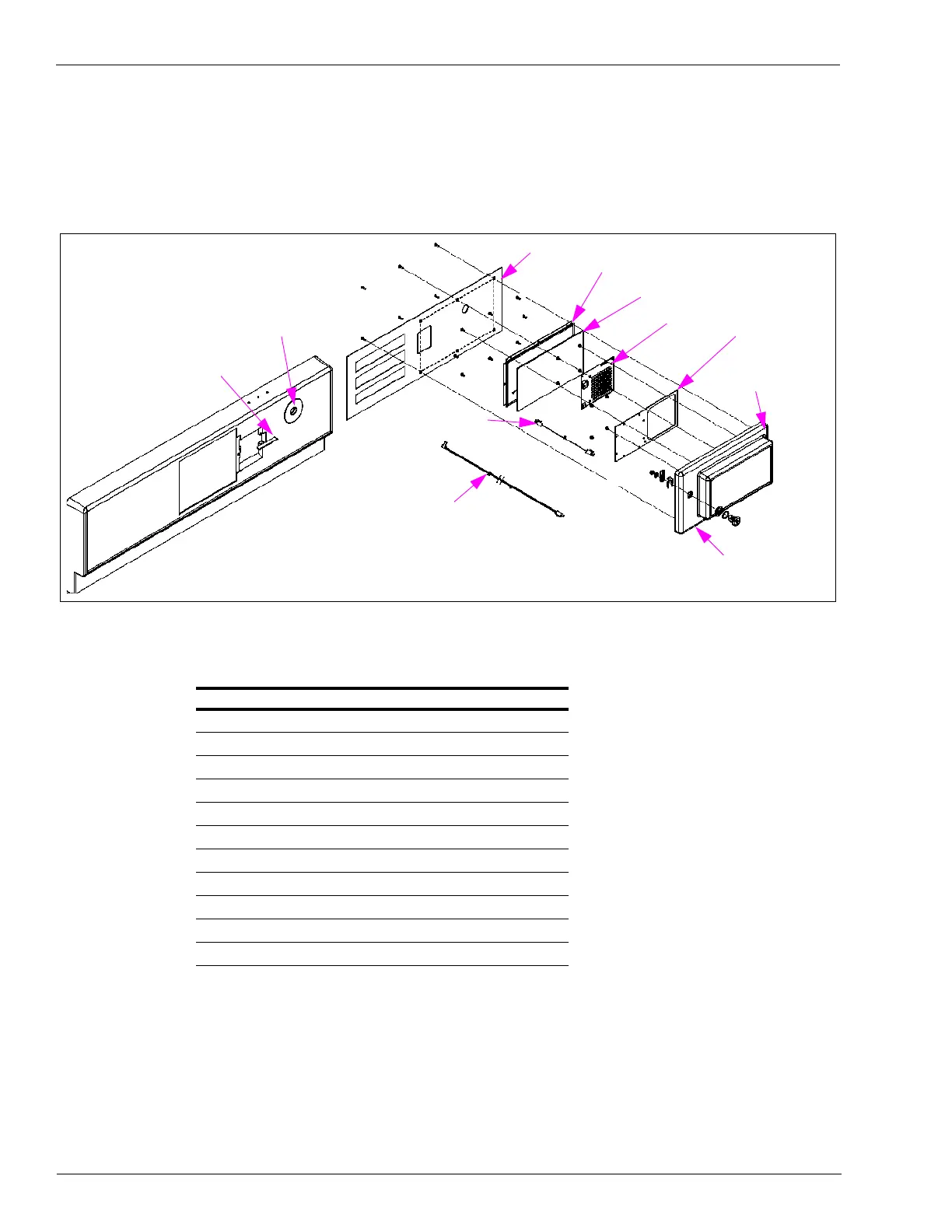

Figure 4-23: MPD-3 Bezel Assembly (T20616-G1)
MPD-3 Housing
Neoprene
Sponge Tape
TI/RFID Antenna
Assembly
Light Micro Reader PCA
Inside Cover Gasket
Inside Cover, MPD-3 Housing
Bezel Panel Assembly
Cable Access Gasket
Lock Plate
Interface hand-held
Antenna Cable
TRIND Option Door
Data and Power Cable
MPD-3 Bezel Assembly
Following table lists the MPD-3 Bezel Assembly parts:
Item Description Part Number
1 Housing, MPD-3 T20417-G1
2 Tape, Single Coated Neoprene Sponge Q11899-02
3 TI/RFID Antenna Assembly T20524-G1
4 Light Micro Reader PCA T20601-G1
5 Inside Cover Gasket R20584-01
6 Inside Cover, MPD-3 Housing T20216-01
7 Bezel Panel Assembly T17446-G8
8 Interface Hand-held Antenna Cable R20522-G2
9 TRIND Option Door Data and Power Cable R20773-G2
10 Cable Access Gasket N23881-01
11 Plate, Lock N23873-G1
