Gilbarco TRIND User Manual

Major Hardware Components TRIND Option Doors with Antennas
Page 4-24 MDE-3664B TRIND® Start-up, Service, and Parts Manual · June 2013

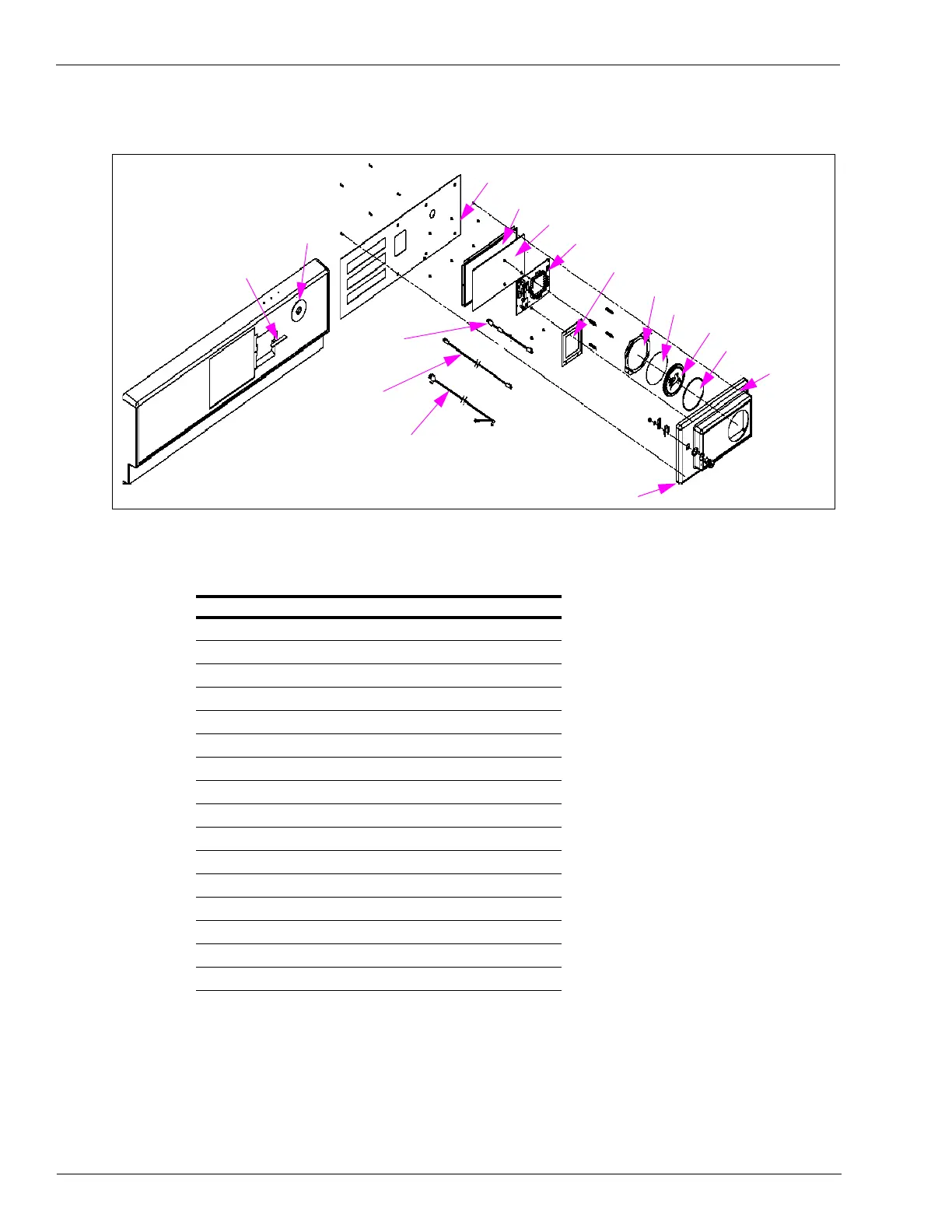

Figure 4-25: MPD-3 Bezel Assembly
MPD-3 Housing
Lens Retainer Bracket
TI/RFID Antenna PCB Assembly
TI/RFID Light/Micro Reader PCB
Inside Cover Gasket
MPD-3 Housing Inside Cover
Bezel Panel Assembly
Cable Access Gasket
Neoprene
sponge
Tape
Light Micro
Leader Cable
Cable Interface/Micro Reader
Lock Plate
O-ring
Mobil Lens
Diffuser
Hand-held Antenna
Interface Cable
MPD-3 Bezel Assembly
Following table lists the MPD-3 Bezel Assembly parts:
Item Part Description Part Number
1 Housing, MPD-3 T20179-01
2 Tape, Single Coated Neoprene Sponge Q11899-02
3 O-ring, 4.25 X 4.28 Q13575-02
4 Lens, Mobil Q13575-01
5 Diffuser Q13575-03
6 Bracket, Lens Retainer Q13575-04
7 TI/RFID Antenna PCB Assembly T20143-G1
8 TI/RFID Light/Micro Reader PCB T20446-G1
9 Gasket, Inside Cover R20584-01
10 Inside Cover, MPD-3 Housing T20216-01
11 Bezel Panel Assembly T17446-G8*
12 Gasket, Cable Access N23881-01
13 Plate, Lock N23873-G1
14 Cable, Hand-held Antenna Interface R20522-G1
15 Cable, Light Micro Reader R20519-G3
16 Interface/Micro Reader, Cable R20521-G3
*Slide-in panel for PMI bezels.
