Column 1
In the first column are listed the control outputs.
The numbers for the servos refer to the servos connected to the cor-
responding receiver outputs providing that the transmitter and
receiver outputs have not been switched. A change in the control
mode therefore does not influence the numbering of the servos.
Column 2 "Rev"
With this option it is possible to adapt the servo direction to the spe-
cifics of each model.
Selection through the SET button and t u: "=>" normal, "<="
reverse
Column 3 "Cent"

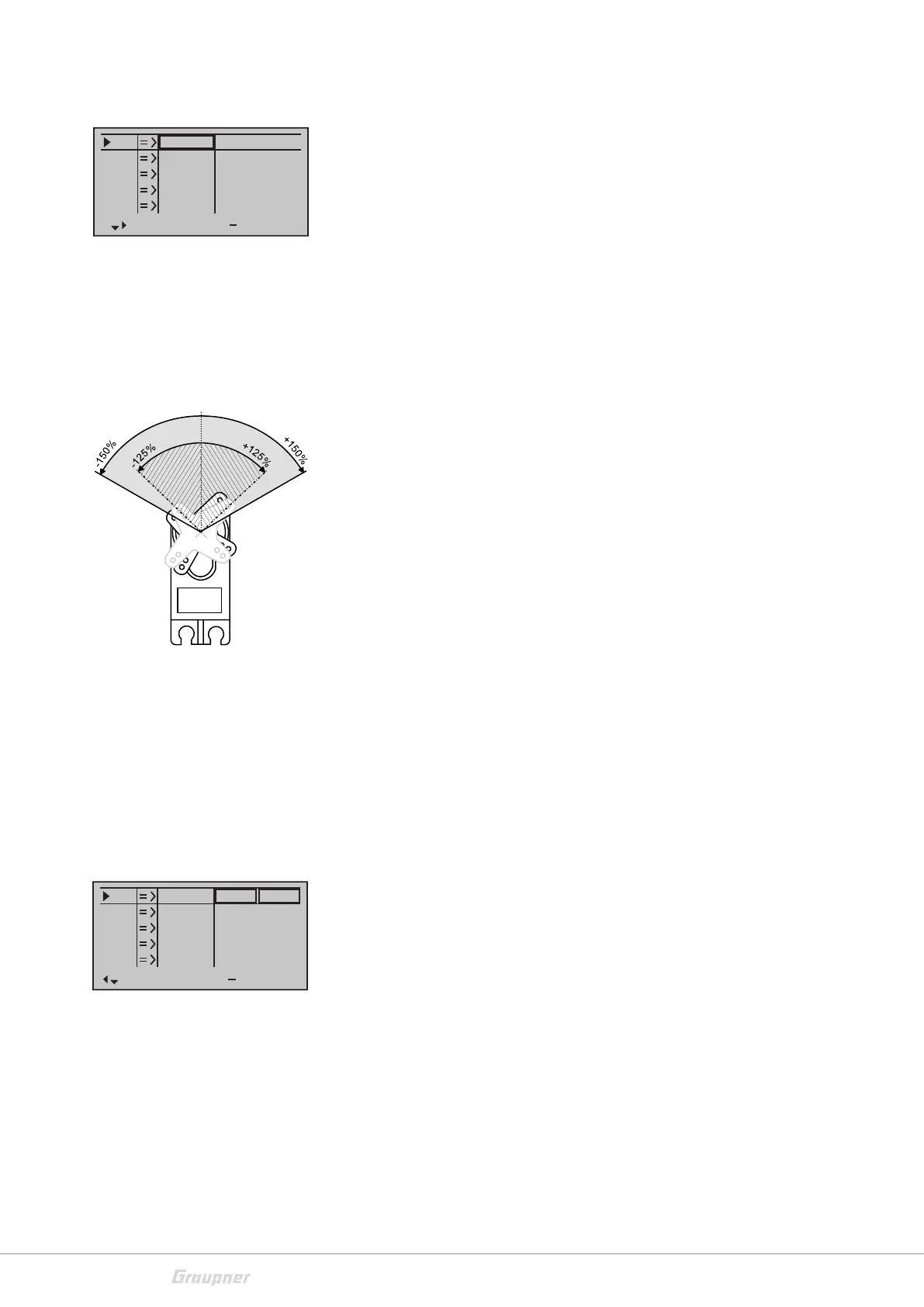

You can slip the servo centre in a ±125 % area within the servo travel
of max. ±150 %. The servo is always adjusted directly independent
of all other trim and mix settings.
Column 4 "– Trv +"
In this column you can set the servo travel for both sides, together
or separated for each side. The setting range is 0 … 150% of the nor-
mal travel. The set values always refer to the settings in the column
"Centre".
Symmetrical travel setting:
Move the related control element (control stick, proportional con-
trol or switch) into a position in which both sides of the travel adjust-
ment are surrounded by the marking frame.
Asymmetrical travel setting:
Move the related control element (control stick, proportional con-
trol or switch) into a position in which the single side of the travel
adjustment is surrounded by the marking frame.
Column 5 "Lim"
In this column you can limit the servo travel. You can reach the col-
umn "- lim +", if you move the marking frame to the right over the
column "- Trv +" through the selection button .
Symmetrical or asymmetrical setting of the limit as explained in the
point
"– Trv +".
S1
S2
S3
Rev cent
+
trv
0%
0%
0%
100%
100%
100%
100%
100%
100%
0%
0%
100%
100%
100%
100%
S4
S5
S
e
r
v
o
t
r
a
v
e
l
C
e
n
t
r
e
a
d
j
u
s
t
m
e
n
t
S1
S2
S3
Rev cent
+
lim
0%
0%
0%
150%
150%
150%
150%
150%
150%
0%
0%
150%
150%
150%
150%
S4
S5
