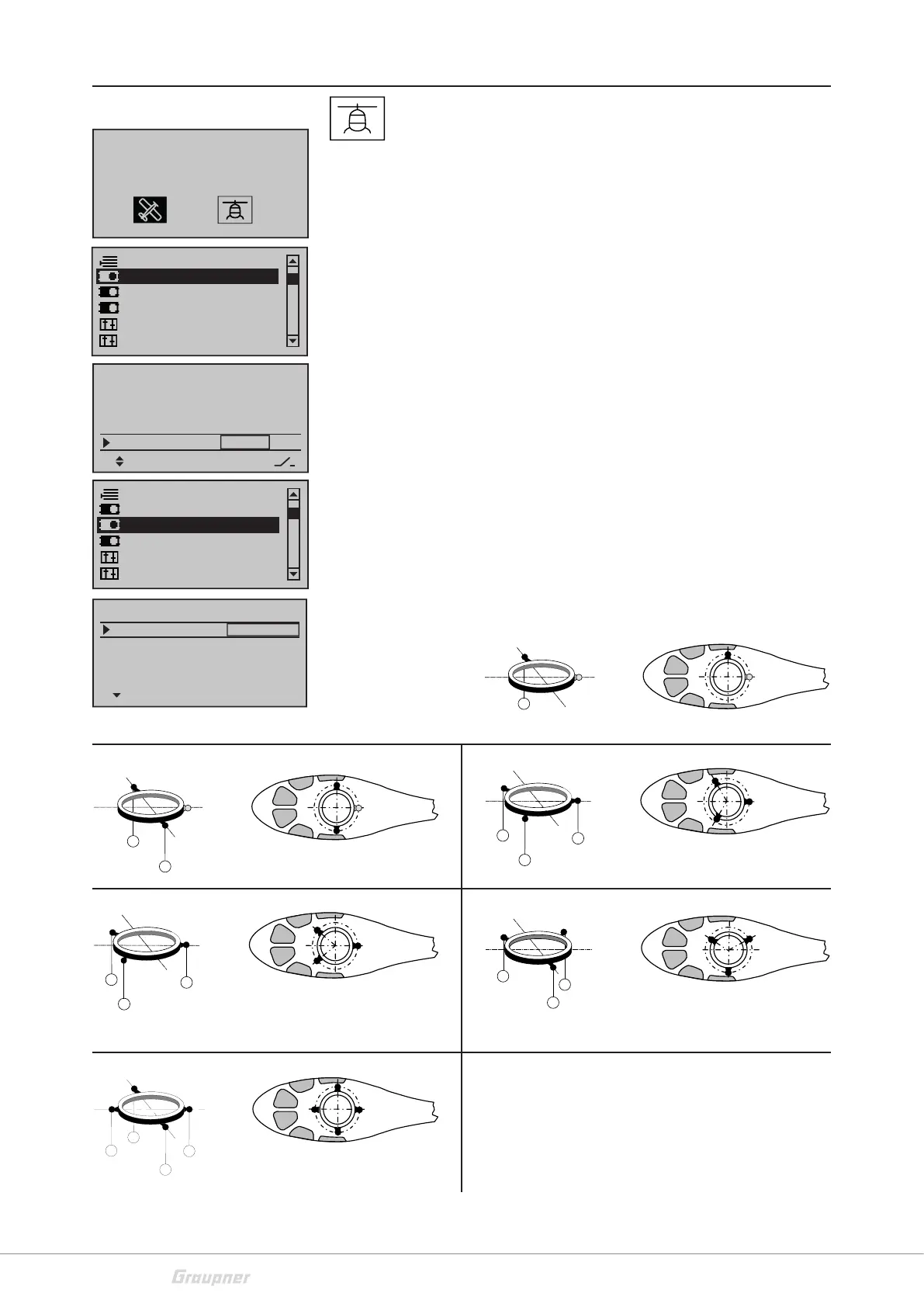

Heli programming
Select a free model memory from the "Model selection" menu and
define the model type with the "Heli" icon. This means that specific
functions for the heli programming are displayed in the following
menus. (Please also refer to the previous descriptions of the individ-
ual menus)
Programming step-by-step:
1. In the "Model basic settings" menu:
• Input the model name
• Select the desired control mode
• Assign the autorotation switch (autorotation)
• If necessary activate the autorotation throttle position
• M-stop switch as required for gas/glow engines
2. In the "Helicopter type" menu:
• Select the swash plate type. In flybarless systems, e.g. GR-18 and
GR-24 PRO basically 1 servo. For paddle head systems, select the
appropriate swash plate of the helicopter. Possible settings:
