• Swashplate linearization:
For Flybarless systems, select "no" here. In the case of paddle
head systems, the setting "yes" can prevent unwanted side
effects, such as pitch change when the roll function is activated
or tensions between the linkage of the swash plate servos.

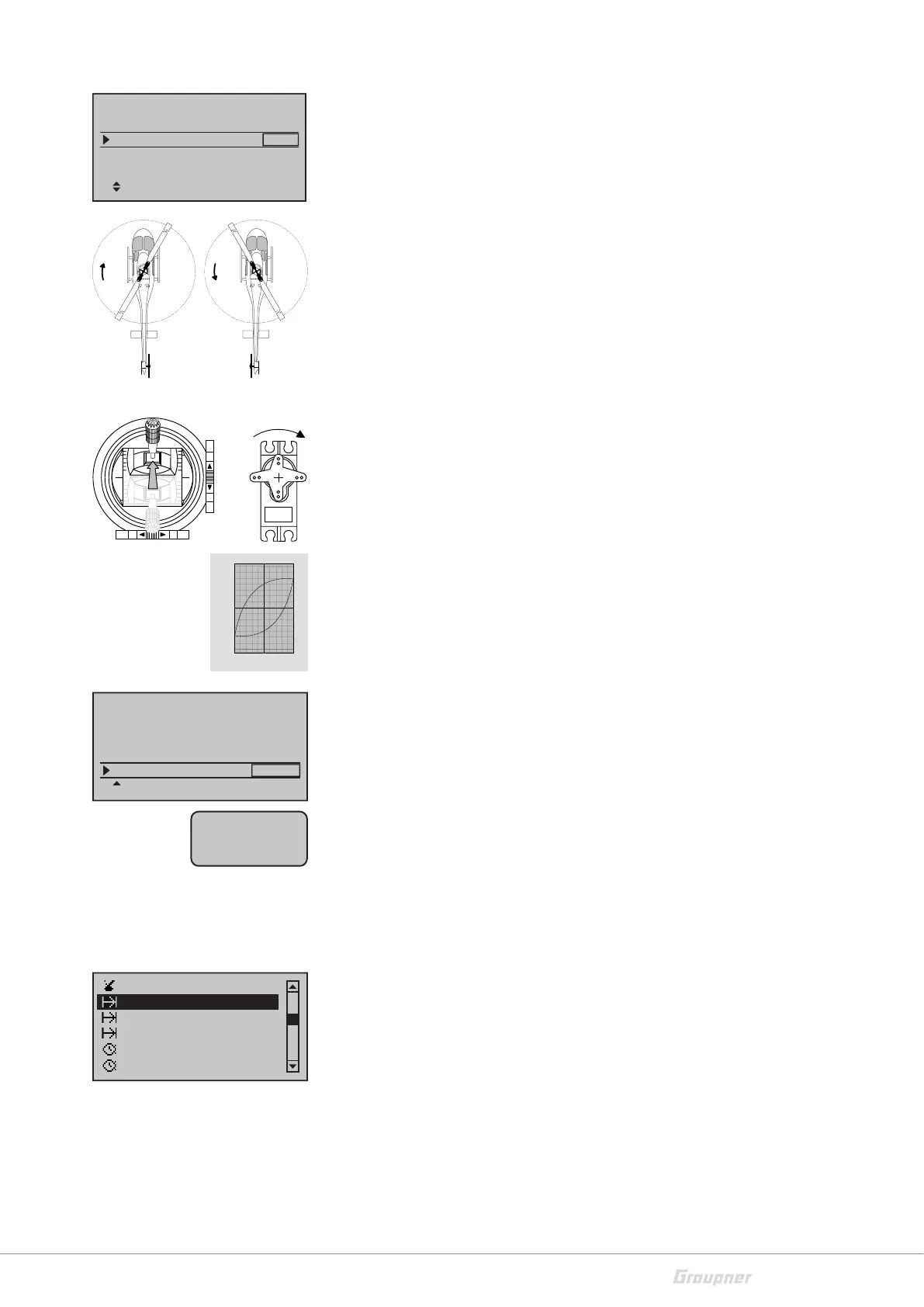

• Rotor direction:
Here you can set the direction of the rotor direction, seen from
above the helicopter (see figure). This information is required so
that the mixers can work properly for torque and power compen-
sation.
• Pitch min.:
Pitch min. Rear = pitch minimum is at the rear of the stick
Pitch min. Front = pitch minimum is at the front of the stick
From this setting depend the functions of all other options of the
helicopter program which involve the gas and pitch function.
Thus, for example, the throttle curve, idle trim, tail rotor, etc.
• Expo throttle limit:
An exponential curve characteristic can also be attributed to the
function "Throttle limit", which is described in the "Control set-
tings" menu. (see figure)
• Throttle limit warning:
Through the function "Throttle limit warning" you can set the
critical position of the throttle servo variable between 0 % and
-100 % above which this warning should be emitted. The pitch
minimum position of the stick, which is specified in this menu, is
the reference point of -70%.
3. Setting up a flybarless system:
• If you are using a Flybarless system, set it up now. Therefore
please refer to the instructions for the Flybarless system.
4. Phase setting menu (Phase setting):
• Phase 1 - Normal
• Phase 2 - Acro 3D
(Please also refer to the previous descriptions of the "Phase setting"
menu)
Linear. swashpl.
Swashplate
no
3Sv(2rol)
Rotor direct
right
Helicopter type
Pitch min. back
SEL
rechts-
drehend
links-
drehend
Thr
too
high!
Rotor direct.
right
Helicopter type
Pitch min. back
Expo thro lim. 0%
SEL
Thr.lim warning –70%
Phase settings
Phase assignment
Non-delayed chan
Announce
Timers (general)
Phase timers
