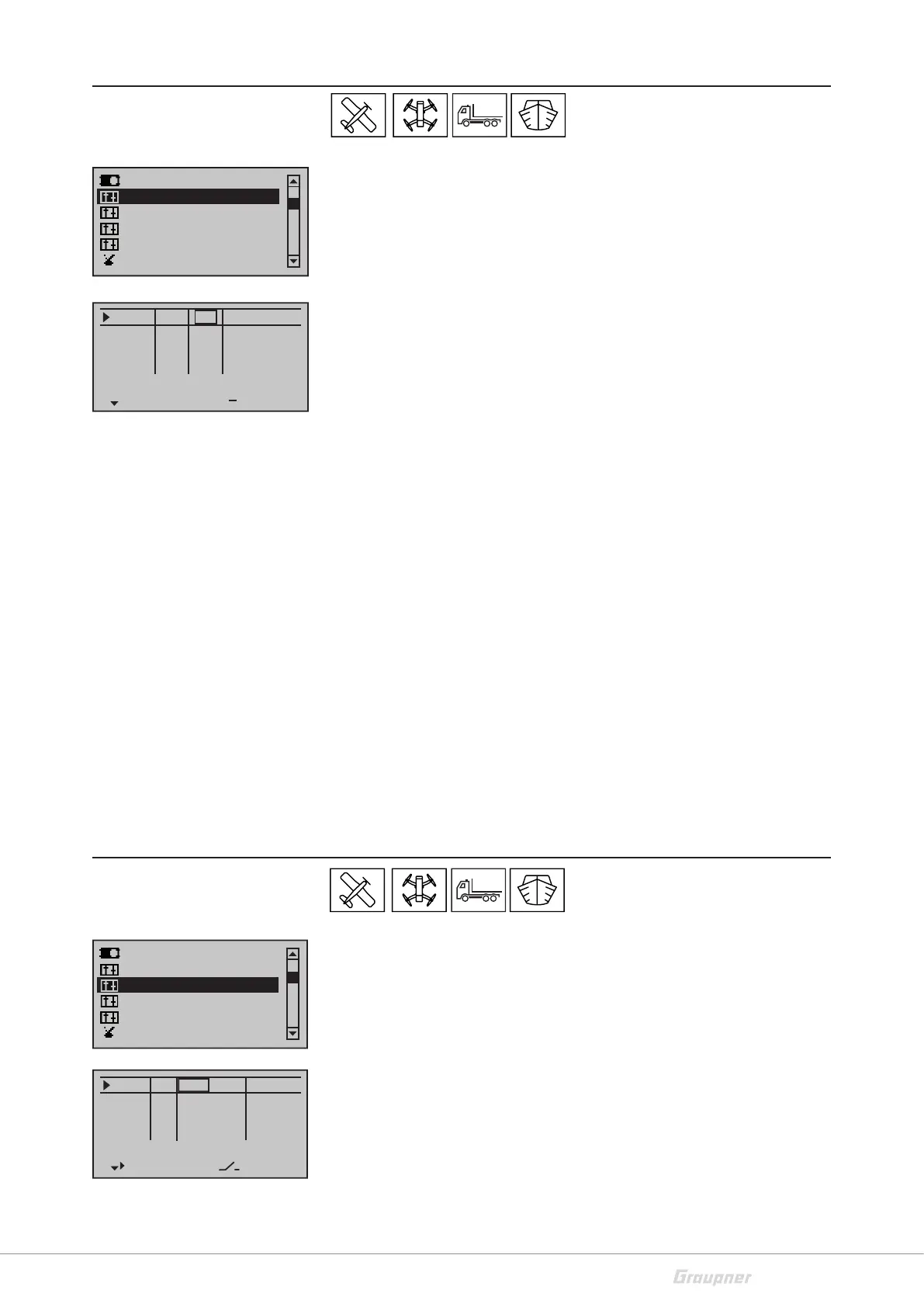

Sticks setting
In this menu you can set the step value of the trim and the control
speed. This settings are valid for the channels one to four. The chan-
nels are listed with their function in the first column, according to
the chosen model type.
Column "Tr"
In this column you can choose if the function has to act globally (GL)
or according to the phase (PH). (Not for "CH1"). In the main display
the related setting will be displayed through a shadow on the trim
columns.
Shadow = global
No shadow = according to the phase
Column "St"
Here you can set the step "width" of the trim (0 to 10)
The setting acts always globally, max ±30% of the servo travel.
Column "- time +"
In this column "Time" it is possible to set the movement speed for
each movement direction of the control sticks 1 to 4 individually. The
setting acts always globally.
Symmetrical setting of time:
Move the related control stick into a position in which both sides of
the time adjustment are surrounded by the marking frame.
Asymmetrical setting of time:
Move the related control stick into a position in which each single
side of the time adjustment is surrounded by the marking frame.
Controls setting
In this menu it is possible to assign the control elements (controls)
of the transmitter to the channels. It is only possible for channels 5
to 16, because the channels one to four are preassigned to the con-
trol sticks.
The other channels will be visible if you scroll down with the selec-
tion buttons.
The transmitter is supplied with switches, buttons and rotary encod-
ers that act separately on the channels.
If you scroll to the right with the selection buttons, other columns
will be visible.
