GRAUPNER mc-26

69 / 80
33028_mc_28_Teil2_jh

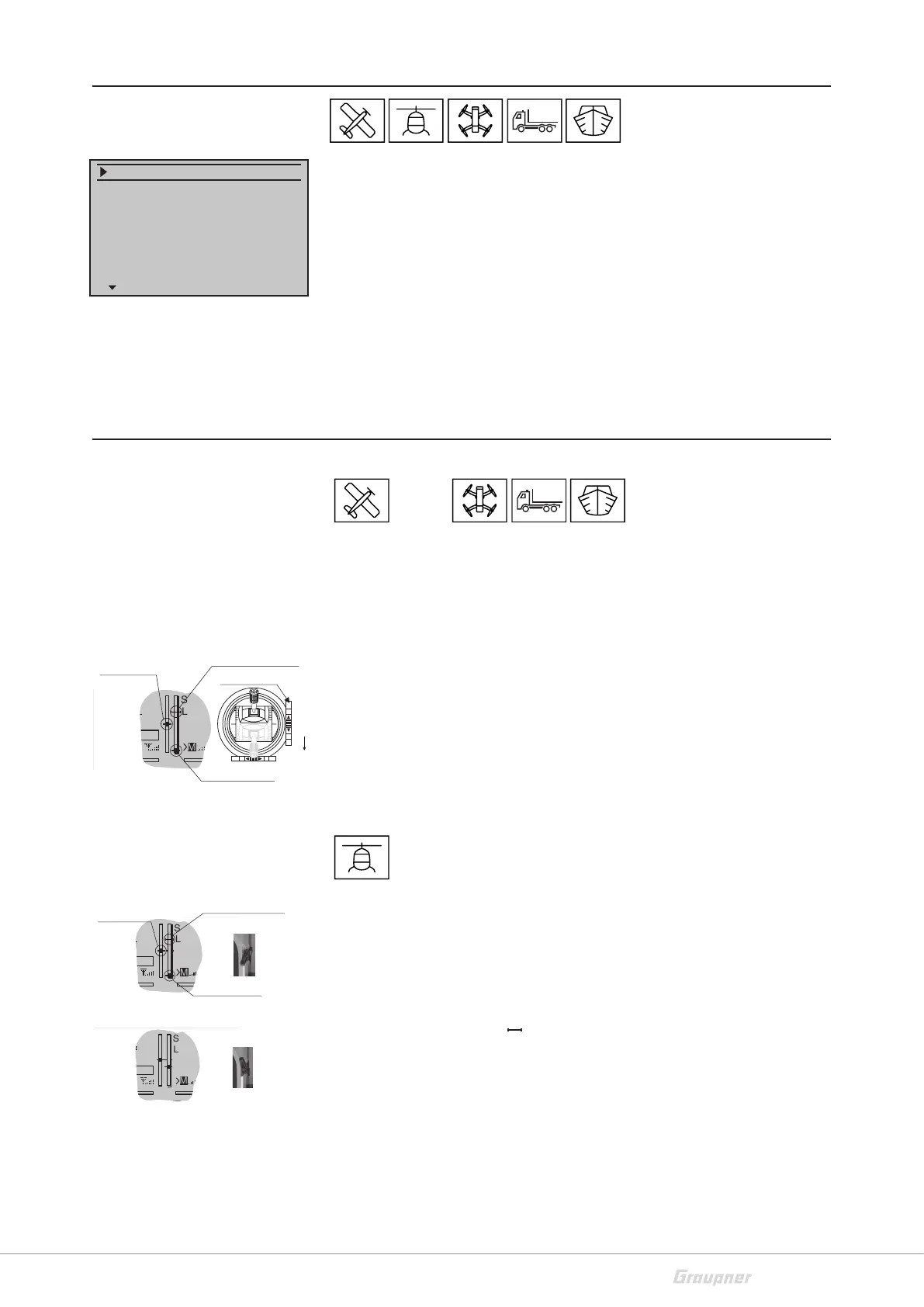

Info display
This menu shows information about the transmitter and the SD card.
The date and time can be set here.
RFID - Identity number of the transmitter
Firmware version - shows the version of the transmitter firmware
Dat. - Date (also used for log files)
Time - Time (also used for log files)
SD card - shows the capacity of the inserted SD card
Available - shows the free space on the SD card
Percentage display - used space as % of the SD card
Digital trim / Throttle switch-off trim (function)
A special function is integrated in the digital throttle trim, which
makes it easier to adjust the idle speed of an engine. This "switch-off
trim" is effective only in the range of -1 to -100% and only if the
"Model type" menu in the "Motor type CH1" line is entered front or
rear.
The throttle trim has a special "cut-off trim", which is intended for
engines. First set the motor to safe idle with the trim.
If the throttle trim is moved from this position to the end of the trim
travel in the "motor stop" direction, then a further marking remains
at the end position in the display.
Then simply push the trim once more in the "higher throttle" direc-
tion to reset the trim to the last idle setting.
With the model type "Heli", the throttle trim in combination with the
"throttle limit function" has a further property. As long as the throt-
tle limit control is in the range -1 to -100%, the throttle trim acts as
an idle trim on the throttle servo and the indication of the idle trim
is visible in the display.
The position indicator
( ) and also a predefined idle position are
dimmed when the throttle limit control is in the range 0 to + 100%.
The throttle trim works only on the throttle, not on the pitch servos.
Note also that the heli throttle servo must be connected to the out-
put 6 of the receiver.
RFID
firmware ver.
date
time
SD-CARD
available
1.234
3623MB
92%
ABCDEF12
2016/09/17(Sa )
18:19:20s
3896MB
GRAUBELE
#01
3:33h
S
L
K78
0:00
0:00
RX0.0V
5.2V
actual
trim position
last idle position
2.4
C1 trim lever
Idle direction
M
Trimming in
Motor-OFF position
GRAUBELE
#01
3:33h
S
L
K78
0:00
0:00
RX0.0V
5.2V
last idle position
2.4
M
Motor-OFF position
actual
trim position
Trimming in
Throttle limiter in start position
GRAUBELE
#01
3:33h
S
L
K78
0:00
0:00
RX0.0V
5.2V
M
2.4
Throttle limiter in release position
