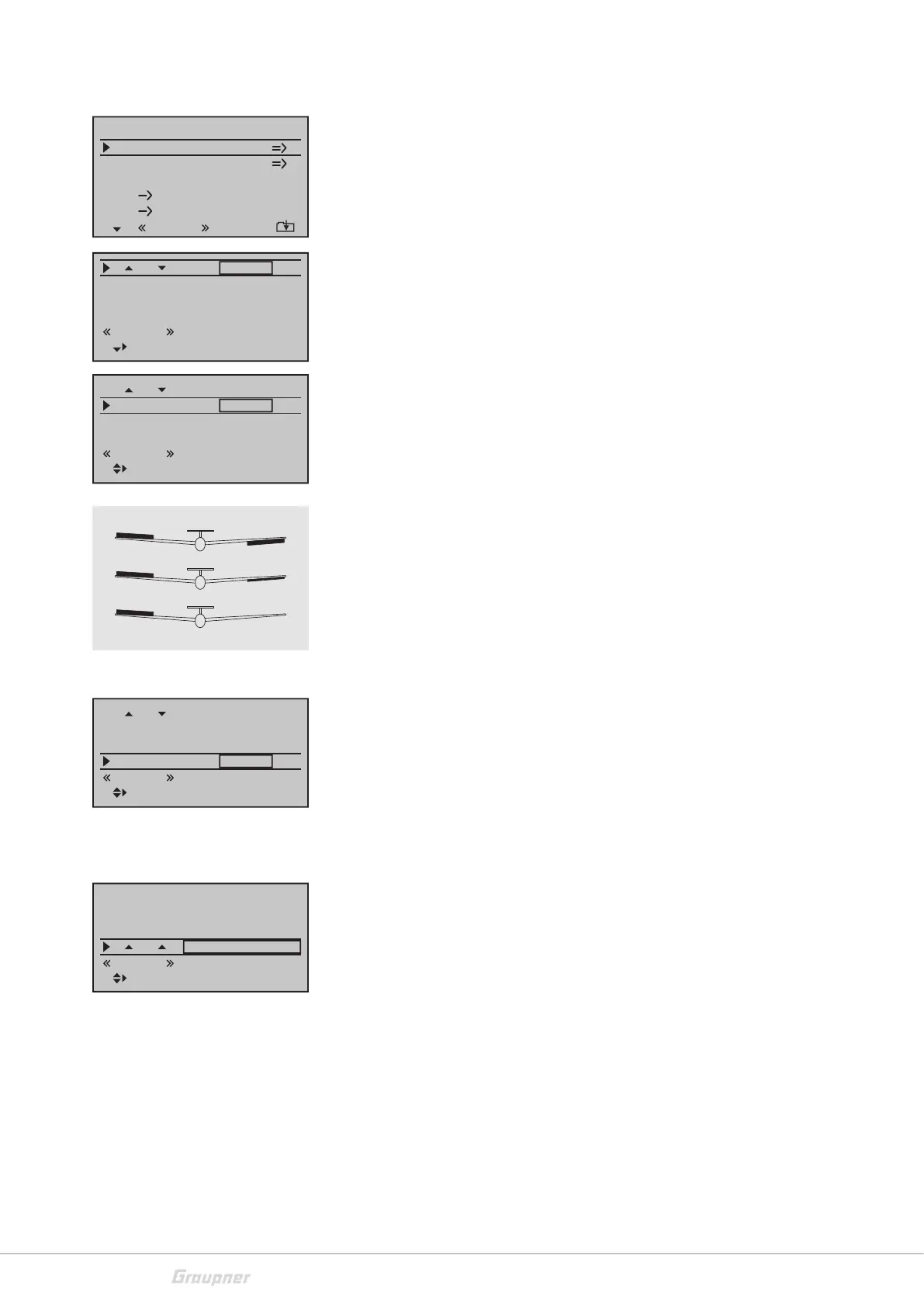

Multiflaps menu
This menu is only displayed if at least two ailerons and one flap or
more are selected in the "Model type" menu. The "AILE2" column
and the "FLAP" and "FLAP2" columns are available in this menu to
the right of the "AILE" column, depending on the number of pairs of
control surface specified in the »Model type« menu.
AILE (Aileron -> Flap)
In this line, you determine the phase-dependent control percentage
of actuation of "AILE", "AILE2", "FLAP" and "FLAP2". The setting
range of ±150 % makes it possible to appropriately adapt the deflec-
tion completely independently from the direction of the servos.
AILE Tr. (Aileron trim)
This line is dimmed when "2AILE 1FLAP" is selected in the "Model
Type" menu. In this line, you determine the phase-dependent trim
percentage of "AILE", "AILE2", "FLAP" and "FLAP2". The adjustment
range is ±150% related to the adjustment range of the trim controls.
Diff. (Differentiation of the aileron function)
When selecting "2AILE 1FLAP" in the "Model Type" menu, this line is
one level higher in the "Wing Mix" menu. In this line you set the aile-
ron differentiation and the differentiation of the FLAP and FLAP2, if
the flaps are operated as ailerons. The adjustment range of ± 100%
makes it possible to set the correct differentiation direction com-
pletely independent of the rotational directions of the ailerons and
flaps servos.
FLAP Pos. (FLAP position)
Here, you can set the phase-specific flap positions for all the flaps on
the respective model. The adjustment range of ± 100% makes it pos-
sible to move the flaps to the desired position, regardless of the
direction of rotation of the ailerons and flaps servos.
Changes in the menu "Phase trim" and changes in the line "FLAP
Pos" therefore always have a direct effect on each other.
FLAP (Effect of the Flap control)
In this line, you can specify the percentage of the input 6 settings in
the "Control settings" menu, also depending on the phase, that has
to act to the control surfaces positions of the ailerons and flaps. A
symmetrical or an asymmetrical effect can be defined for each flap
pair. Set the related control in the middle or the related side.
Aile diff.
Brake settings
0%
AI
0%
Wing mixers
FL EL 0%0%
–––
–––
RU
Multi-flap menu
Normal
0%
FL pos.
AI
Normal
Diff.
0%
AI Tr.
AI
+100%
+100%
0%
FL pos.
AI
Normal
Diff.
0%
AI Tr.
AI
+100%
+100%
0% (normal)
50% (differential)
100% (Split)
0%
FL pos.
AI
Normal
Diff.
0%
AI Tr.
AI
+100%
+100%
FL
0%
0%
FL pos.
0%
AI
Normal
Diff.
0%
AI Tr.
+100%
