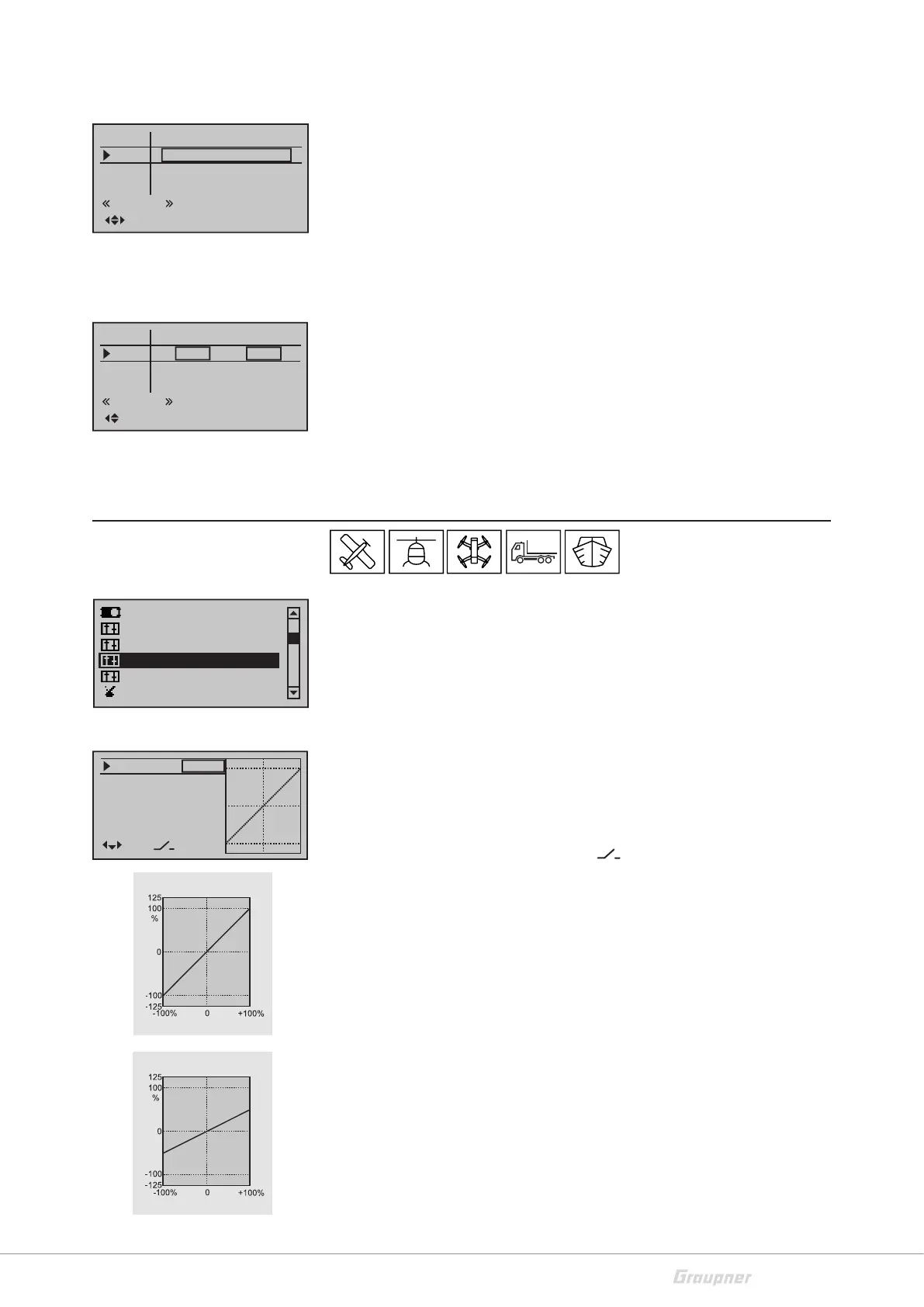

"- Trv +"
You can reach the column by moving the marking frame with the
selection buttons over the "Offset" column to the right side.
In this column you can set the control travel for both sides, together
or separated for each side. The setting range is 0 … 150% of the nor-
mal control travel. The set values always refer to the settings in the
column "Centre". Perform a symmetrical or asymmetrical setting as
described in the "Offset" section.
"– Time +"
You can reach the column by moving the marking frame with the
selection buttons over the "Trv" column to the right side.
In this column, a time delay is set for the respective channel. The set
seconds indicate the time that elapses between the switching states.
If the encoder or switch is actuated, the switching process then runs
in the set time. Perform a symmetrical or asymmetrical setting as
described in the "Offset" section.
Dual Rate / Expo
In this menu you can set the options Dual Rate and Expo.
Dual Rate
With this option you can reduce the travel of each control function.
This reduction is activated through a switch or, if no switch is assigned,
it will be always active. The graphical representation to the right
shows the control path profile for the selected control function.
Setting the Dual Rate step-by-step:
• Select the line of the desired control function
• Assign the switch in the column
(process as described in the
section "Control settings")
• Input the reduction value in the column SEL
Now you can use the selected switch to pass from reduced control
travel to full control travel.
If the function has to be assigned specifically to the phase, the
related phase must be active. In the second line from the bottom of
the display will be shown the phase name.
In5
– trv +
+100%
+100%
+100%
+100%
In6
In7
In8
+100%
+100%
+100%
+100%
Normal
In5
– time +
0.0s
0.0s
0.0s
0.0s
In6
In7
In8
0.0s
0.0s
0.0s
0.0s
Normal
Servo adjustment
Stick mode
Channel 1 curve
Switch display
Control adjust
Dual Rate / Expo
100%
100%
100%
Ail
Ele
Rud
DUAL
–––
–––
–––
SEL
Servo travel
Control travel
Control travel
Control travel
Dual Rate = 100%
Dual Rate = 50%
Dual Rate = 20%
Servo travel
Servo travel
Control travel
Control travel
Control travel
Dual Rate = 100%
Dual Rate = 50%
