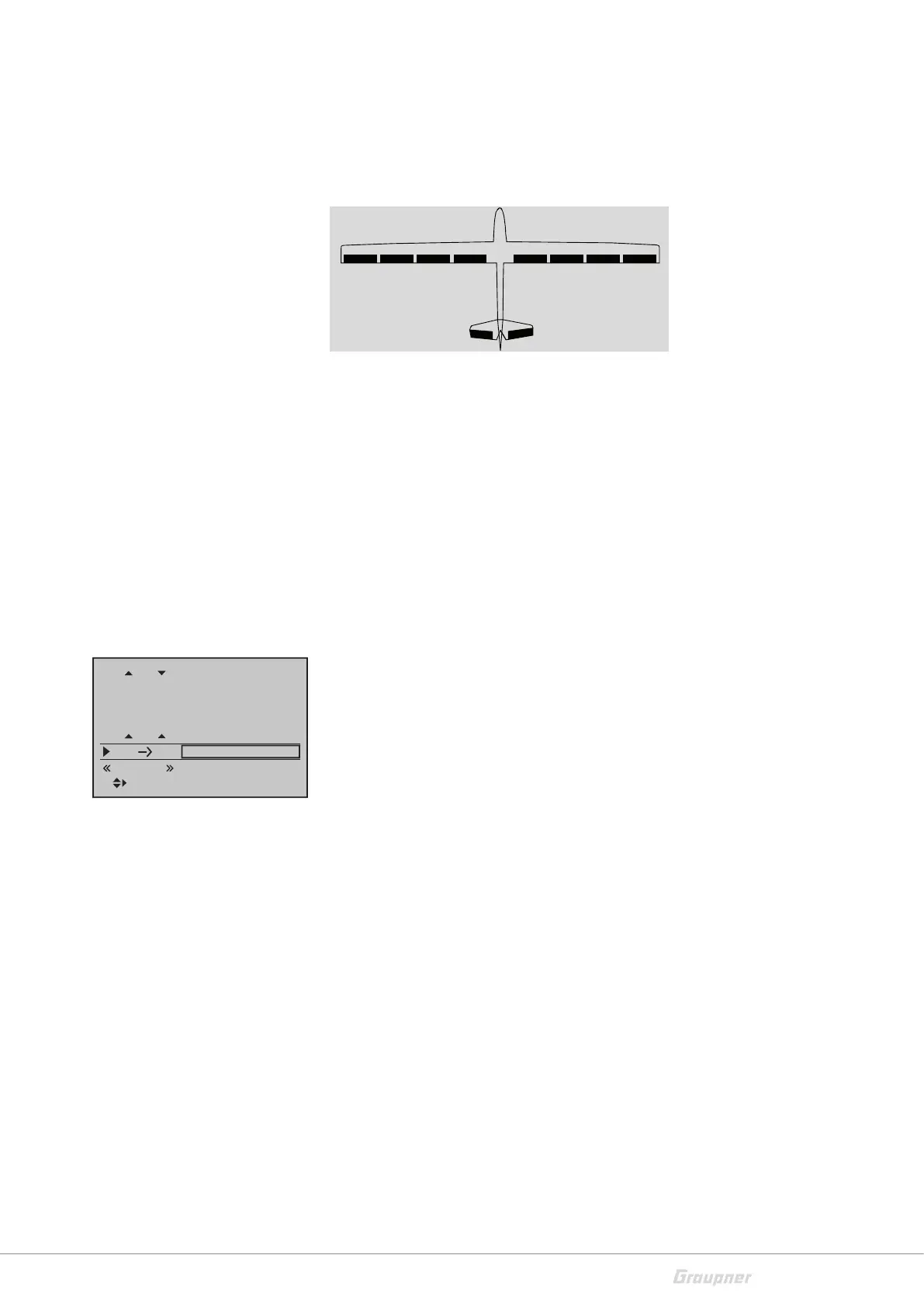

Model type: "4AIL 4FLAP"
If the servos are connected to the receiver as described in the sec-
tion "Receiver assignment" and if you have selected in the "Model
type" menu, the abbreviations "AILE", "AILE2", "FLAP" and "FLAP2"
refer to the following flaps.
With this setting, all options for the pair of ailerons and, after a "step"
to the right, the options of the second pair of ailerons are displayed.
However, it is possible to switch to the "FLAP" and "FLAP2" column
on the right.
Model types Delta-wing/Flying-wing with more than 2 rudders
If you have selected the control type "Delta-wing/Flying-wing" and
the number of control surfaces in the line "Aileron/Flaps" of the
"Model type" menu, the two ailerons normally move, by actuating
the elevator control stick, as little as the inner flaps (FLAP) and FLAP2.
The reason for this is the mixer "ELE -> FLAP" with its standard mixing
ratio set to 0% when more than 2 wing servos are selected in the
"multi-flap menu".
The desired elevator effect must be defined in the line "ELE -> FLAP".
Be sure to use the correct operation of up/down.
The submenu "Brake settings" is also suitable for setting a butterfly
function for delta-wing/Flying-wing models. The adjustment of the
deflections of the actually used flap pairs AILE, AILE2, FLAP and
FLAP2 must be adjusted in such a way that the moments eventually
generated by the arising of one flap pair are compensated by the
respective other flap pair. Thus, for example, a "low" effect of the
lowered flaps is opposed to compensate the "high" effect of the
raised aileron.
AI
left
AI2
left
FL
left
FL2
left
FL2
right
FL
right
AI2
right
AI
right
FL
0%
0%
FL pos.
EL FL 0%0%
0%
AI
Normal
Diff.
0%
AI Tr.
AI
+100%
+100%
