The options available in the Wing mix menu and its submenus
depend on the number of ailerons and flaps servos specified in the
"Model type" menu. Only the necessary setting options are available
at all times.
With this setting, all options for the pair of ailerons and, after a "step"
to the right, the options of the pair of flaps are displayed. However,
it is not possible to switch to another column to the right, but to the
"FLAP2" column.

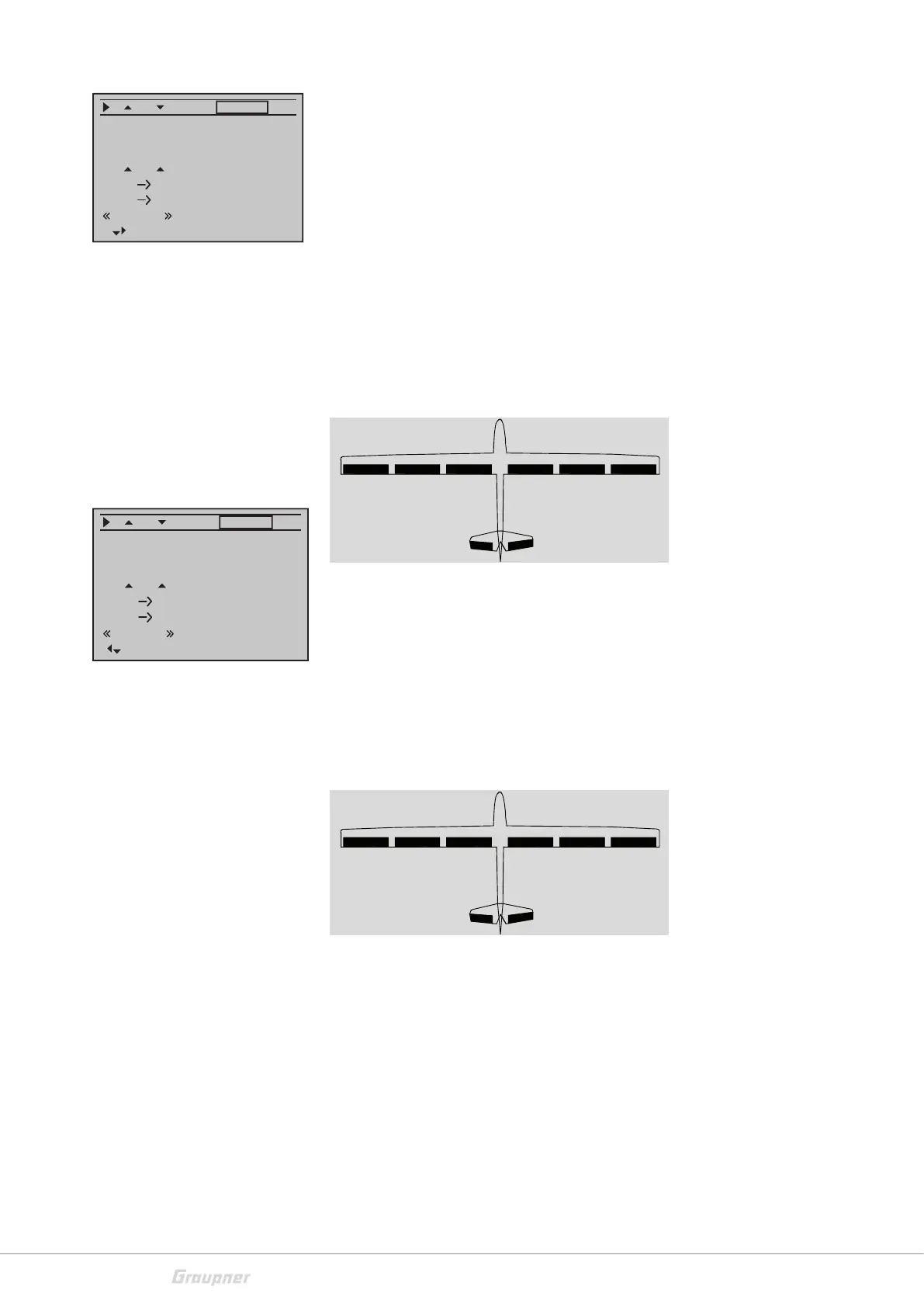

Model type: "2AIL 4FLAP"
If the servos are connected to the receiver as described in the sec-
tion "Receiver assignment" and if you have selected in the "Model
type" menu, the abbreviations "AILE", "FLAP" and "FLAP2" refer to
the following flaps.
With this setting, all options for the pair of ailerons and, after a "step"
to the right, the options of the pair of flaps are displayed. However,
it is possible to switch to the "FLAP2" column on the right.
Model type: "4AIL 2FLAP"
If the servos are connected to the receiver as described in the sec-
tion "Receiver assignment" and if you have selected in the "Model
type" menu, the abbreviations "AILE", "AILE2" and "FLAP" refer to
the following flaps.
With this setting, all options for the pair of ailerons and, after a "step"
to the right, the options of the second pair of ailerons are displayed.
However, it is possible to switch to the "FLAP" column on the right.
FL
0%
0%
AI Pos.
EL FL 0%0%
0%
AI
Normal
Diff.
0%
AI-Tr.
AI
+100%
+100%
EL FL Off.
0%
–––
AI
left
FL
left
FL2
left
FL2
right
FL
right
AI
right
FL
0%
+100%
FL Pos.
EL FL 0%0%
+100%
FL2
Normal
Diff.
0%
AI Tr.
AI
0%
0%
EL FL Off.
0%
–––
AI
left
AI2
left
FL
left
FL
right
AI2
right
AI
right
