Model types with "2/4AIL 1/2/4FLAP"
Regardless of the selected combination of ailerons and flaps, all
available parameters can be changed depending on the phase.

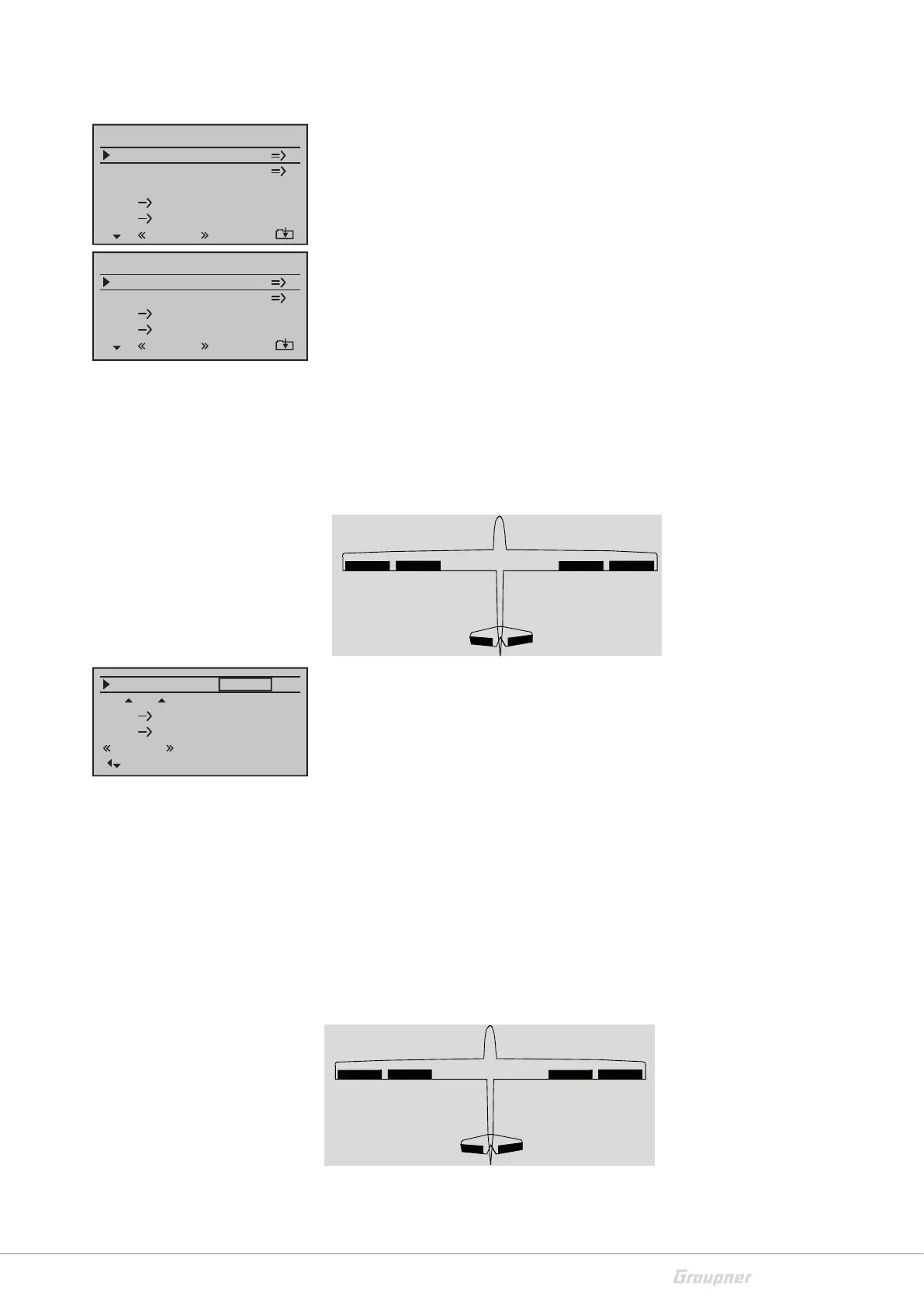

If you have entered "2AIL 1FLAP" in the "Aile/Flap" line of the "Model
type" menu, the "Mixer menu" of your transmitter corresponds to
the figure on the left.
If you have entered "2/4AIL 2/4FLAP" in the "Aile/Flap" line of the
"Model type" menu, the "Wing mix" menu of your transmitter cor-
responds to the figure on the left.
Model type: "2AIL 1FLAP"
If the servos are connected to the receiver as described in the sec-
tion "Receiver assignment" and if you have selected in the "Model
type" menu, the abbreviations "AILE" and "FLAP" refer to the follow-
ing flaps.
The options available in the Wing mix menu and its submenus
depend on the number of ailerons and flaps servos specified in the
"Model type" menu. Only the necessary setting options are available
at all times.
With this default setting, only one change to the right is possible by
one column to the right, to the "FLAP" column.
The line "Ail.diff." (Aileron differentiation) is not arranged as in
"2/4AIL 2/4FLAP" in the "multi-flap menu", but one level higher in
the "Wing mix" menu.
Model type: "2AIL 2FLAP"
If the servos are connected to the receiver as described in the sec-
tion "Receiver assignment" and if you have selected in the "Model
type" menu, the abbreviations "AILE" and "FLAP" refer to the follow-
ing flaps.
Aile diff.
Brake settings
0%
AI
0%
Wing mixers
FL EL 0%0%
–––
–––
RU
Multi-flap menu
Normal
Brake settings
AI
0%
Wing mixers
FL EL 0%0%
–––
–––
RU
Multi-flap menu
Normal
Aile
left
Flap Flap Aile
right
FL
+100%
FL Pos.
EL FL 0%0%
+100%
FL
Normal
0%
EL FL Off.
0%
–––
Aile
left
Flap
left
Flap
right
Aile
right
