Required receiver settings:
In the "SETTINGS & DATAVIEW" menu set "20 ms".
In the "SETTINGS & DATAVIEW" menu set "SAME".
The control channel in use should not be used either as an input or
as an output channel of a mixer.
In the "Multi- channel" menu of the transmitter set:
Activate the "SET" column of the multichannel
Assign the channel in the column "SEL"
Select the type of the multichannel (4CH or 8CH) in the "SEL" column
Assign a control or a switch in the column "=>" of the following dis-
play
In the multichannel selection display
Select a switch in the "STO" column
Assigning the switch in the column "
"
Set the offset value in the "Offset" column
The selection keys to the right beyond "Offset" appears "- Travel +".
Here limit the travel of the channel
Multichannel use example
Input2
Input3
Multichannel 1
SEL Offset
Input1
Input4
–––
0%
––– 0%
––– 0%
––– 0%
fr
fr
fr
fr
Input2
Input3
Multichannel 2
SEL Offset
Input1
Input4
–––
0%
––– 0%
––– 0%
––– 0%
Input5 ––– 0%
Input6
––– 0%
Input7
––– 0%
Input8
––– 0%
fr
fr
fr
fr
fr
fr
fr
fr
Input2
Input3
Multichannel 1
– Trv +
Input1
Input4
+100%
+100%
+100%
+100%
+100%
+100%
+100%
+100%
M
6 (Selection: 5 ... 8)
5 (Selection 5 ... 8)
(Receiver battery to the ports
marked with „B + -“ )
Before starting to use the NAUTIC modules, make the settings described above.
No. 4159
Max. 8 x 0,7 A
Batt. 3...30V
NAUTIC - Expert
Switch module
2 - 16 C
Receiver
1- H -2
1- G -2
1- F -2
1- E -2
1- D -2
1- C -2
1- A -2
1- B -2
Best.-Nr. 4142.N
1/4 K
NAUTIC
Multi-Prop-
Mini-Decoder
RX
S 4
S 3
S 2
S 1
external power
supply 3 ... 30 V
- +
+
-
Power consumption of directly connected
devices (but not electric motors)
each max. 0,7 A (a total of max. 8 x 0,7 A).
Wiring for direct connection of two loads to one output
Three-wire cable with flat connector No. 3941.6
red
brown
orange
Device
max. 0,7 A
Device
max. 0,7 A
Other modules such as, e.g. ...
Switch module Heavy-duty SXH No. 3970
Switch module Multi function SXM No. 3971
Switch module Heavy-duty
SXH No. 3970
Switch
module
SXH
Switch
module
SXM
Switch module Multi-function
SXM No. 3971
Soundswitch
No. 2382
Light module
No. 2381
7 (Selection: 5 ... 8)
8 (Selection: 5 ... 8)
other servos, governor,
winch, ... also possible
in this side

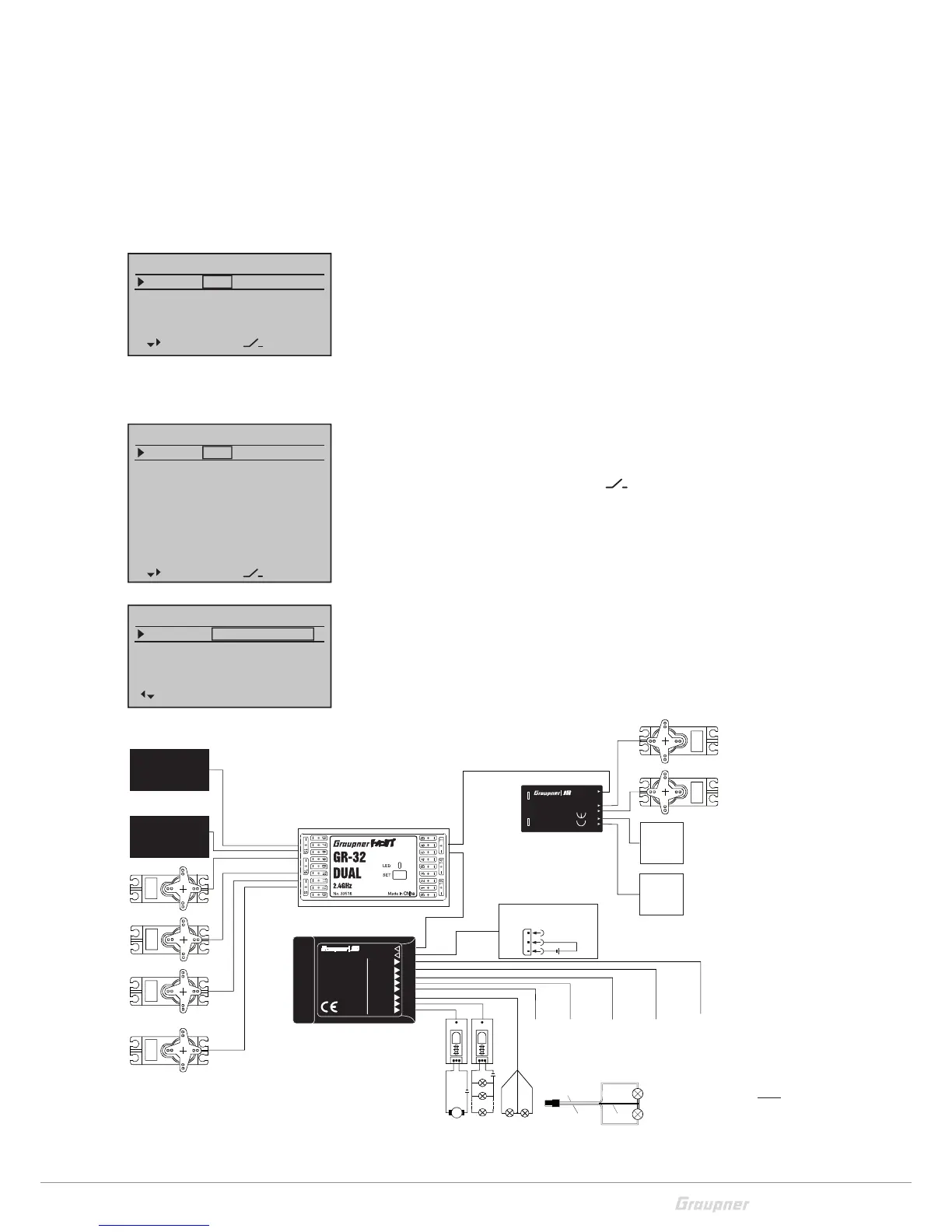

The figure shows the connection possibilities of the modules "2-16 C
NAUTIC-Expert Switch Module", "1/4 C-NAUTIC Multi-Prop Mini Decoder",
"Light Module" and "Soundswitch". Two of these modules can be operated
in parallel through the »Multi- channel« menu.
