MALFUNCTION INSPECTION CU800 Service Manual
125

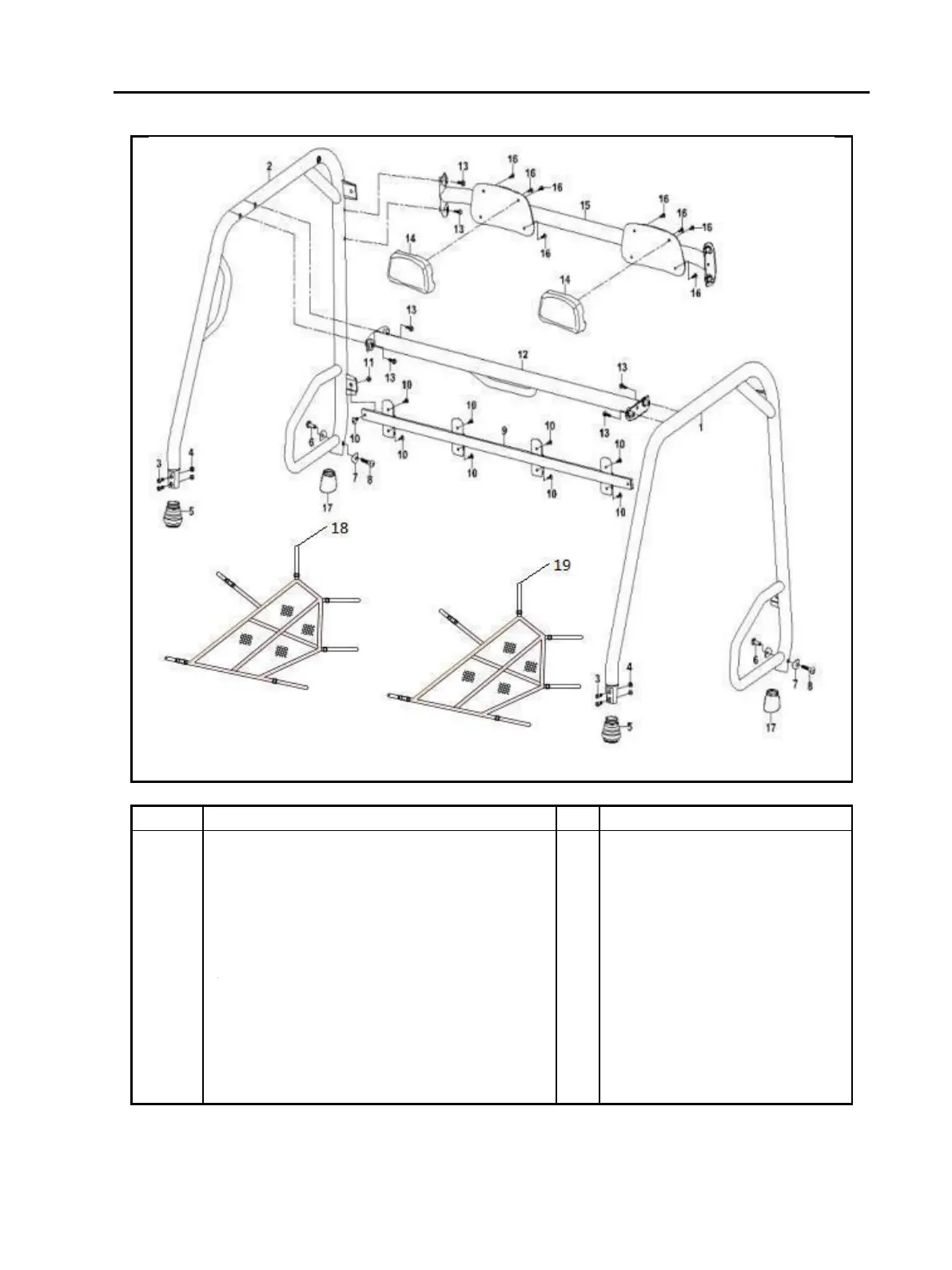

Head Shed Frame
No.
Part Name
Qty
Remarks
Removing the head shed frame
1
Roof Rod I:GLB Black
1
Roof Rod I:GLB Green
1
2
Roof Rod II:GLB Black
1
Roof Rod II:GLB Green
1
3
Socket Hexagon Head Screw M10×1.25×
45
4
4
Hexagon Flange Locked Nut M10×1.25
4
5
Joint Sheath C, Roof Rod
2
6
Hexagon Nut M8×25
2
7
Curve Pad
4
8
Inner Hexagon Cone Step Bolt M8×38
2
