Cross Recessed Pan Head Tapping Screw St4.2×13
4
23
Split Pin 2×25
2
24
Socket Hexagon Screw M6×20
11
25
Plain Washer 6
10
26
Rubber Cusion
2
27
Washer 8.5×Φ28×1.5
10
28
Socket Hexagon Screw M6×16
6
29
Rear Reflector
2
30
Hexagon Flange Nut M6
2
31
Rear Left Reflector
1
32
Rear Right Reflector
1

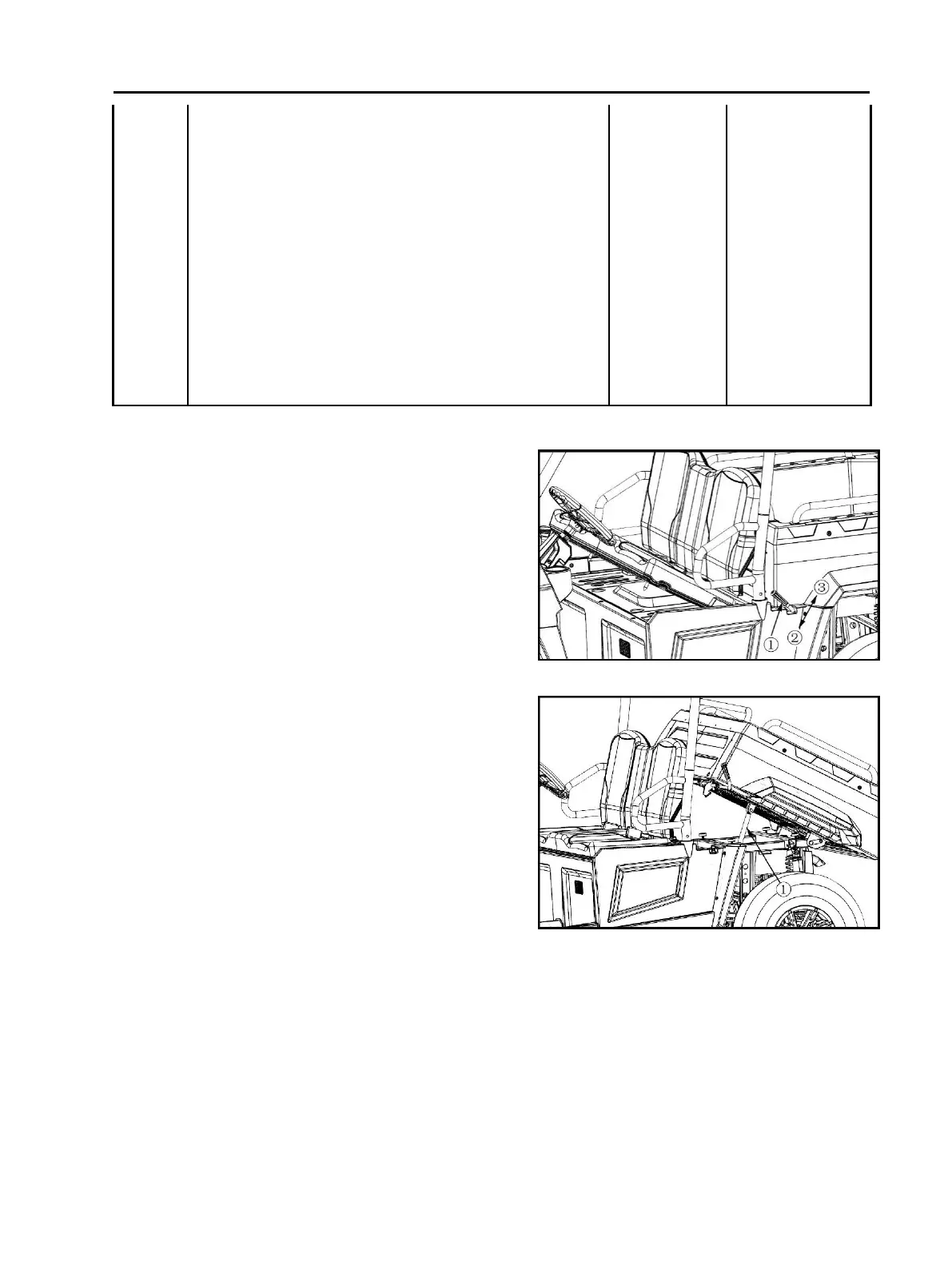

5.1.3 Raising and Lowering the Cargo Bed
To raise the cargo bed
• Apply the parking brake with the engine off.
• Pull up the cargo bed handle.
To lower the cargo bed
Press down the cargo bed hard to make the gas
spring contractive till it is locked.
① Cargo bed handle
② Down
③ Up
① Gas spring
NOTE
Pull up the cargo bed handle to raise the cargo bed
with the gas spring elasticity.
