5.2.3 Disassemble Steering
Column

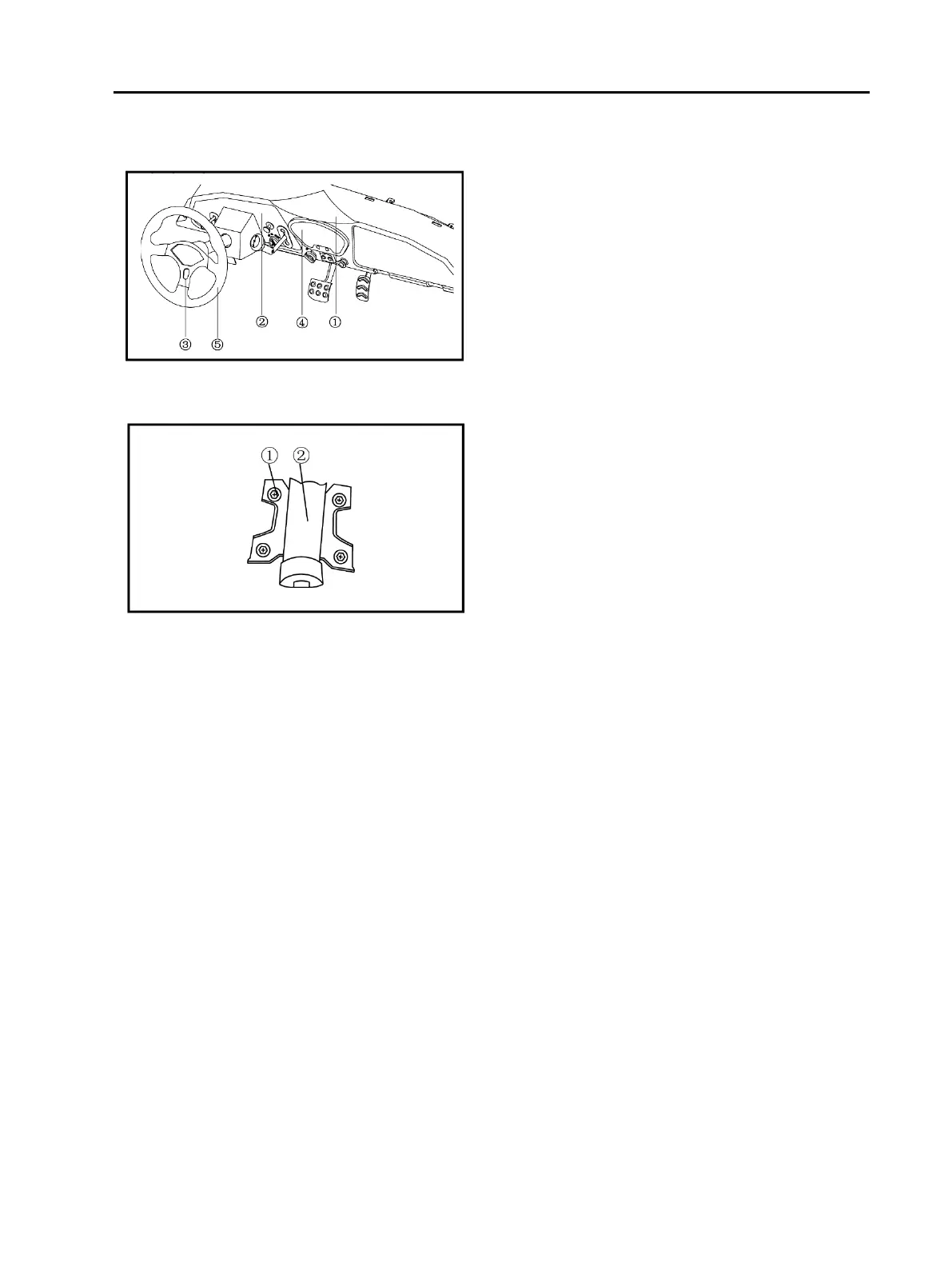

Remove:
• engine cover ①
• connection covers part ②
• steering wheel cover ③
• display board ④
• steering wheel ⑤
a. Takes down the parts of the front panel and the
connection covers part and the display board
and the steering wheel center covers
b. Take down the steering wheel
• bolt ①
• steering shaft ②
c. Loose the bolt which is on the steering drive
axle, the top of spline, draws out the cross
gimbal.
d. Loose the fastening two pieces M8×13.5 bolt on
the steering shaft, take down the steering shaft
from the frame.
• Steering wheel ④
Inspect fastens nut of the steering wheel whether
does have flaw and fissure, if it is, must replace.
Check the internal spline between the steering
wheel and steering column whether have
damaged, if the attrition is serious, must replace
the steering wheel.
NOTE
The tolerance clearance between the internal
spline on the steering wheel and outer spline on
the steering column is smaller than 0.1mm.
WARNING
If find some problems in the check, it should be
service immediately to ensure the normal work of
the steering system.
