5.5.3 Assembling Universal Joint

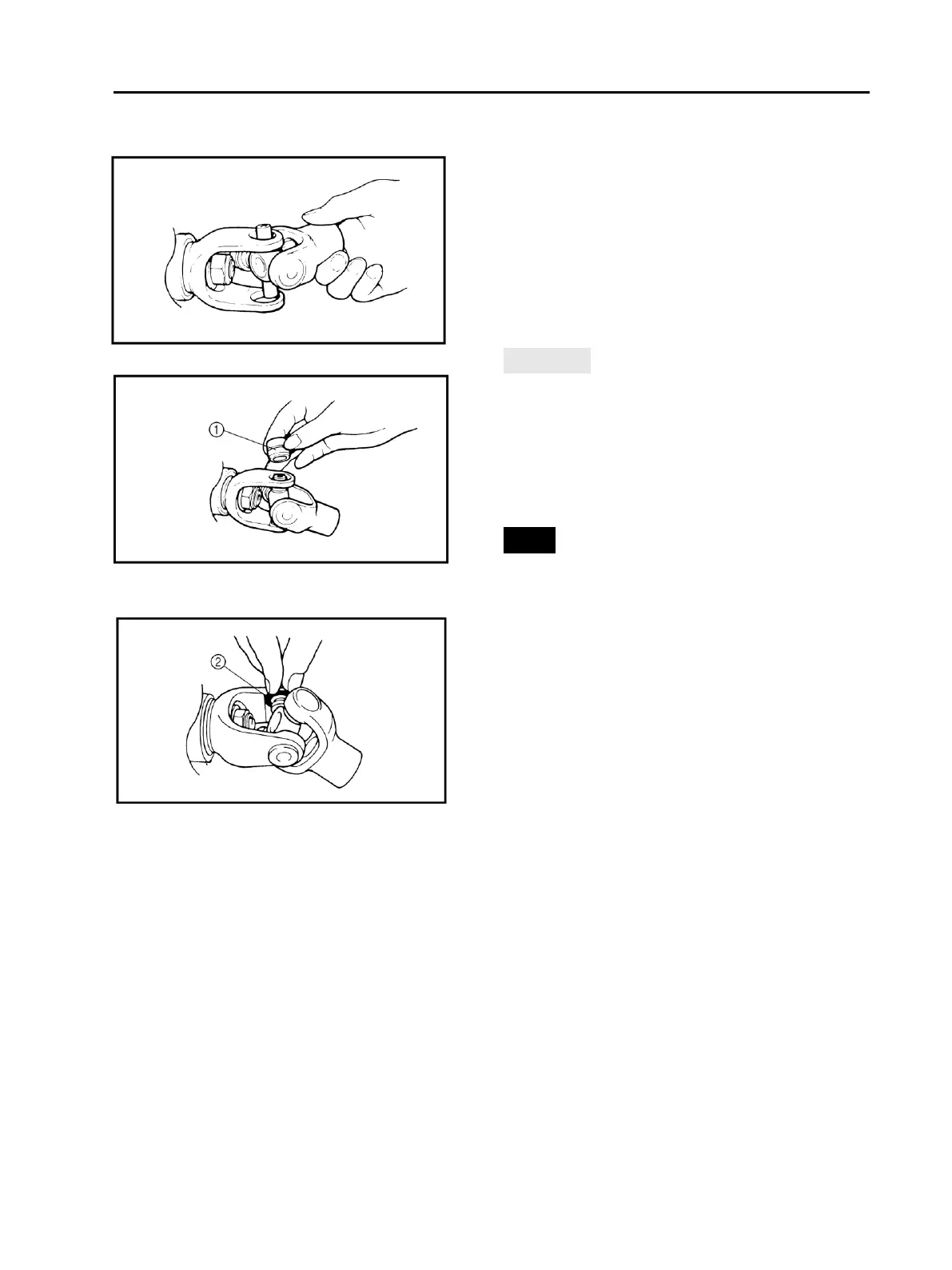

Install:
• universal joint
a. Install the opposite yoke into the universal
joint.
b. Apply wheel bearing grease to the bearings.
c. Install the bearing ① onto the yoke.
d. Press each bearing into the universal joint
using a suitable socket.
CAUTION:
Check each bearing. The needles can easily
fall out of their races. Slide the yoke
back and forth on the bearings; the yoke
will not go all the way onto a bearing if a
needle is out of plate.
NOTE
The bearing must be inserted far enough into
the universal joint so that the circlip can be
installed.
e. Install the circlips ② into the groove of each
bearing.
