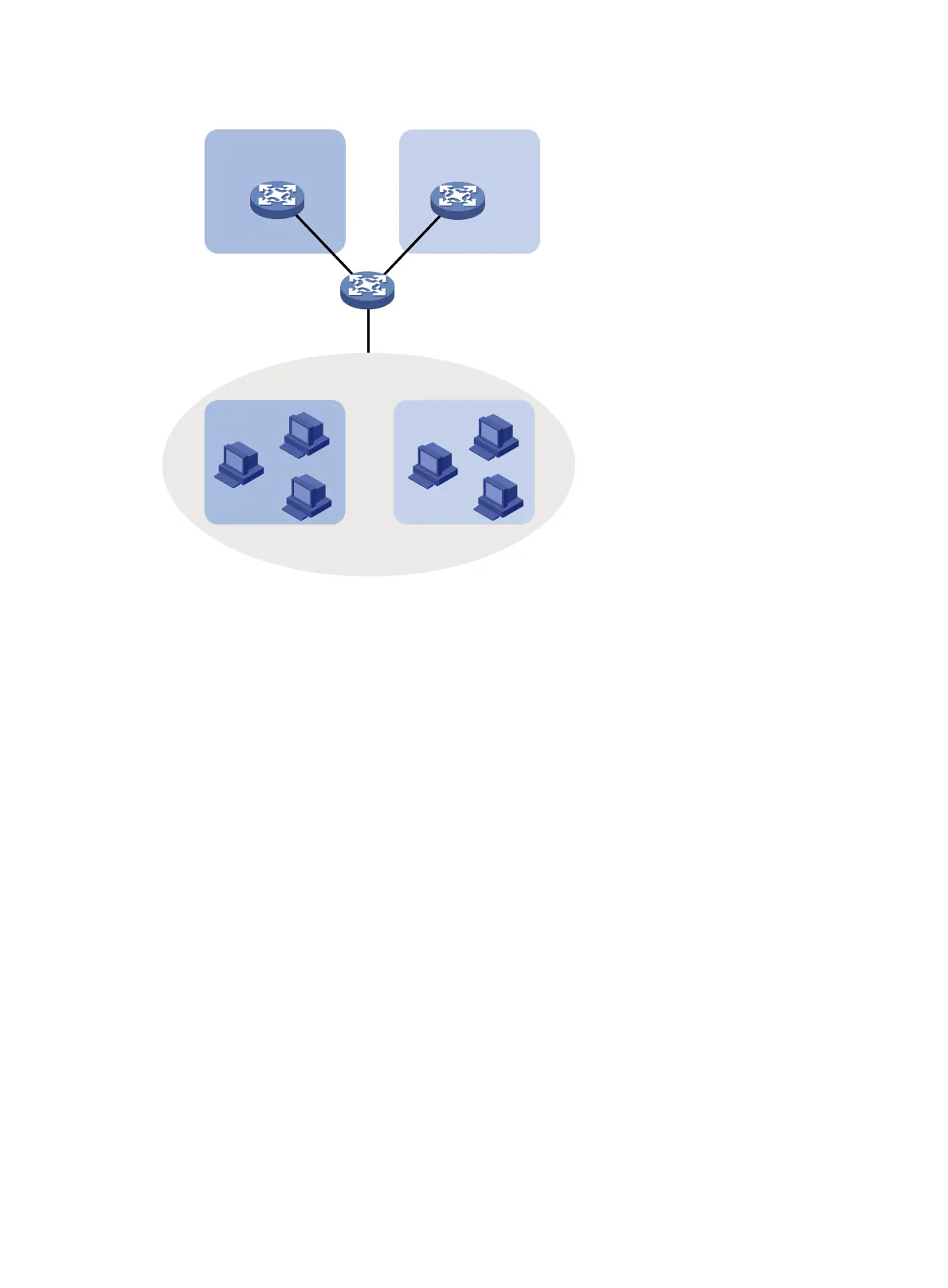

Figure 5 Network diagram
Procedure
1. Configure Device C:
# Associate IP subnet 192.168.5.0/24 with VLAN 100.
<DeviceC> system-view
[DeviceC] vlan 100
[DeviceC-vlan100] ip-subnet-vlan ip 192.168.5.0 255.255.255.0
[DeviceC-vlan100] quit
# Associate IP subnet 192.168.50.0/24 with VLAN 200.
[DeviceC] vlan 200
[DeviceC-vlan200] ip-subnet-vlan ip 192.168.50.0 255.255.255.0
[DeviceC-vlan200] quit
# Configure Twenty-FiveGigE 1/0/2 as a hybrid port, and assign it to VLAN 100 as a tagged
VLAN member.
[DeviceC] interface twenty-fivegige 1/0/2
[DeviceC-Twenty-FiveGigE1/0/2] port link-type hybrid
[DeviceC-Twenty-FiveGigE1/0/2] port hybrid vlan 100 tagged
[DeviceC-Twenty-FiveGigE1/0/2] quit
# Configure Twenty-FiveGigE 1/0/3 as a hybrid port, and assign it to VLAN 200 as a tagged
VLAN member.
[DeviceC] interface twenty-fivegige 1/0/3
[DeviceC-Twenty-FiveGigE1/0/3] port link-type hybrid
[DeviceC-Twenty-FiveGigE1/0/3] port hybrid vlan 200 tagged
[DeviceC-Twenty-FiveGigE1/0/3] quit
# Configure Twenty-FiveGigE 1/0/1 as a hybrid port, and assign it to VLANs 100 and 200 as an
untagged VLAN member.
Device A
Device B
Office
Device C
VLAN 100 VLAN 200
WGE1/0/1
WGE1/0/2 WGE1/0/3
192.168.5.0/24 192.168.50.0/24
