{ Sub-VLANs cannot communicate with each other at Layer 3.
{ Local proxy ND is disabled.
For more information about local proxy ND, see Layer 3—IP Services Configuration Guide.
Display and maintenance commands for super
VLANs
Execute display commands in any view.
Task Command
Display information about super VLANs and their
associated sub-VLANs.
display supervlan
[
supervlan-id
]
Super VLAN configuration examples
Example: Configuring a super VLAN
Network configuration
As shown in Figure 7:
• Twenty-FiveGigE 1/0/1 and Twenty-FiveGigE 1/0/2 are in VLAN 2.
• Twenty-FiveGigE 1/0/3 and Twenty-FiveGigE 1/0/4 are in VLAN 3.
• Twenty-FiveGigE 1/0/5 and Twenty-FiveGigE 1/0/6 are in VLAN 5.
To save IP addresses and enable sub-VLANs to be isolated at Layer 2 but interoperable at Layer 3,
perform the following tasks:
• Create a super VLAN and assign an IP address to its VLAN interface.
• Associate the super VLAN with VLANs 2, 3, and 5.

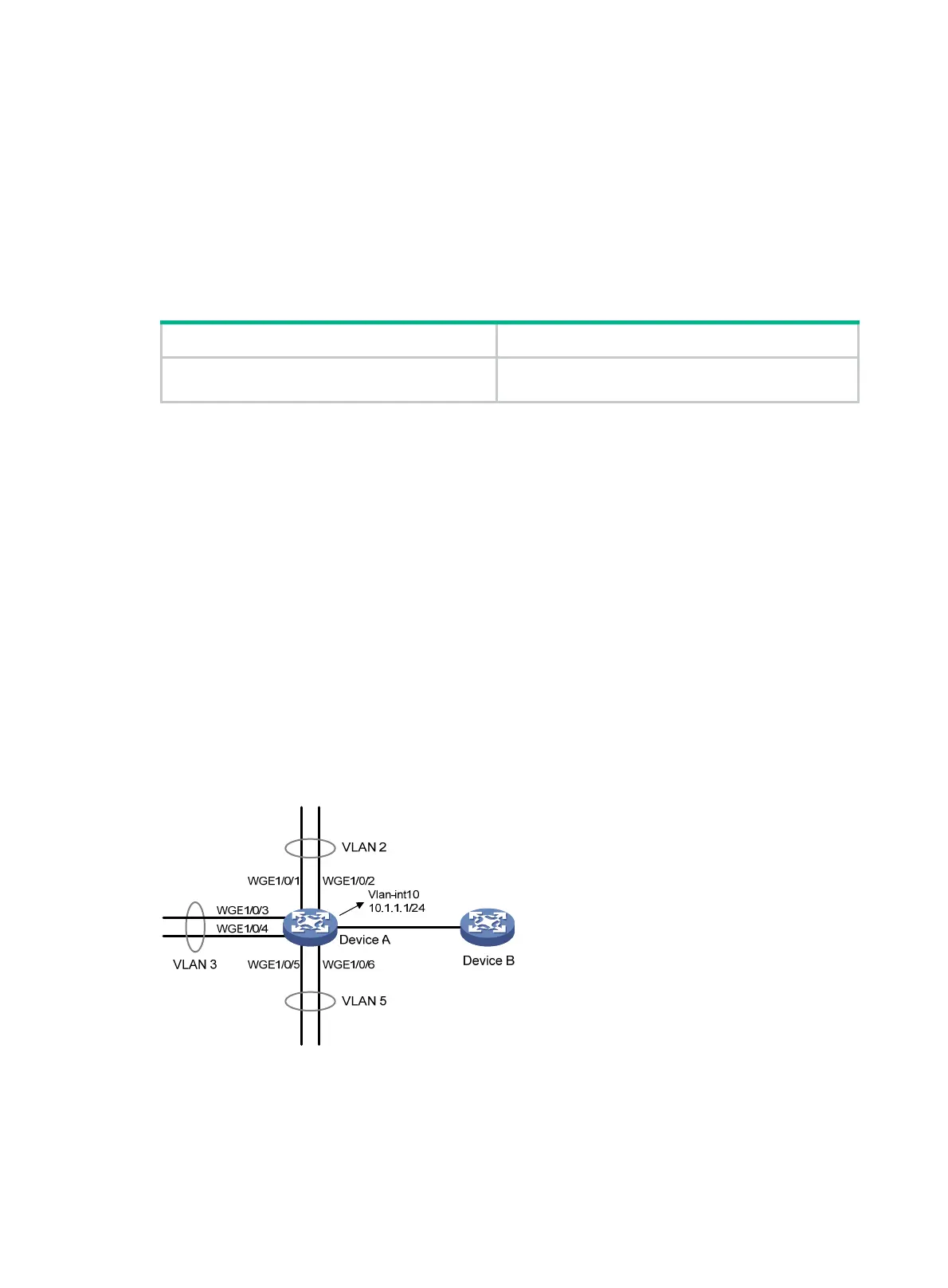

Figure 7 Network diagram
Procedure
# Create VLAN 10.
<DeviceA> system-view
[DeviceA] vlan 10
