Verifying the configuration
# Display detailed information about all aggregation groups on Device A.
[DeviceA] display link-aggregation verbose
Loadsharing Type: Shar -- Loadsharing, NonS -- Non-Loadsharing
Port Status: S -- Selected, U -- Unselected, I -- Individual
Port: A -- Auto port, M -- Management port, R -- Reference port
Flags: A -- LACP_Activity, B -- LACP_Timeout, C -- Aggregation,
D -- Synchronization, E -- Collecting, F -- Distributing,
G -- Defaulted, H -- Expired
Aggregate Interface: Route-Aggregation1
Creation Mode: Manual
Aggregation Mode: Dynamic
Loadsharing Type: Shar
Management VLANs: None
System ID: 0x8000, 000f-e267-6c6a
Local:
Port Status Priority Index Oper-Key Flag
WGE1/0/1(R) S 32768 11 1 {ACDEF}
WGE1/0/2 S 32768 12 1 {ACDEF}
WGE1/0/3 S 32768 13 1 {ACDEF}
Remote:
Actor Priority Index Oper-Key SystemID Flag
WGE1/0/1 32768 81 1 0x8000, 000f-e267-57ad {ACDEF}
WGE1/0/2 32768 82 1 0x8000, 000f-e267-57ad {ACDEF}
WGE1/0/3 32768 83 1 0x8000, 000f-e267-57ad {ACDEF}
The output shows that link aggregation group 1 is a Layer 3 dynamic aggregation group that contains
three Selected ports.
Example: Configuring Layer 3 aggregation load sharing
Network configuration
On the network shown in Figure 14, perform the following tasks:
• Configure Layer 3 static aggregation groups 1 and 2 on Device A and Device B, respectively.
• Configure IP addresses and subnet masks for the corresponding Layer 3 aggregate interfaces.
• Configure link aggregation group 1 to load share packets based on source IP addresses.
• Configure link aggregation group 2 to load share packets based on destination IP addresses.

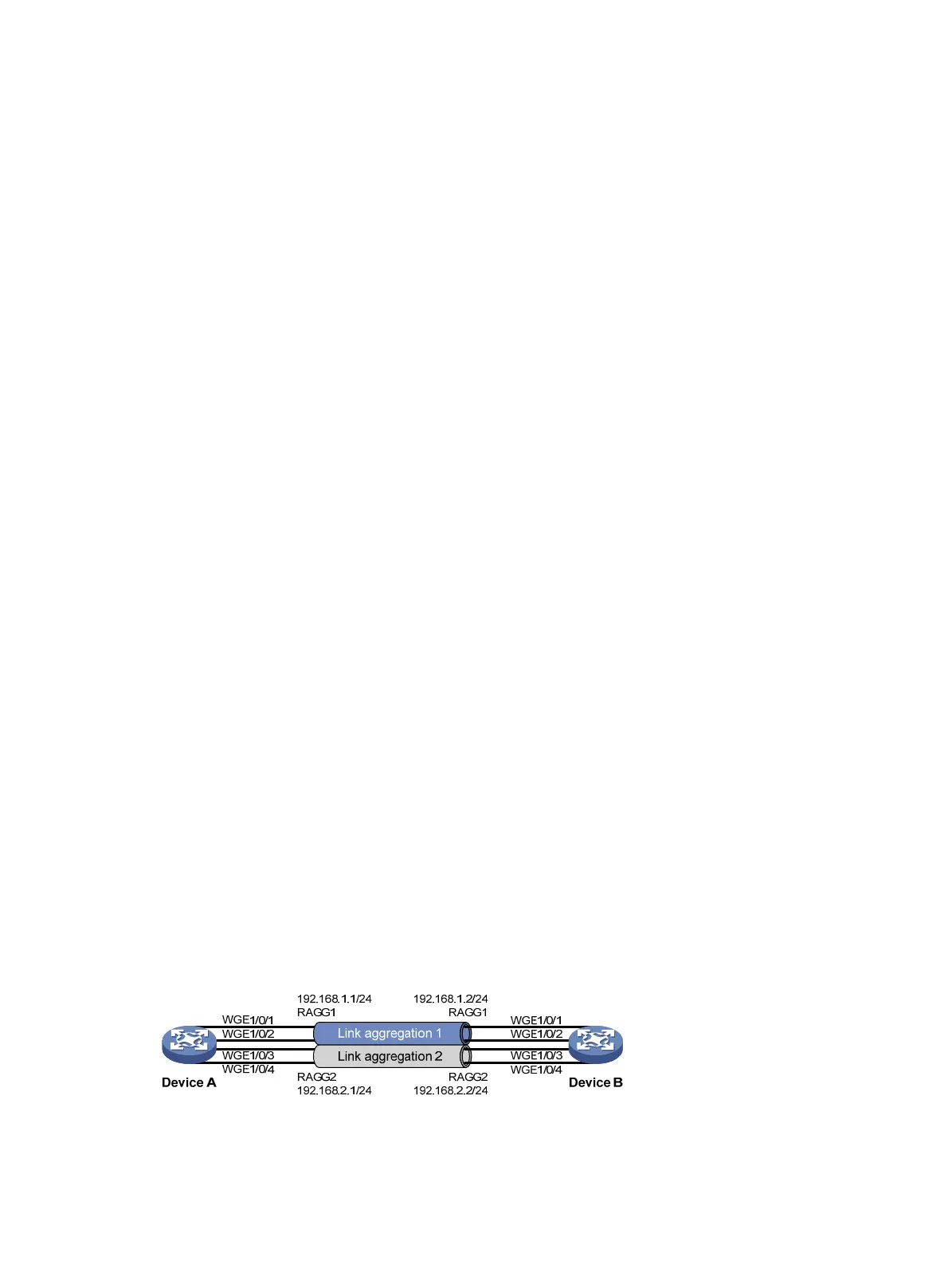

Figure 14 Network diagram
Procedure
1. Configure Device A:
