9
Device Comparison process
Configuration BPDU on
ports after comparison
spanning tree calculation process: for example, the link
between Device B and Device C is down.
Final calculated spanning tree
After the comparison processes described in Table 4, a spanning tree with Device A as the root
bridge is established, as shown in Figure 5.

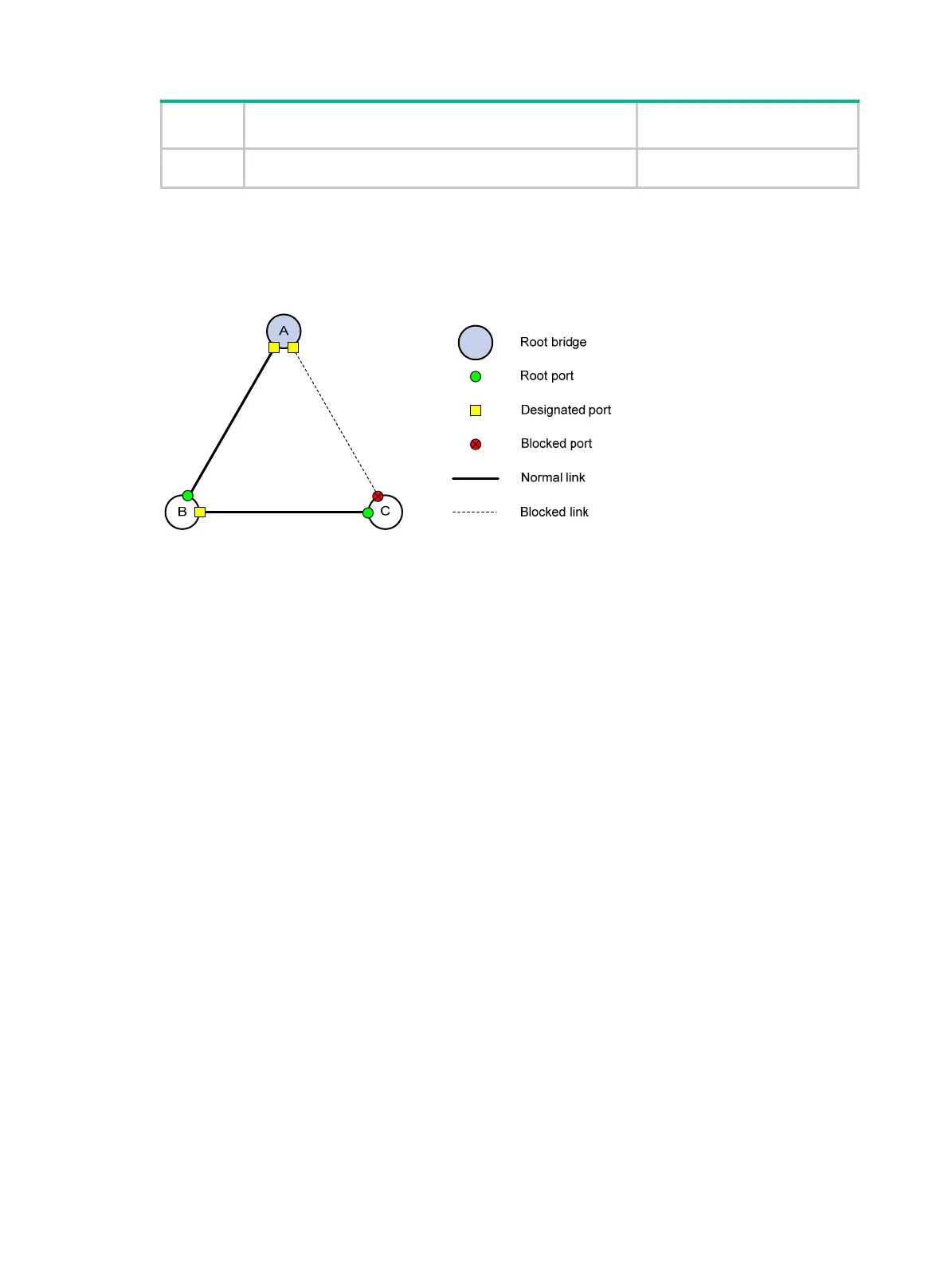

Figure 5
The final calculated spanning tree
The configuration BPDU forwarding mechanism of STP
The configuration BPDUs of STP are forwarded according to these guidelines:
• Upon network initiation, every device regards itself as the root bridge and generates
configuration BPDUs with itself as the root. Then it sends the configuration BPDUs at a regular
hello interval.
• If the root port receives a configuration BPDU superior to the configuration BPDU of the port,
the device performs the following operations:
{ Increases the message age carried in the configuration BPDU.
{ Starts a timer to time the configuration BPDU.
{ Sends this configuration BPDU through the designated port.
• If a designated port receives a configuration BPDU with a lower priority than its configuration
BPDU, the port immediately responds with its configuration BPDU.
• If a path fails, the root port on this path no longer receives new configuration BPDUs and the old
configuration BPDUs will be discarded due to timeout. The device generates a configuration
BPDU with itself as the root and sends the BPDUs and TCN BPDUs. This triggers a new
spanning tree calculation process to establish a new path to restore the network connectivity.
However, the newly calculated configuration BPDU cannot be propagated throughout the network
immediately. As a result, the old root ports and designated ports that have not detected the topology
change continue forwarding data along the old path. If the new root ports and designated ports begin
to forward data as soon as they are elected, a temporary loop might occur.
STP timers
The most important timing parameters in STP calculation are forward delay, hello time, and max age.
• Forward delay
Forward delay is the delay time for port state transition. By default, the forward delay is 15
seconds.
