Management VLANs: None
Port Status Priority Oper-Key
WGE1/0/1(R) S 32768 1
WGE1/0/2 S 32768 1
Aggregate Interface: Route-Aggregation2
Aggregation Mode: Static
Loadsharing Type: Shar
Management VLANs: None
Port Status Priority Oper-Key
WGE1/0/3(R) S 32768 2
WGE1/0/4 S 32768 2
The output shows that:
• Link aggregation groups 1 and 2 are both load-shared Layer 3 static aggregation groups.
• Each aggregation group contains two Selected ports.
# Display all the group-specific load sharing modes on Device A.
[DeviceA] display link-aggregation load-sharing mode interface
Route-Aggregation1 Load-Sharing Mode:
source-ip address
Route-Aggregation2 Load-Sharing Mode:
destination-ip address
The output shows that:
• Link aggregation group 1 distributes packets based on source IP addresses.
• Link aggregation group 2 distributes packets based on destination IP addresses.
Example: Configuring S-MLAG
Network configuration
As shown in Figure 15, configure Device B, Device C, and Device D as S-MLAG devices to establish
a multidevice aggregate link with Device A.

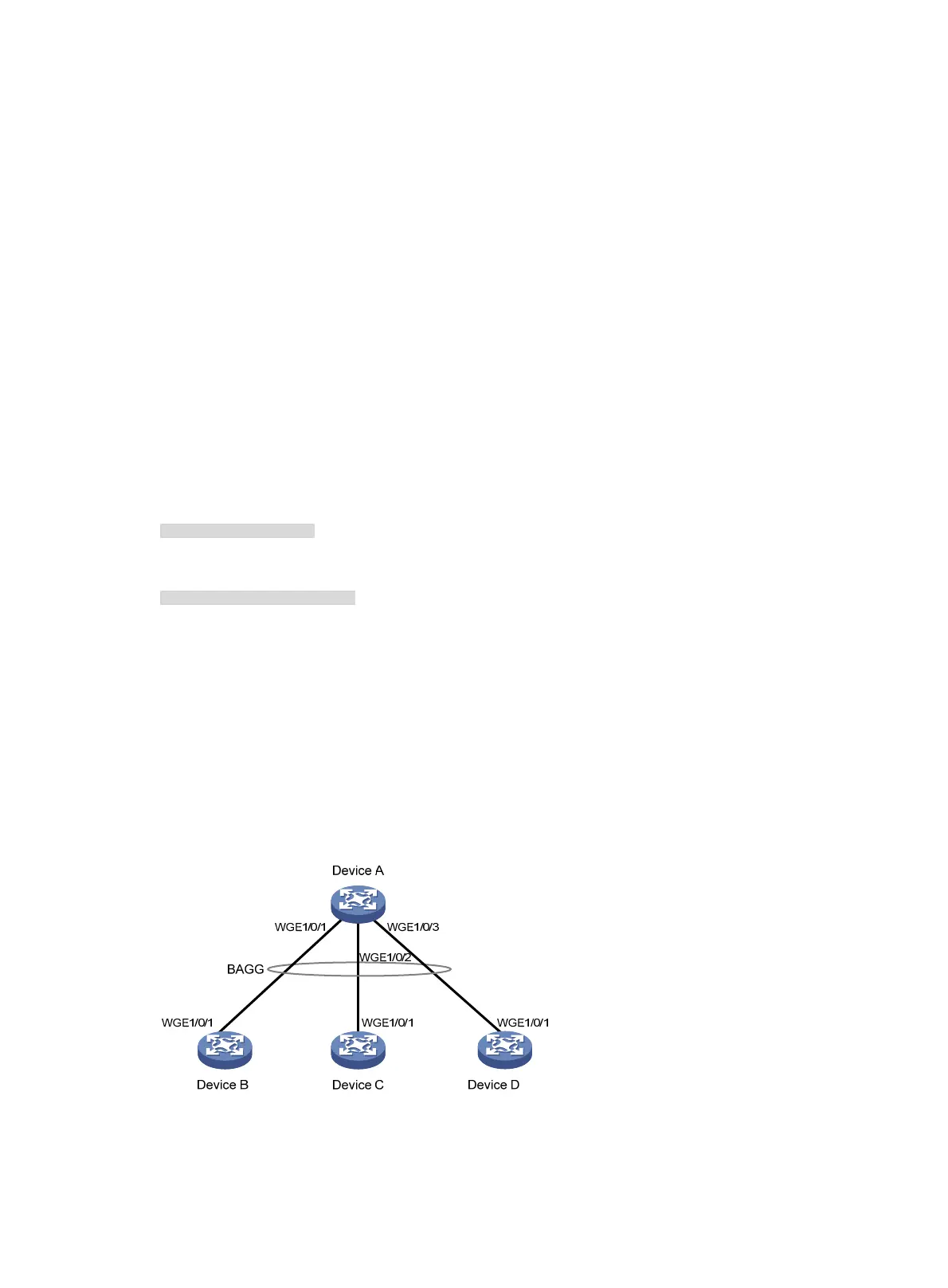

Figure 15 Network diagram
Procedure
1. Configure Device A:
