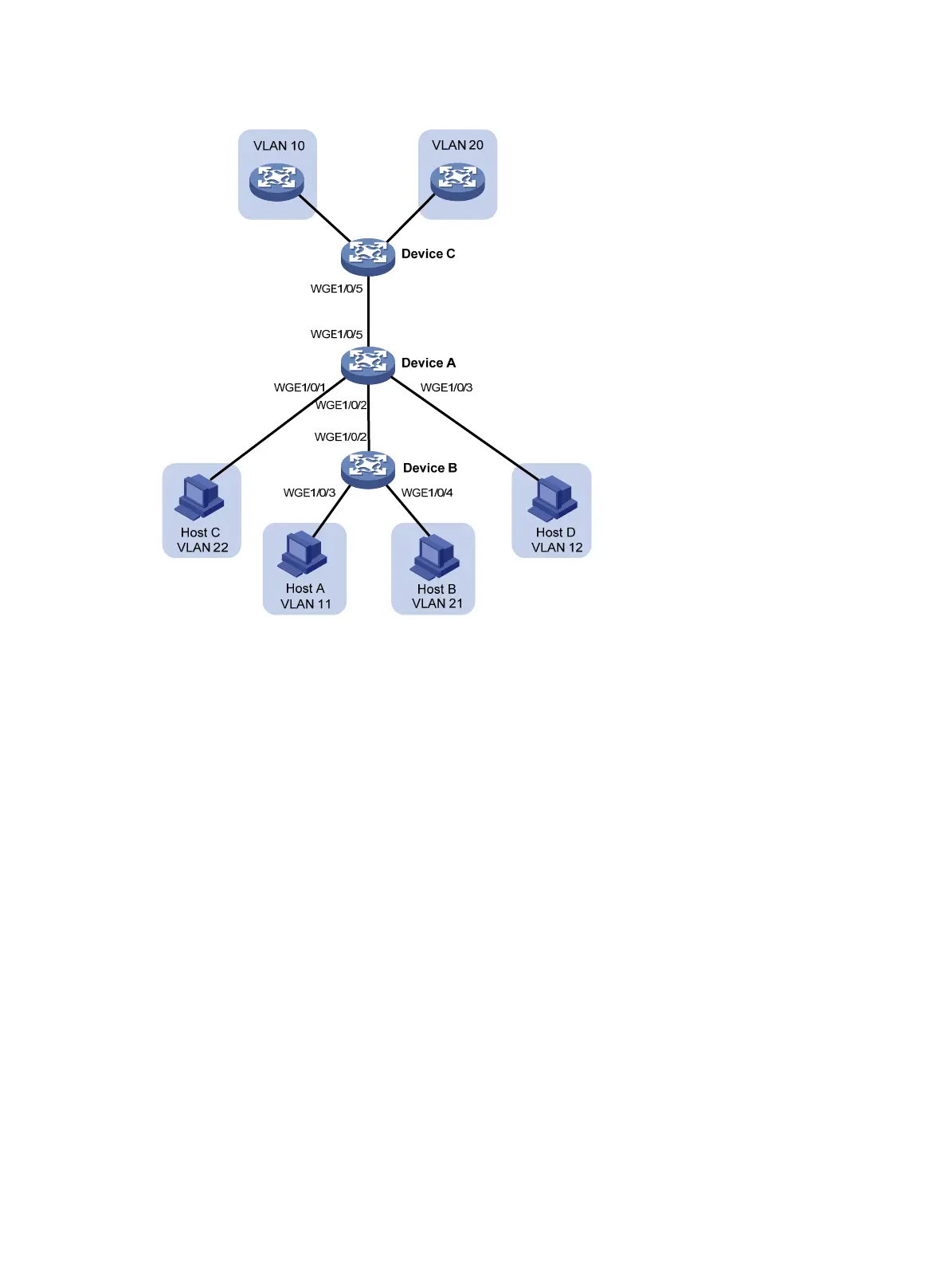

Figure 11 Network diagram

Procedure

1. Configure Device A:

# Configure VLANs 10 and 20 as primary VLANs.

<DeviceA> system-view

[DeviceA] vlan 10

[DeviceA-vlan10] private-vlan primary

[DeviceA-vlan10] quit

[DeviceA] vlan 20

[DeviceA-vlan20] private-vlan primary

[DeviceA-vlan20] quit

# Create VLANs 11, 12, 21, and 22.

[DeviceA] vlan 11 to 12

[DeviceA] vlan 21 to 22

# Associate secondary VLANs 11 and 12 with primary VLAN 10.

[DeviceA] vlan 10

[DeviceA-vlan10] private-vlan secondary 11 12

[DeviceA-vlan10] quit

# Associate secondary VLANs 21 and 22 with primary VLAN 20.

[DeviceA] vlan 20

[DeviceA-vlan20] private-vlan secondary 21 22

[DeviceA-vlan20] quit

# Configure the uplink port (Twenty-FiveGigE 1/0/5) as a trunk promiscuous port of VLANs 10

and 20.
