200
Maintenance
96-8000 rev R June 2007

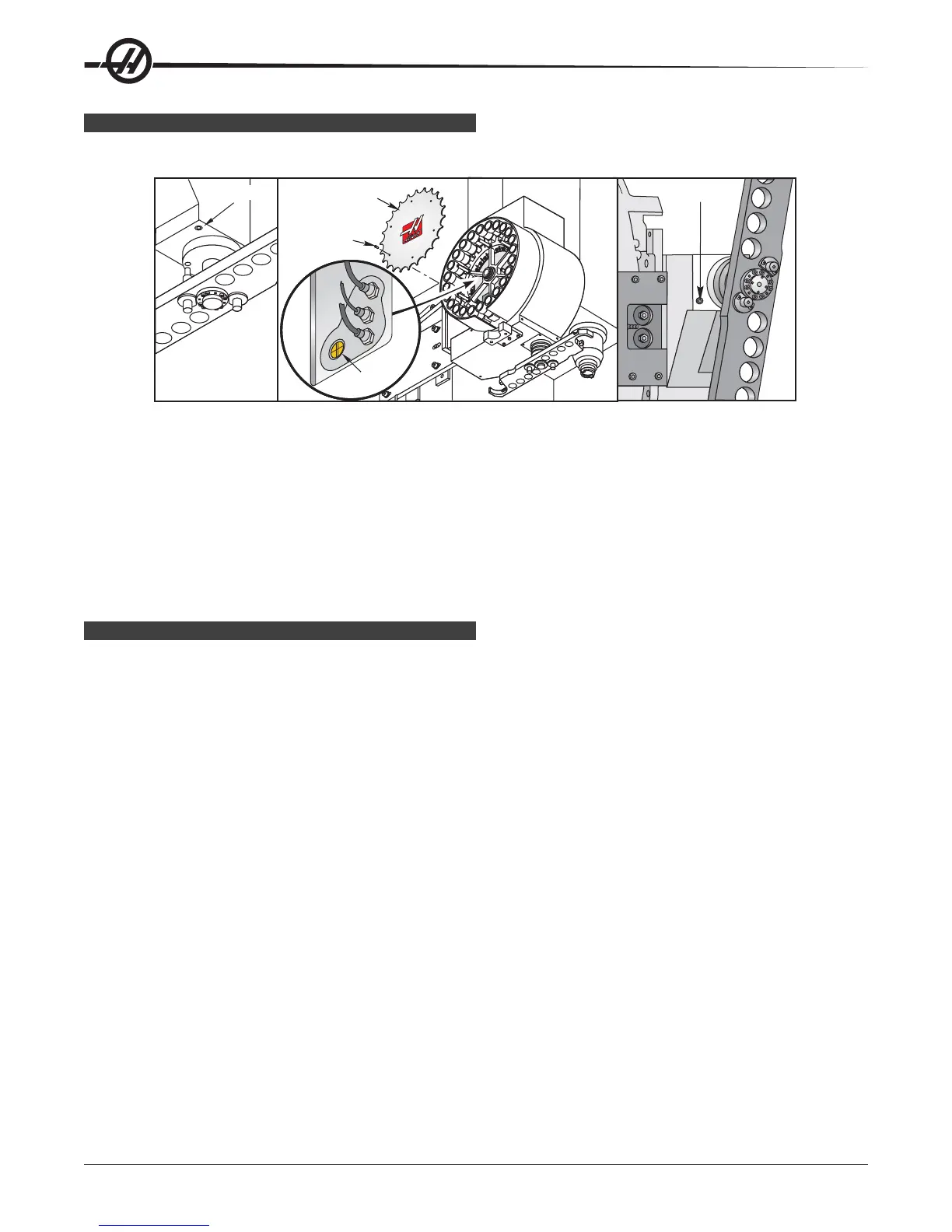

SIDE M OUNT T OOL C HANGER G EARBOX O IL
Checking the oil level
Oil Fill Level
1
13
12
11
10
9
8
7
6
5
4
3
2
23
22
21
20
19
18
17
16
15
14
24
Carousel
Number Disc
Disc Mounting
BHCS (6)
Oil Fill Plug
Oil
Fill Level
Drain Plug
Vertical Mills EC-Series Mills
Vertical Mills: View the oil level sight glass in the location shown. The proper level is half way on the sight glass. If
more oil is needed, fill the gear box to the proper level at the oil fill/breather where shown.
EC-Series: Remove the plug and feel for oil with your finger. If no oil is felt, add oil until the it starts to come out of
the hole. Replace plug.
SMTC Oil Types
Mobilgear 632 or equivalent, for standard tool changers
Mobil SHC 630 or equivalent, for high speed tool changers
HS 3/4/6/7 38-TOOL T OOL C HANGER M AINTENANCE
Six Months •Lubricate the following parts using red grease:
Magazine Drive Gear,
Tool Pot,
Changer Slide Rack.
• Lubricate the Arm Shaft using Moly grease.
Annually • Lubricate the Changer Slide Linear Guide with red grease.
Tool Pot Chain Tension
The tool pot chain tension should be checked regularly as a preventive maintenance procedure. Chain tension
adjustment is performed in the lower left area of the magazine. Loosen the four M12x50 SHCS from the front of the
magazine. This will allow the plate to move. Loosen the hex lock nut on the shaft and tighten the shaft using the
hex bolt. Lock in the adjustment with the hex lock nut, and retighten the four 12x50 SHCS. Tensioning will not
change the indexed pot location, but check the alignment between the manual tool push cylinder and the tool pot.
