4. Adjust the carrier flow (see Figure 28 and Figure 29) to achieve the CO
2
reading detailed in Table 9.
5. Allowing the reading to stabilize for 10 minutes and fine adjust the reactor
flow for the gas CO
2
ppm reading to the appropriate value in Table 9.
6. Set the flow no lower than 30 cc/min. and no higher than 150 cc/minute
Ensure that the gas concentration remains in this range for a minimum of
5 minutes.
7. Enter the Primary Span calibration, and follow the prompted procedure.
Because the analyzer has already been subjected to the 100% KHP
standard, you may press ENTER repeatedly to skip the elapsing time and
advance to the final screen.

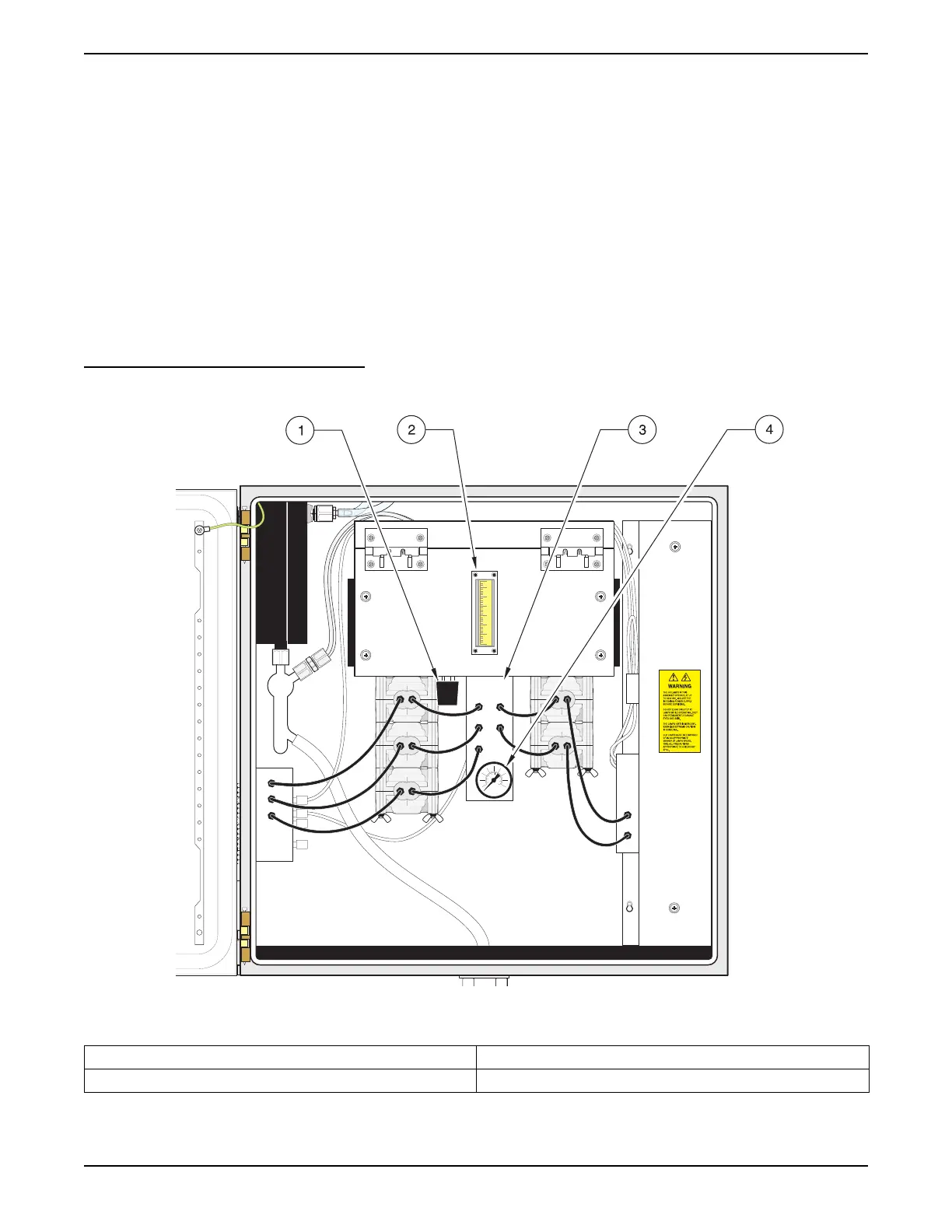

Figure 28 Adjusting the Pressure and Flow
1. Flow Adjustment Knob 3. Pressure Regulator Knob (Behind the Sparger Block.)
2. Flow Meter 4. Pressure Gauge
