Error messages/operating state (LED display)
108 A0293_06_E00_03 HBM: public MP85A
RemedyCauseError
message
InCab Err Invalid initial calibration values in
the memory of the MP85A process
controller
Reboot, send MP85A process
controller to the manufacturer
(HBM)
CAN Tx PDOs are not accepted in the CAN
bus
Check CAN bus configuration

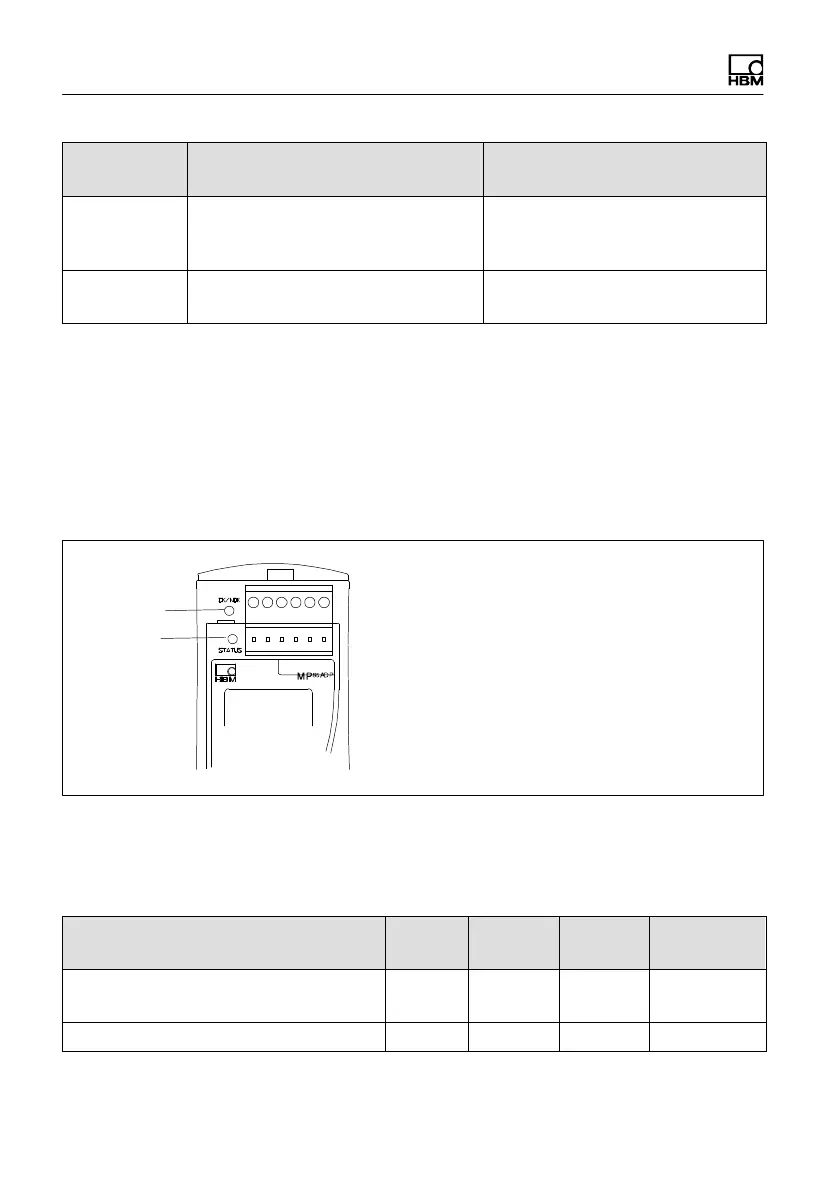

Operating state of the MP85A process controller:
The LEDs indicate the operating states (ready for measurement, overflow, etc.)
of the device. In the MP85ADP(-S), however, the PFOFIBUS state is displayed
instead of the CAN status (as in the MP85A). This is also the case in the
MP85DP-PN(-S), but in this case it indicates a Profinet error.
LED 1
LED 2
Operating state
LED1 (OK/NOK)
LED 1 (OK/NOK)/Process state Red
LED
Yellow
LED
Green
LED
LED
flashes
Initialization after device is switched
on
x
Alarm x x
