FAQs: Frequently asked questions (MP85A and PME Assistant)
126 A0293_06_E00_03 HBM: public MP85A

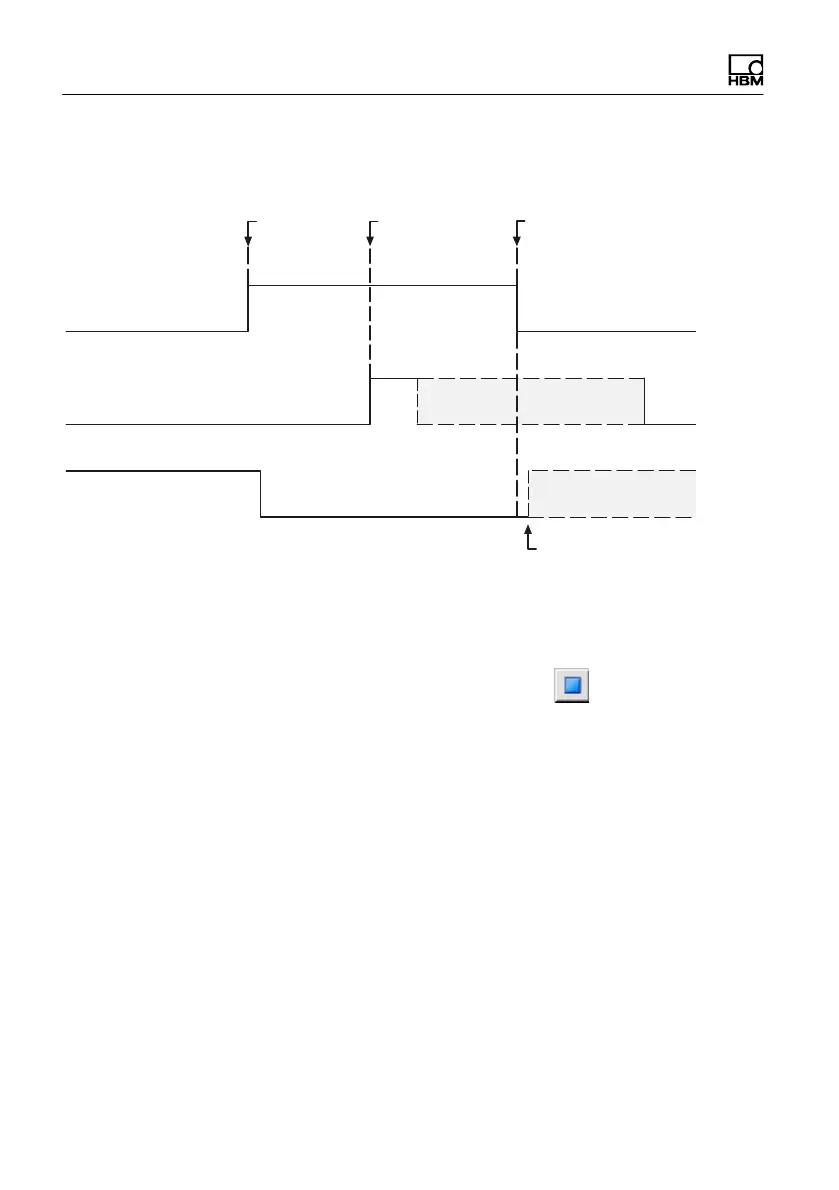

Flow diagram b) for start/stop/end conditions
Ext. signal
Ready
Start Stop
Ready signal
may be issued
Start with external signal, stop with (internal) condition, end with external signal
Stop condition
End
Notes
S The process is halted immediately without waiting for your stop condition
when the external signal goes to “End”, you click on or the relevant
interface command arrives.
S Only level changes (edges) of the external signal are analyzed.
Start via external signal, stop and end via conditions
Start the process with an external signal (digital inputs). The measurement
should be stopped and ended by means of conditions, e.g. a value is too low.
