FAQs: Frequently asked questions (MP85A and PME Assistant)
MP85A A0293_06_E00_03 HBM: public 127

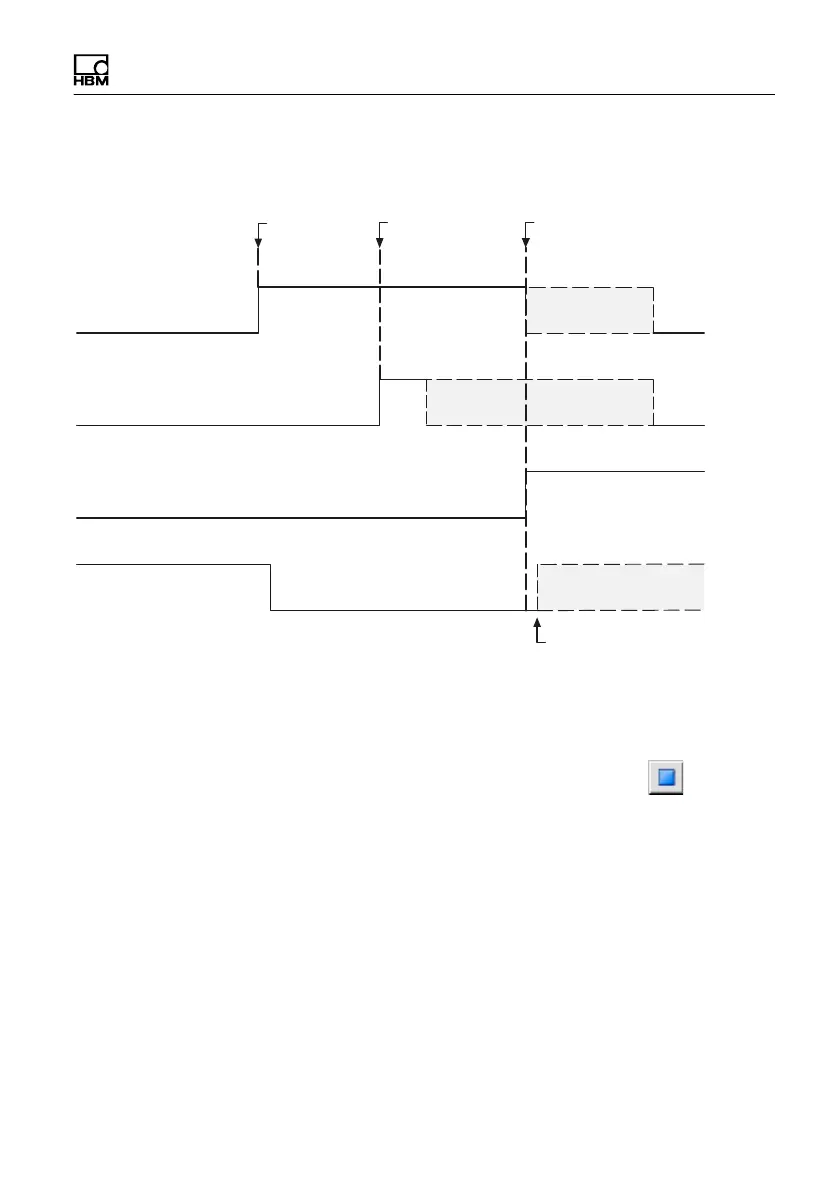

Flow diagram c) for start/stop/end conditions
Ext. signal
Ready
Start Stop
Ready signal
may be issued
Start with external signal, stop with (internal) condition, end with (internal) condition
Stop condition
End
End condition
Notes
S The process is halted immediately without waiting for your stop or end con
ditions when the external signal returns to “End”, you click on or the
relevant interface command arrives.
S The stop and end conditions are only analyzed when a value has already
dropped below the reference value plus hysteresis or risen above the refer
ence value minus hysteresis once. The hysteresis (5% of the range win
dow) is necessary to ensure that noise or minor signal interference does not
already interrupt the measurement at time tx. The percentage refers to the
relevant axis of the range window.
