FAQs: Frequently asked questions (MP85A and PME Assistant)
128 A0293_06_E00_03 HBM: public MP85A

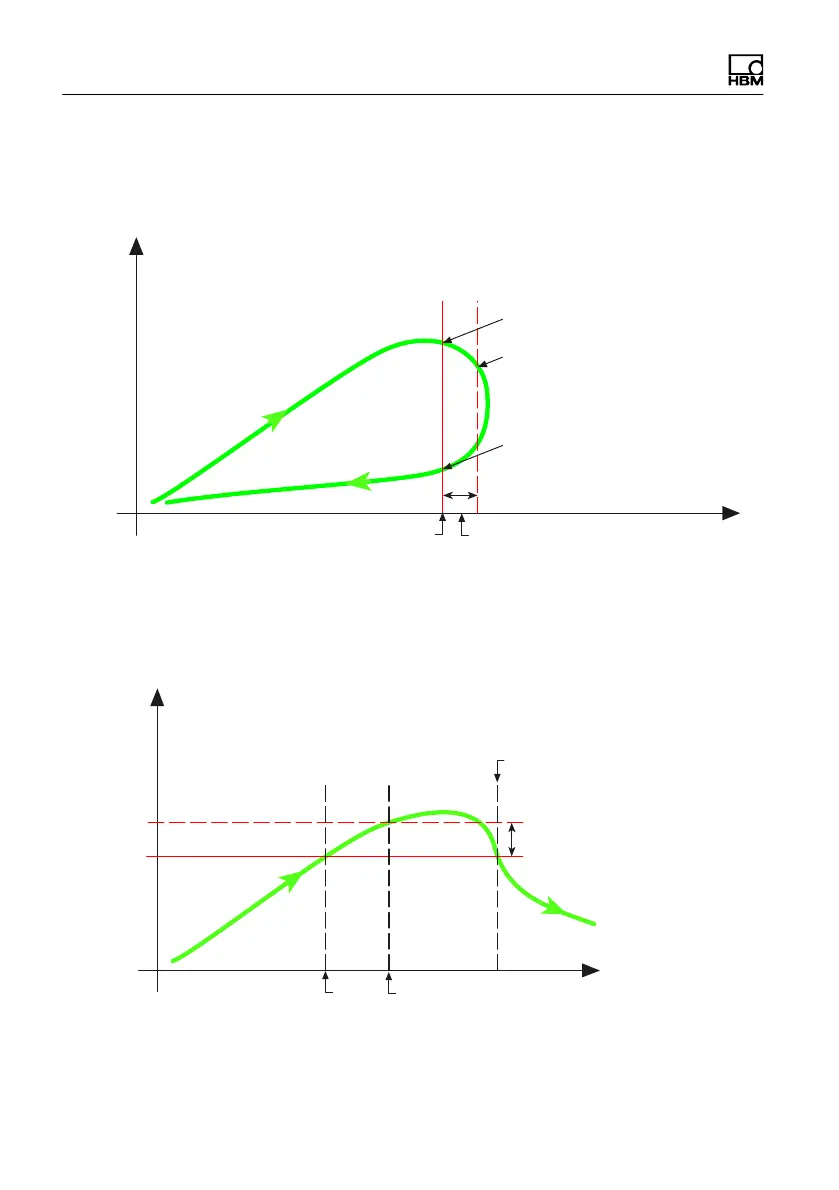

Example of stop/end condition: Below reference value of xchannel
For the condition below reference value, hysteresis is above the reference
value.
Condition: Stop or end below reference value of x channel
Hysteresis: 5% of
range window span
Start checking for
"below reference"
t
x
Ref. value
Condition stop/end
fulfilled
Example of stop/end condition: Below reference value of ychannel
For the condition below reference value, hysteresis is above the reference
value.
Ref. value
Condition stop/end fulfilled
Condition: Stop or end below reference value of y-channel
Hysteresis:
5% of range window span
Start checking for “below reference”
t
x
