FAQs: Frequently asked questions (MP85A and PME Assistant)
MP85A A0293_06_E00_03 HBM: public 129
Start/stop/end via conditions
Start, stop and end the process by means of various conditions, e.g. start
when a value exceeds the reference value, stop and end when certain values
fall below the reference value.

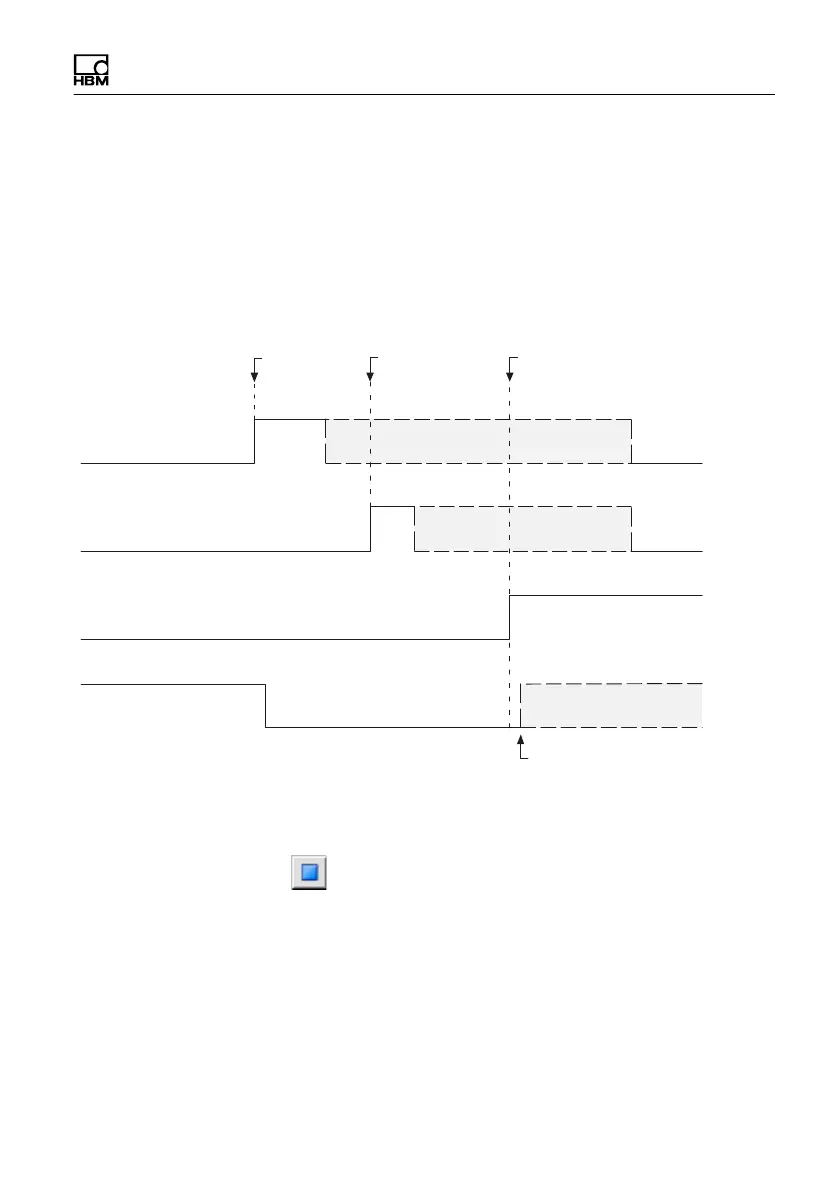

Flow diagram d) for start/stop/end conditions
Start condition
Ready
Start Stop
Ready signal
may be issued
Start via (internal) condition, stop via (internal) condition, end via (internal) condition
Stop condition
End
End condition
Notes
S The process is halted immediately without waiting for your stop or end con
ditions if you click on or the relevant interface command arrives.
S The conditions are only analyzed when a value has already dropped below
the reference value plus hysteresis or risen above the reference value
minus hysteresis once. The hysteresis is 1% of the range window for the
start condition, and 5% of the range window for the stop and end conditions.
The percentage refers to the relevant axis of the range window. The hys
teresis is necessary to ensure that noise or minor signal interference does
not already interrupt the measurement at time tx.
