FAQs: Frequently asked questions (MP85A and PME Assistant)
130 A0293_06_E00_03 HBM: public MP85A

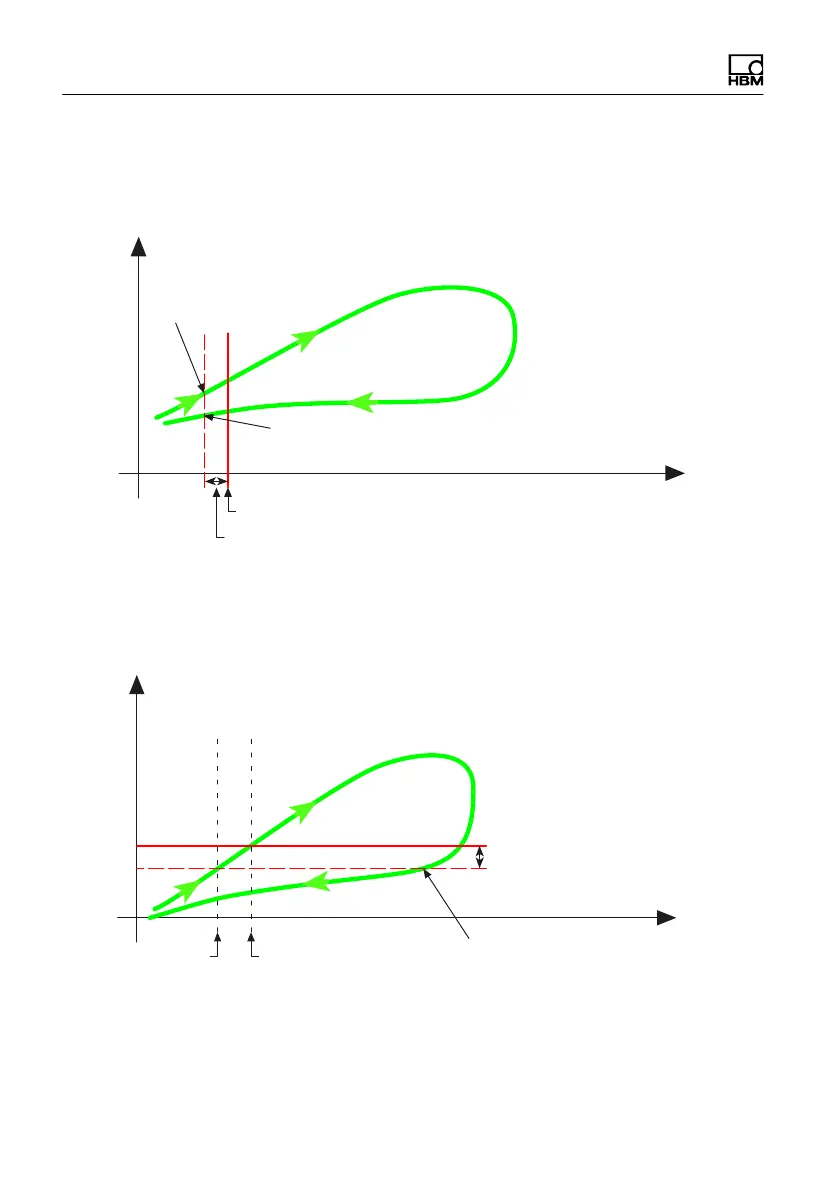

Example of start condition: Above reference value of xchannel
For the condition above reference value, hysteresis is below the reference
value.
Hysteresis: 1% of range window span
Reference value = start of measurement
Condition: start above reference value of x-channel
Leaving the start condition:
End condition fulfilled (if used)
Min. start signal
Example of start condition: Above reference value of ychannel
For the condition above reference value, hysteresis is below the reference
value.
Ref. value =
start of meas.
Condition: start above reference value of y-channel
Leaving the start condition:
End condition fulfilled (if used)
Ref.
value
Hysteresis: 1% of
range window span
Min. start signall
