ALTERNATIVE INSTALLATIONS • Spacing between the injection and extraction nozzles over 50 cm:
1 Pellet anti-shatter protective mat
A) approx. 10 cm
B) over 50 cm
• Spacing between the injection and extraction nozzles under
50 cm:
1 Pellet anti-shatter protective mat
A) min. 50 cm
B) under 50 cm
C) approx. 10 cm

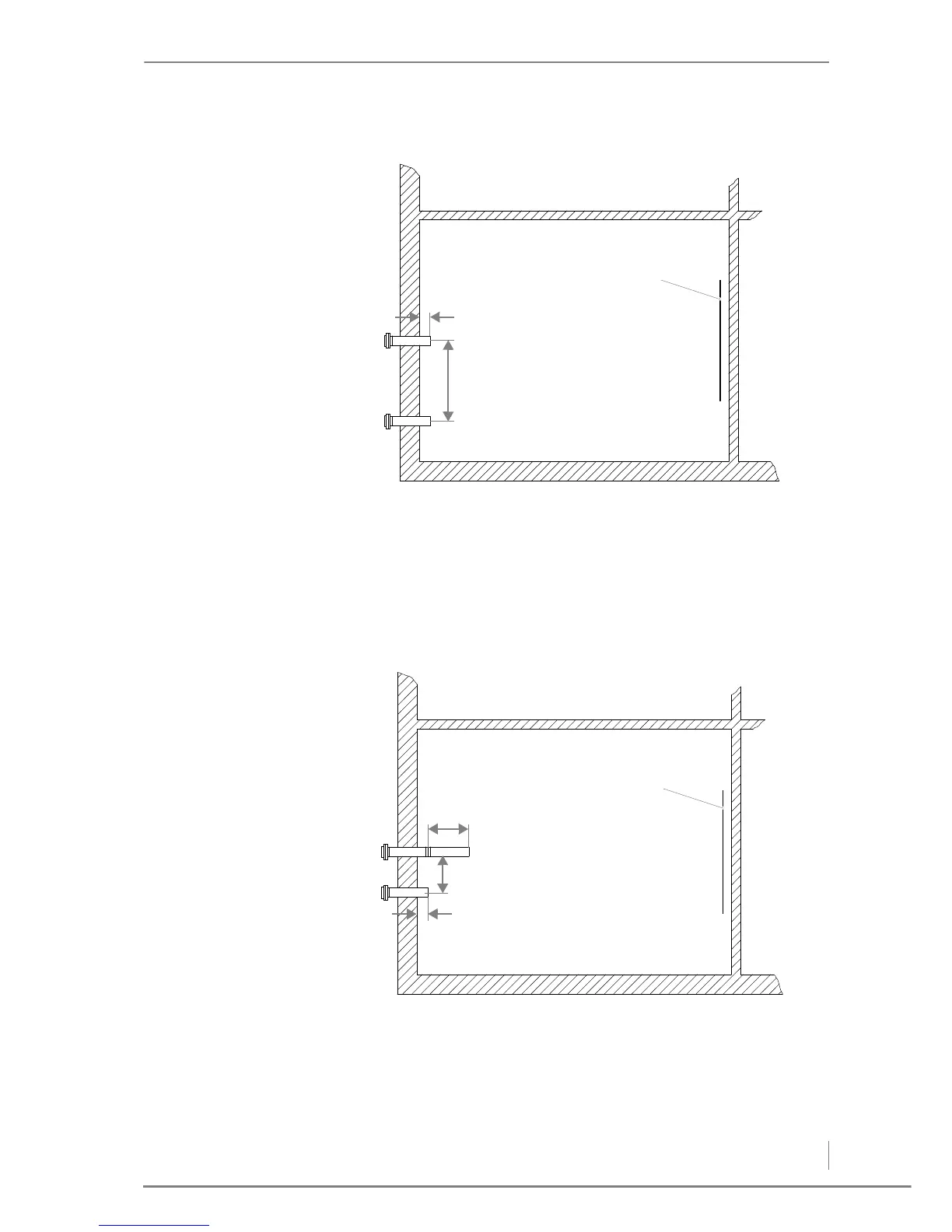

Figure 4/5 - Injection and extraction nozzles, variant 1
1
B
A
Figure 4/6 - Injection and extraction nozzles, variant 2
1
C
A
B
