HDG Pelletmaster 15 - Page 54

4 Planning and installation – Installing the heating system
54
LEFT HAND BOILER CLADDING
1. Place the left hand cladding panel next to the boiler.
2. Remove the cover plate for the cable channel (2) of the cladding
on the left side.
3. Feed the cables (1) for the sensors into the cable channel.

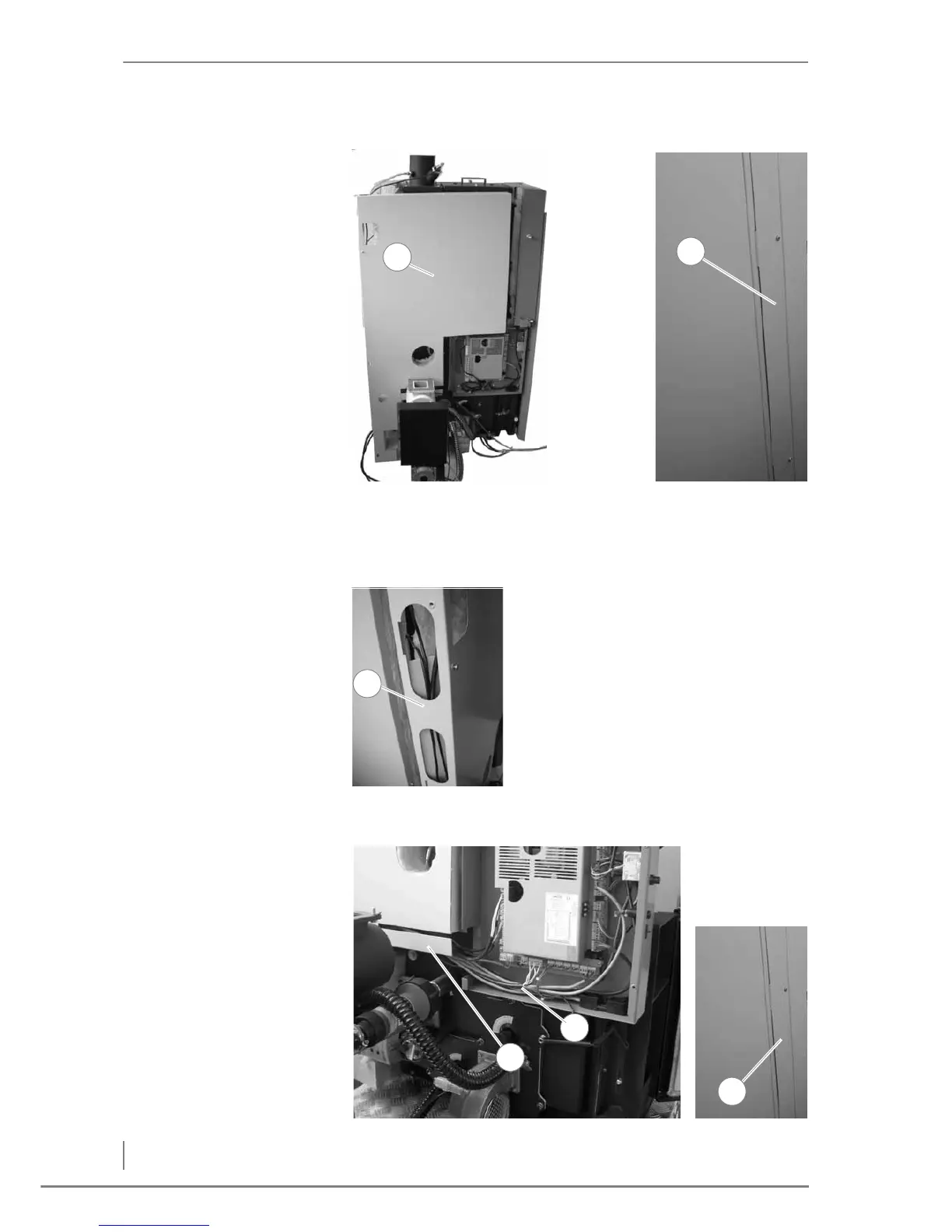

Figure 4/29 - Attaching the left hand cladding
1
2
Figure 4/30 - Laying the cables
1
Figure 4/31 - Laying the cables
2
1
3
