INSTALLING THE MOTOR
19.Tighten the fixing bolts (1) to the bearing of the transfer
station (2).
20.Slide the motor (5) with the pre-mounted torque support (4) onto
the transfer station shaft (2).
21.Use the nut (3) to tighten the motor (5) firmly to the bearing
flange.
✓ The motor and the delivery system have been installed.
C
ONNECTING THE SUCTION AND
RETURN HOSES
1. Separate out about 10 cm of the wire worked into the suction
hose (2) at the transfer station end.
2. Slide the hose clip (3) over the suction hose (2).

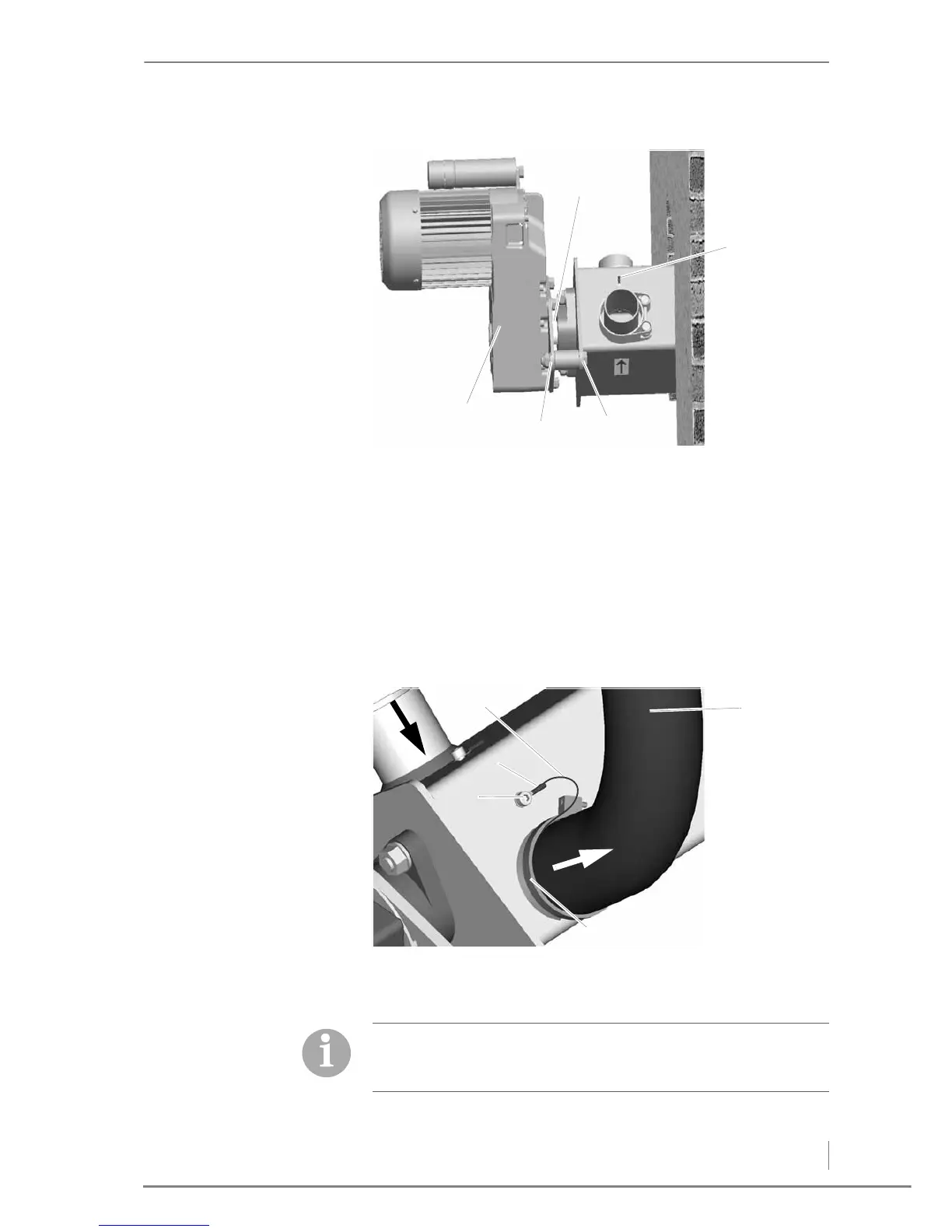

Figure 4/71 - Installing the motor
1
2
3
4
5
Figure 4/72 - Connecting the suction hose
2
1
4
3
5
On the lower right side of the transfer station there is an arrow
which points in the direction of the pellet vacuum container. This
can be used to recognise the suction side of the transfer station.
