4 Planning and installation – Delivery and vacuum delivery system
76
FASTENING THE BEARING UNIT
14.Slide the thread of the bearing unit (3) through the hole in the
pressure relief plate (1).
15.Fasten the bearing unit (3) to the pressure relief plate (1) using the
nut (2).
✓ The bearing unit has been fixed in place.
✓ The delivery auger has been installed.
I
NSTALLING THE EXTENSION
MODULE
16.Slide the delivery auger for the extension module (4) onto the pin
of the basic module (1).
17.The feather key must fit into the slot.
18.Install the bearing unit (3) and the pressure relief plate (2) as
described above.
✓ The extension module has been installed.

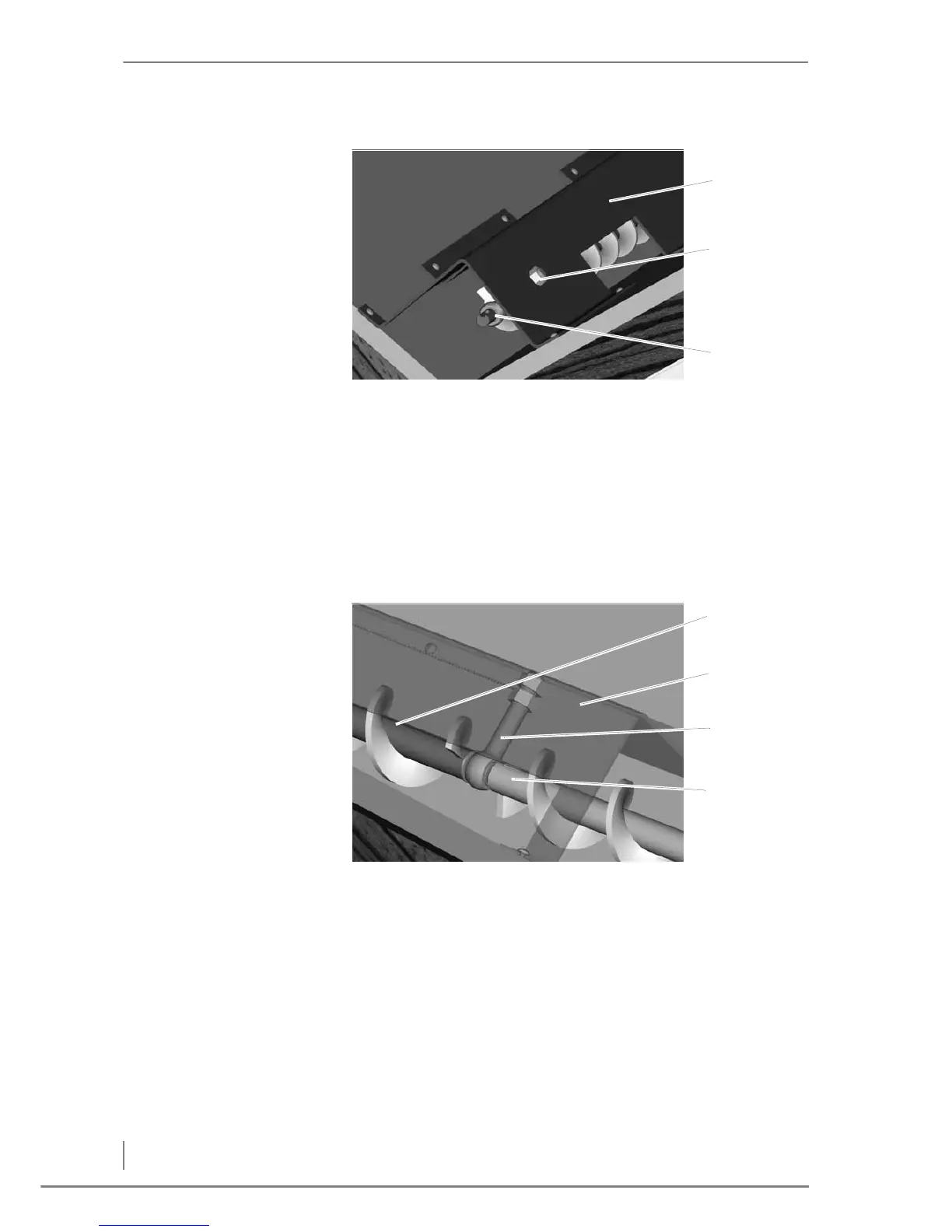

Figure 4/69 - Fastening the bearing unit
1
2
3
Figure 4/70 - Installing the extension module
1
2
3
4
