HEIDENHAIN MANUALplus 620 107
2.8 Units—Threads
"Tapered thread" unit

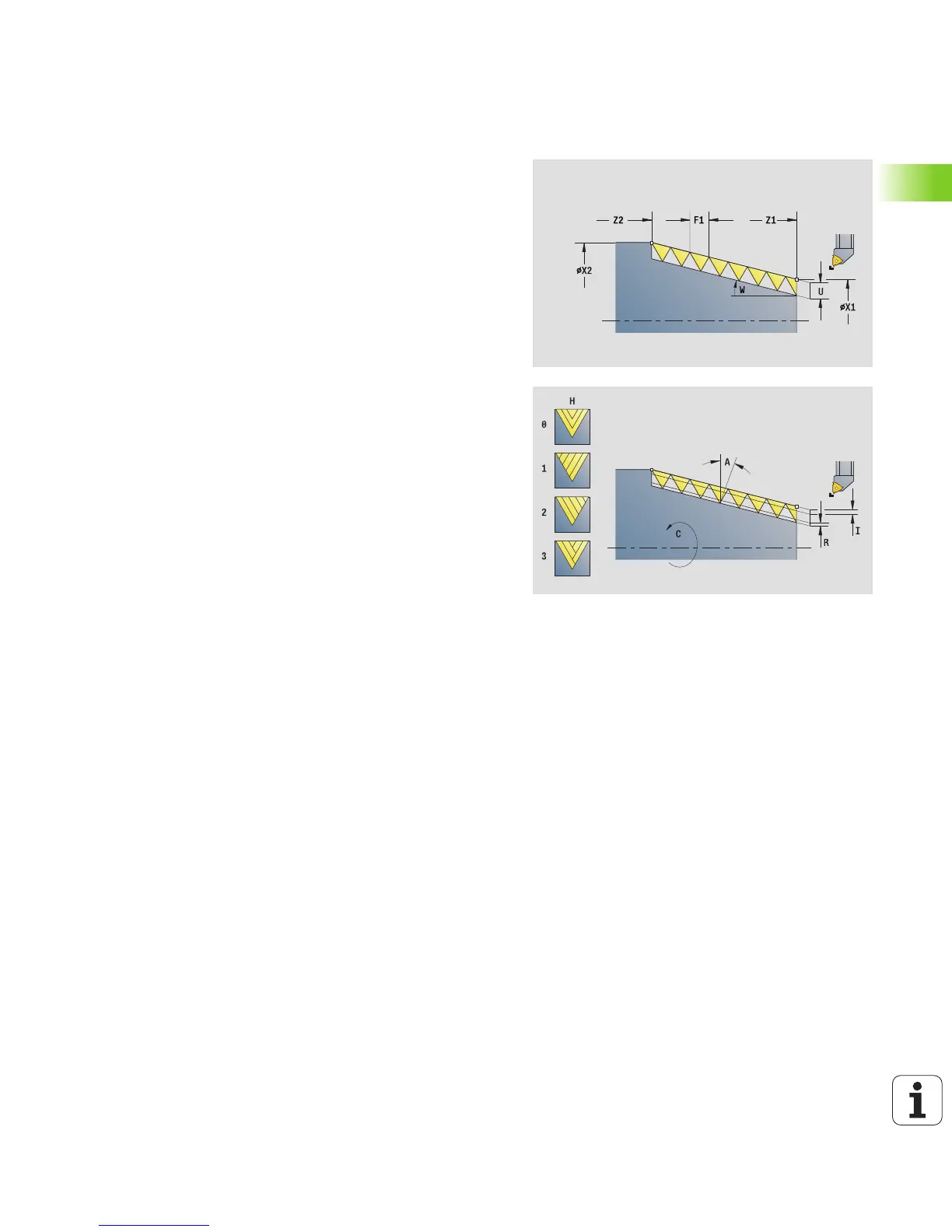

The unit cuts a single or multi-start tapered internal or external thread.
Unit name: G32_KEG / Cycle: G32 (see page 276)
Access to the technology database:
Machining operation: Thread cutting
Affected parameters: F, S
Thread form
O Thread location
0: Internal thread (infeed in +X)
1: External thread (infeed in –X)
APP Approach see page 51
X1, Z1 Starting point of thread (X1: diameter value)
X2, Z2 End point of thread (X2: diameter value)
W Taper angle (reference: Z axis: –45°<W<45°)
F1 Thread pitch
U Thread depth (automatically for metric ISO threads)
KE Run-out position
0: At the end of the threading cut
1: At the start of the threading cut
K Run-out length
