112 smart.Turn Units
2.9 Units—Milling, Face
"Face milling" unit
Depending on Q, the unit mills surfaces or the defined figure. The unit
cuts the material around the figures.
Unit name: G797_Stirnfr_C / Cycle: G797 (see page 324)
Access to the technology database:
Machining operation: Finish-milling
Affected parameters: F, S, FZ, P

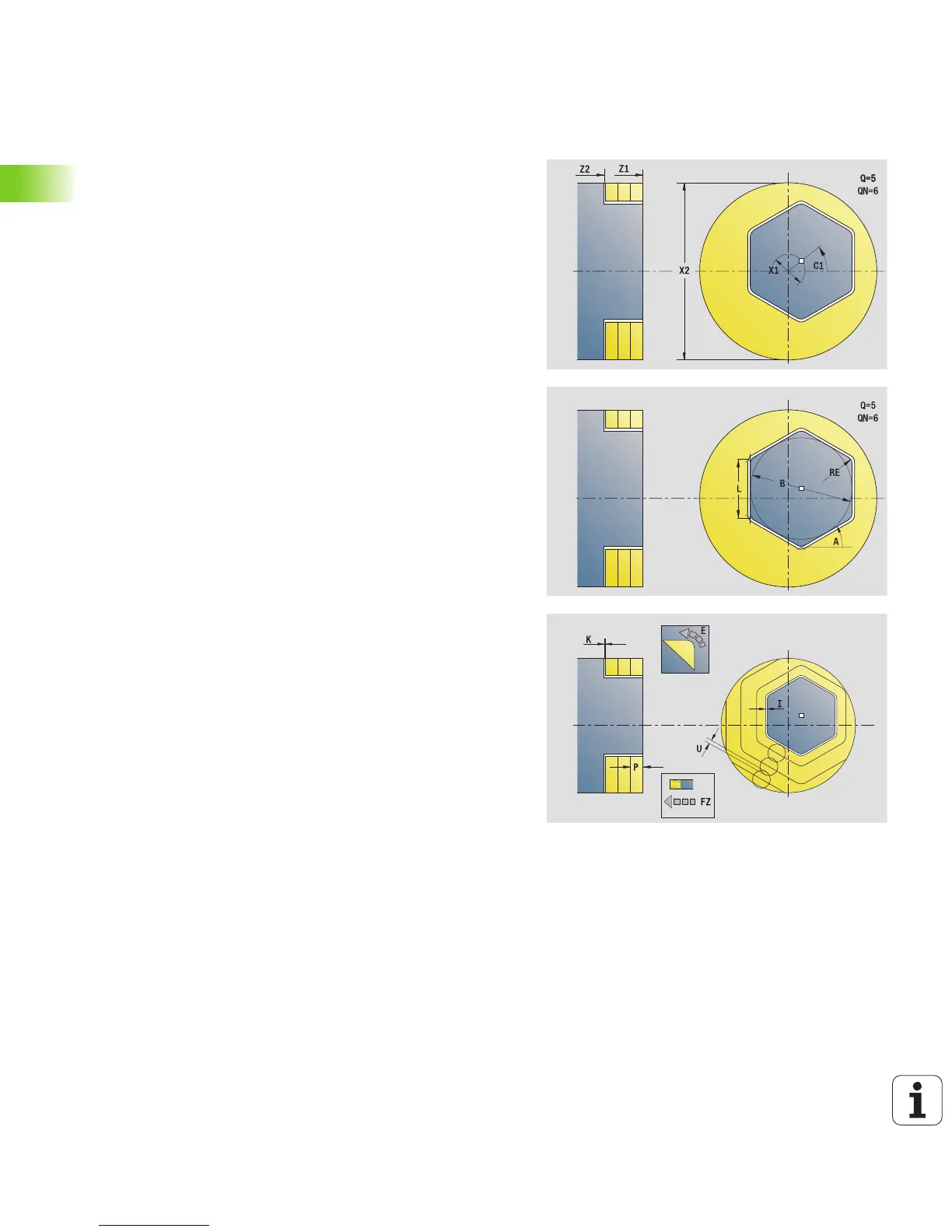

Figure form
Q Type of figure
0: Full circle
1: Single surface
2: Width across flats
3: Triangle
4: Rectangle, square
5: Polygon
QN Number of polygon corners (only with Q=5 polygon)
X1 Diameter of figure center
C1 Angle of figure center
Z1 Milling top edge
Z2 Milling floor
X2 Limit diameter
L Edge length
B Width/Width across flats
RE Rounding radius
A Angle to X axis
