156 smart.Turn Units for the Y Axis
3.3 Units—Milling in Y Axis
"Single-surface milling, XY plane" unit

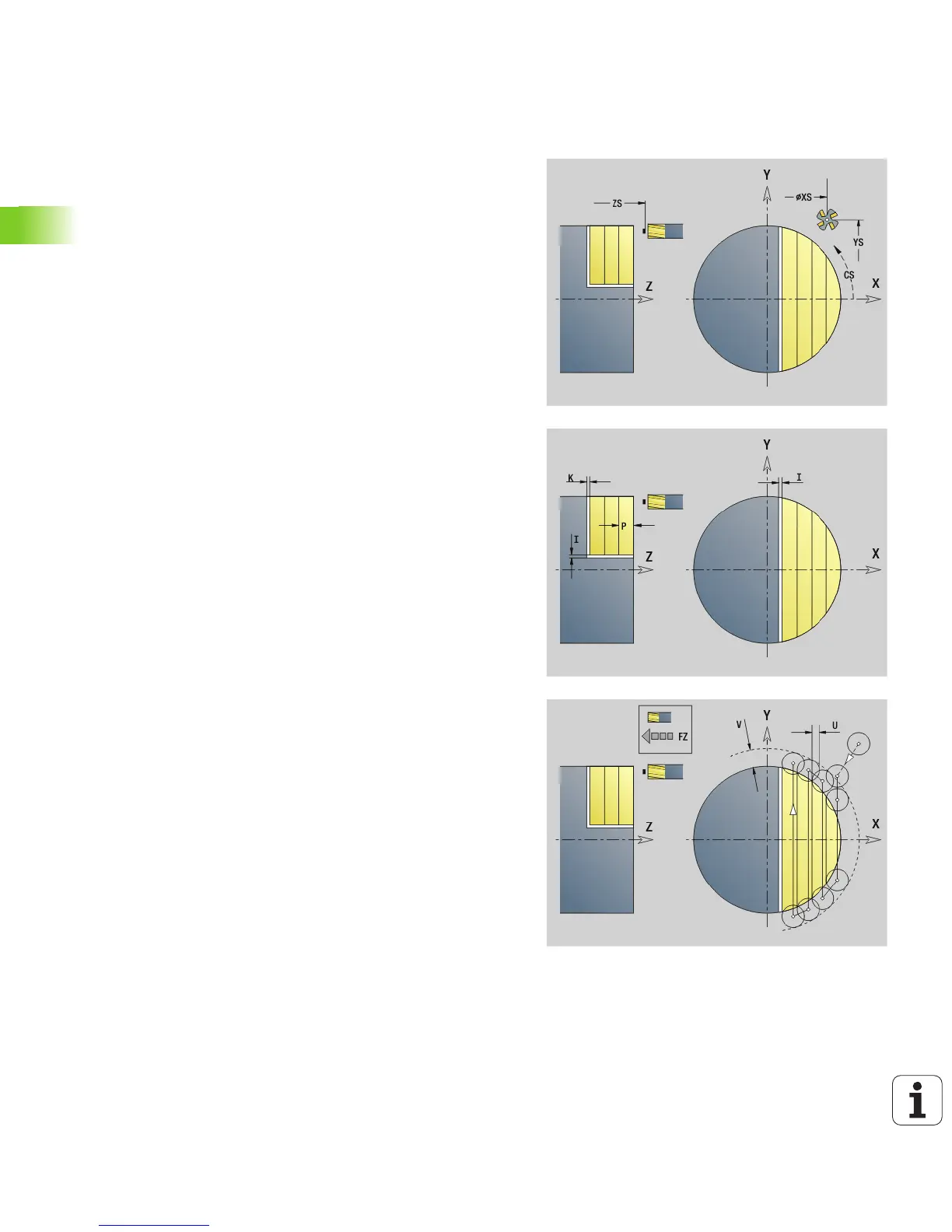

The unit mills a single surface defined with ICP in the XY plane.
Unit name: G841_Y_STI / Cycles: G841 (see page 411); G842 (see
page 412)
Access to the technology database:
Machining mode: Milling
Affected parameters: F, S, FZ, P
Parameters on the Contour form
FK see page 48
APP Approach: see page 51
DEP Departure: see page 51
Parameters on the Cycle form
QK Machining operation:
0: Roughing
1: Finishing
P Maximum approach (infeed)
I Contour-parallel oversize
K Infeed-direction oversize
H Cutting direction
0: Up-cut milling
1: Climb milling
U Overlap factor (default: 0.5)
V Overrun factor
FZ Approach feed (infeed rate)
RB Return plane
Further forms: see page 46
