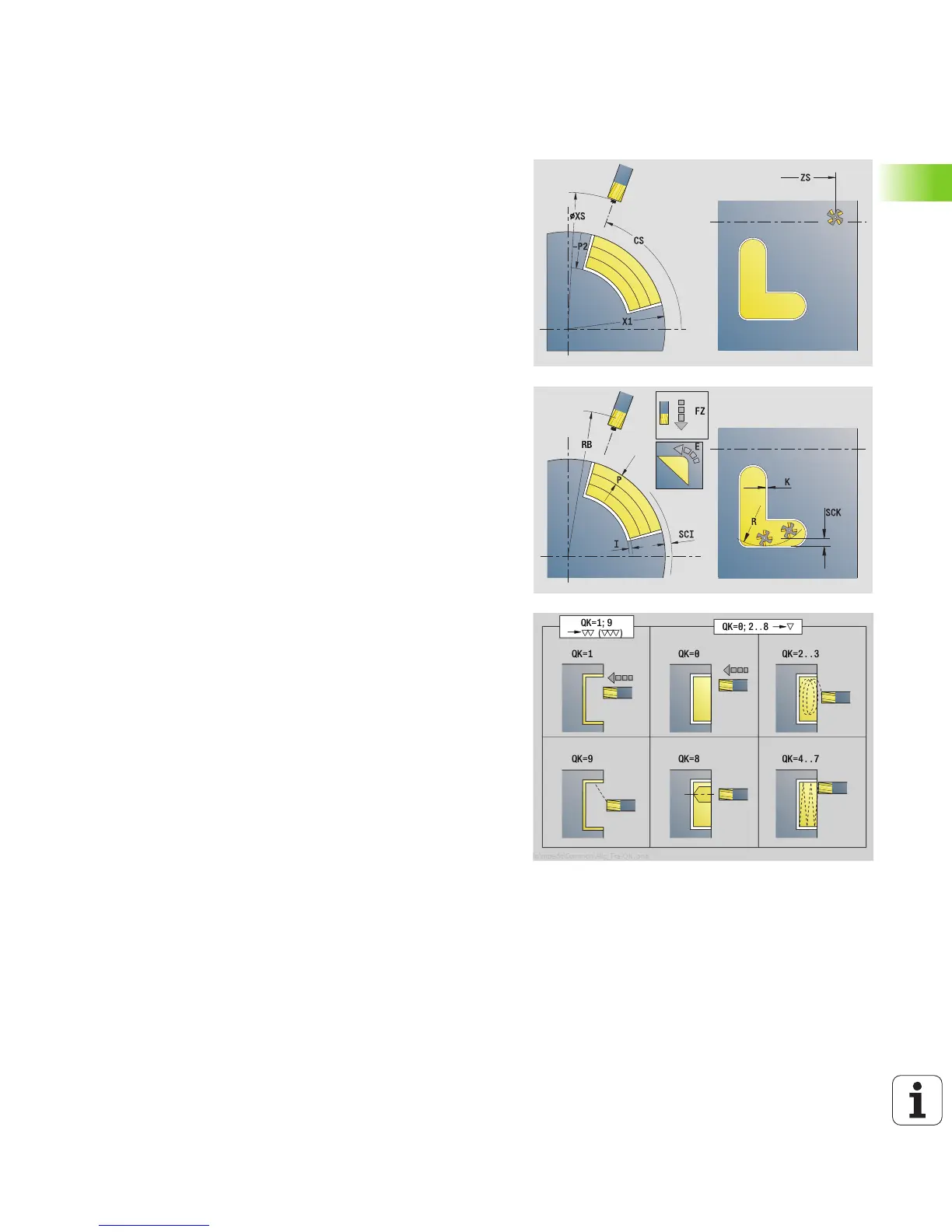

"ICP pocket milling, lateral surface" unit
The unit mills the pocket defined by Q. In QK, select the machining
mode (roughing/finishing) and the plunging strategy.
Unit name: G845_Tas_C_Mant / Cycles: G845 (see page 339); G846
(see page 343)
Access to the technology database:
 Machining operation: Milling
 Affected parameters: F, S, FZ, P
Contour form
FK see page 48
X1 Milling top edge (diameter value)
P2 Depth of contour
NF Position mark (only if QK=8)
APP Approach: see page 51
DEP Departure: see page 51
Cycle form
QK Machining operation and plunging strategy
 0: Roughing
 1: Finishing
 2: Helical roughing, manual
 3: Helical roughing, automatic
 4: Reciprocating linear roughing, manual
 5: Reciprocating linear roughing, automatic
 6: Reciprocating circular roughing, manual
 7: Reciprocating circular roughing, automatic
 8: Plunge roughing at premill position
 9: Finishing with 3-D approach arc
JT Machining direction
 0: From the inside out (from the inside towards the
outside)
 1: From the outside in (from the outside towards the
inside)
H Mill cutting direction
 0: Up-cut milling
 1: Climb milling
P Maximum approach (maximum infeed)
I Infeed-direction oversize
K Contour-parallel oversize
