120 smart.Turn Units
2.9 Units—Milling, Face

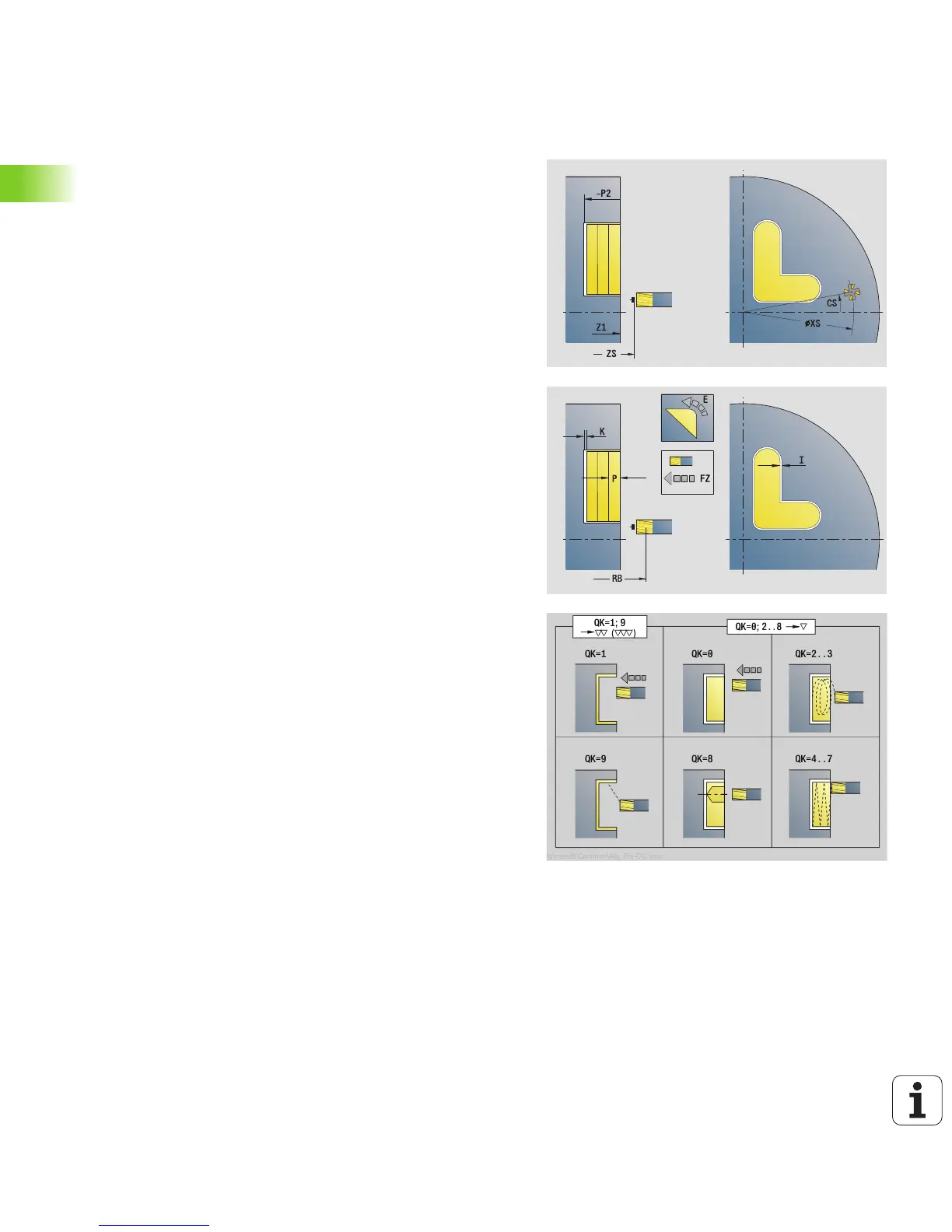

"ICP pocket milling, face" unit
The unit mills the pocket defined by Q. In QK, select the machining
operation (roughing/finishing) and the plunging strategy.
Unit name: G845_Tas_C_Stirn / Cycles: G845 (see page 339); G846
(see page 343)
Access to the technology database:
Machining operation: Milling
Affected parameters: F, S, FZ, P
Contour form
FK see page 48
Z1 Milling top edge
P2 Depth of contour
NF Position mark (only if QK=8)
APP Approach: see page 51
DEP Departure: see page 51
Cycle form
QK Machining operation and plunging strategy
0: Roughing
1: Finishing
2: Helical roughing, manual
3: Helical roughing, automatic
4: Reciprocating linear roughing, manual
5: Reciprocating linear roughing, automatic
6: Reciprocating circular roughing, manual
7: Reciprocating circular roughing, automatic
8: Plunge roughing at premill position
9: Finishing with 3-D approach arc
JT Machining direction
0: From the inside out (from the inside towards the
outside)
1: From the outside in (from the outside towards the
inside)
H Mill cutting direction
0: Up-cut milling
1: Climb milling
P Maximum approach (maximum infeed)
I Contour-parallel oversize
K Infeed-direction oversize
