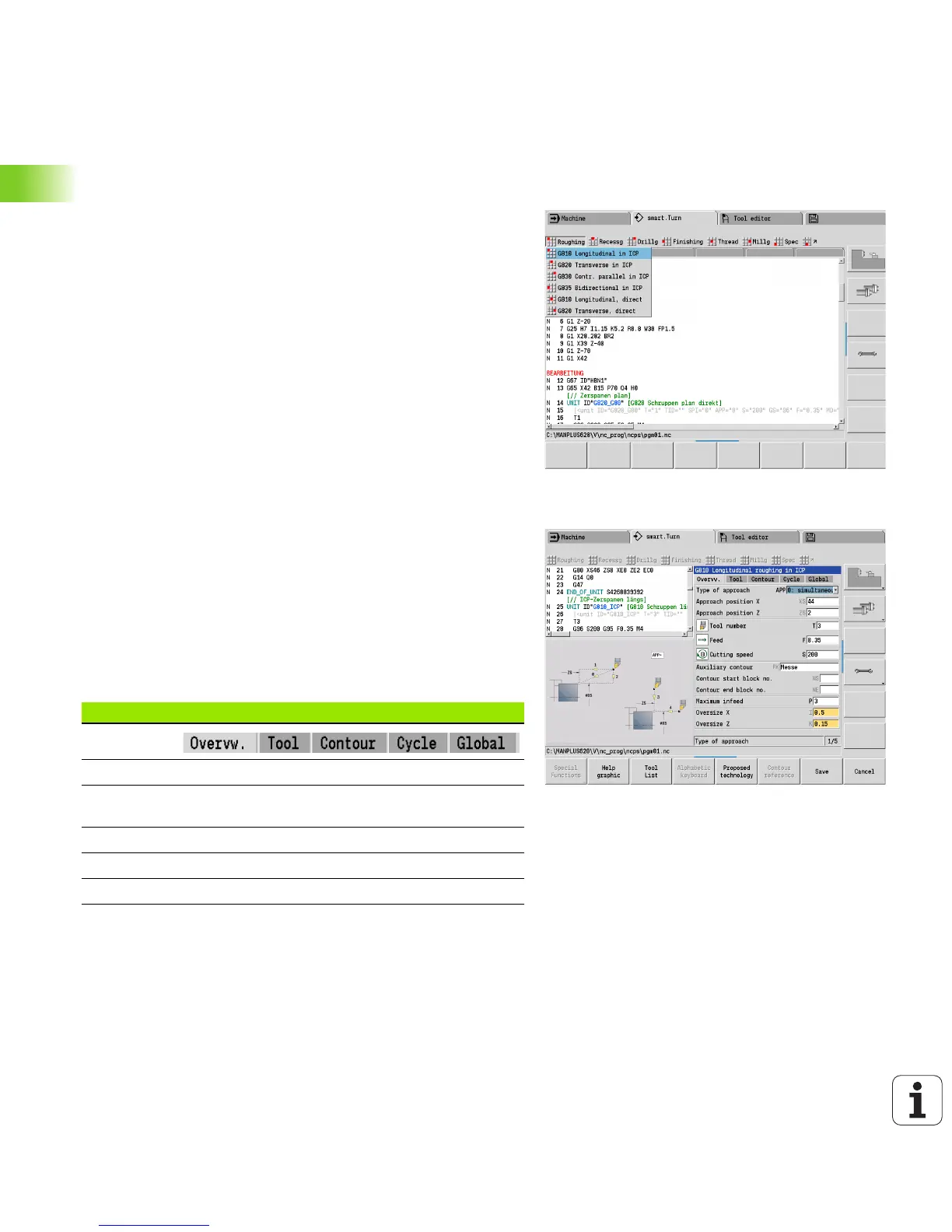

2.1 smart.Turn Units
2.1 smart.Turn Units
"Units" menu
The "Units" menu contains the unit calls grouped by the type of
machining operation: Select the Units menu to call the following pull-
down menus:
 Roughing
 Recessing
 Drilling and predrilling (C axis and Y axis)
 Finishing
 Thread
 Milling (C axis and Y axis)
 Special operations
The smart.Turn unit
A unit describes a complete working block. This means that the unit
includes the tool call, the technology data, the cycle call, the approach
and departure strategies as well as global data, such as safety
clearance, etc. All these parameters are summarized in one, clearly
structured dialog box.
Unit forms
The unit dialog is divided into fillable forms and the forms are divided
again into groups. You can navigate between the forms and groups
with the smart keys.
The Overview form
The overview form summarizes the most important settings of the
unit. These parameters are repeated in the other forms.
Forms in unit dialogs
Overview Overview form with all necessary settings.
Tool Tool form with tool selection, technological settings and
M functions.
Contour Description or selection of the contour to be machined
Cycle Description of the machining operation
Global View and settings of globally set values
