HEIDENHAIN MANUALPLUS 620 User Manual

222 ISO Programming
4.8 Lateral Surface Contours

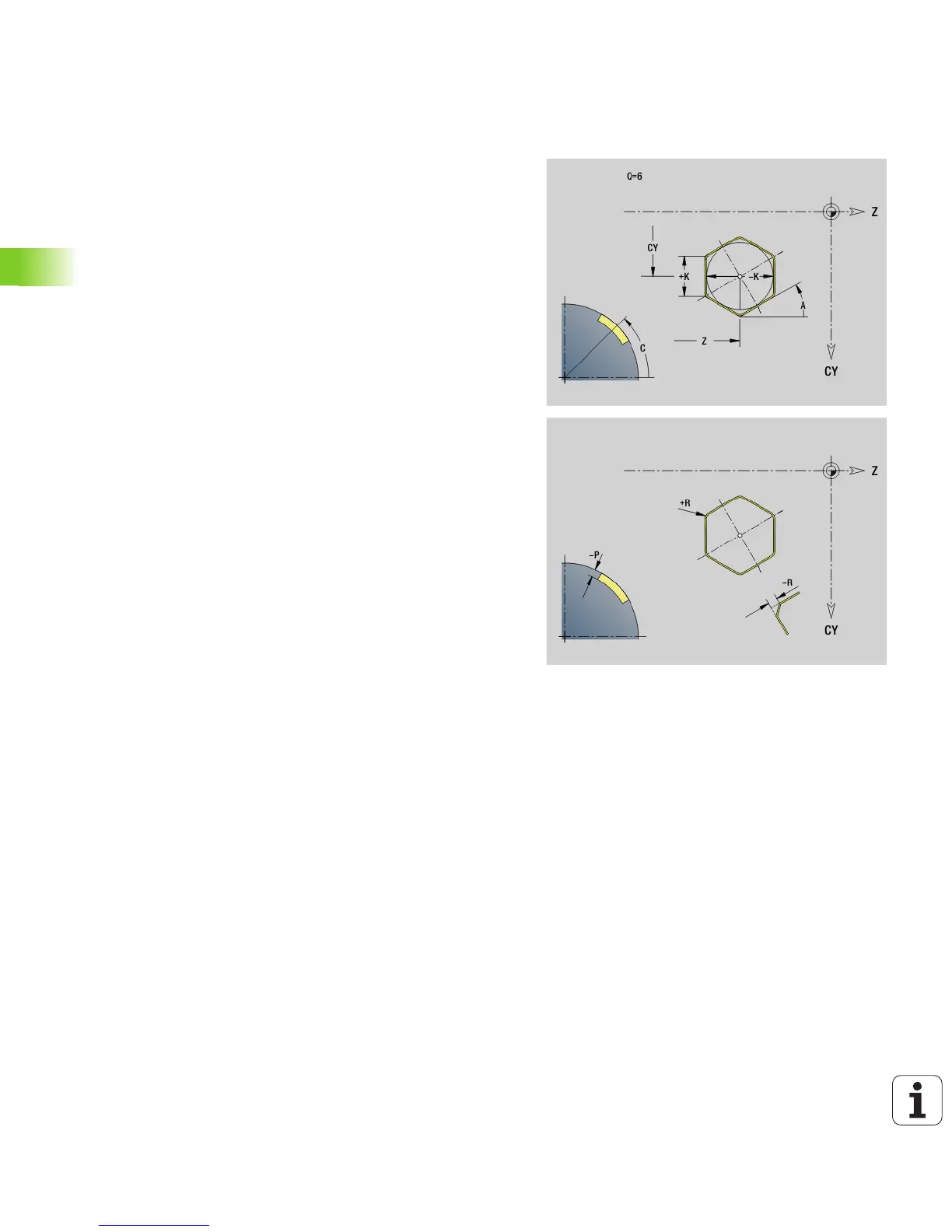

Eccentric polygon on lateral surface G317-Geo
G317 defines a polygon in a lateral-surface contour.
Parameters
ZCenter
CY Center as linear value; reference: unrolled reference diameter
C Center (angle)
Q Number of edges (Q > 2)
A Angle to Z axis (default: 0°)
K Edge length
 K>0: Edge length
 K<0: Inside diameter of circle
R Chamfer/rounding arc (default: 0°)
 R>0: Radius of rounding arc
 R<0: Chamfer width
P Pocket depth (default: “P” from G308)
