408 DIN Programming for the Y Axis
5.6 Linear and Circular Movements in the Y Axis
5.6 Linear and Circular Movements
in the Y Axis

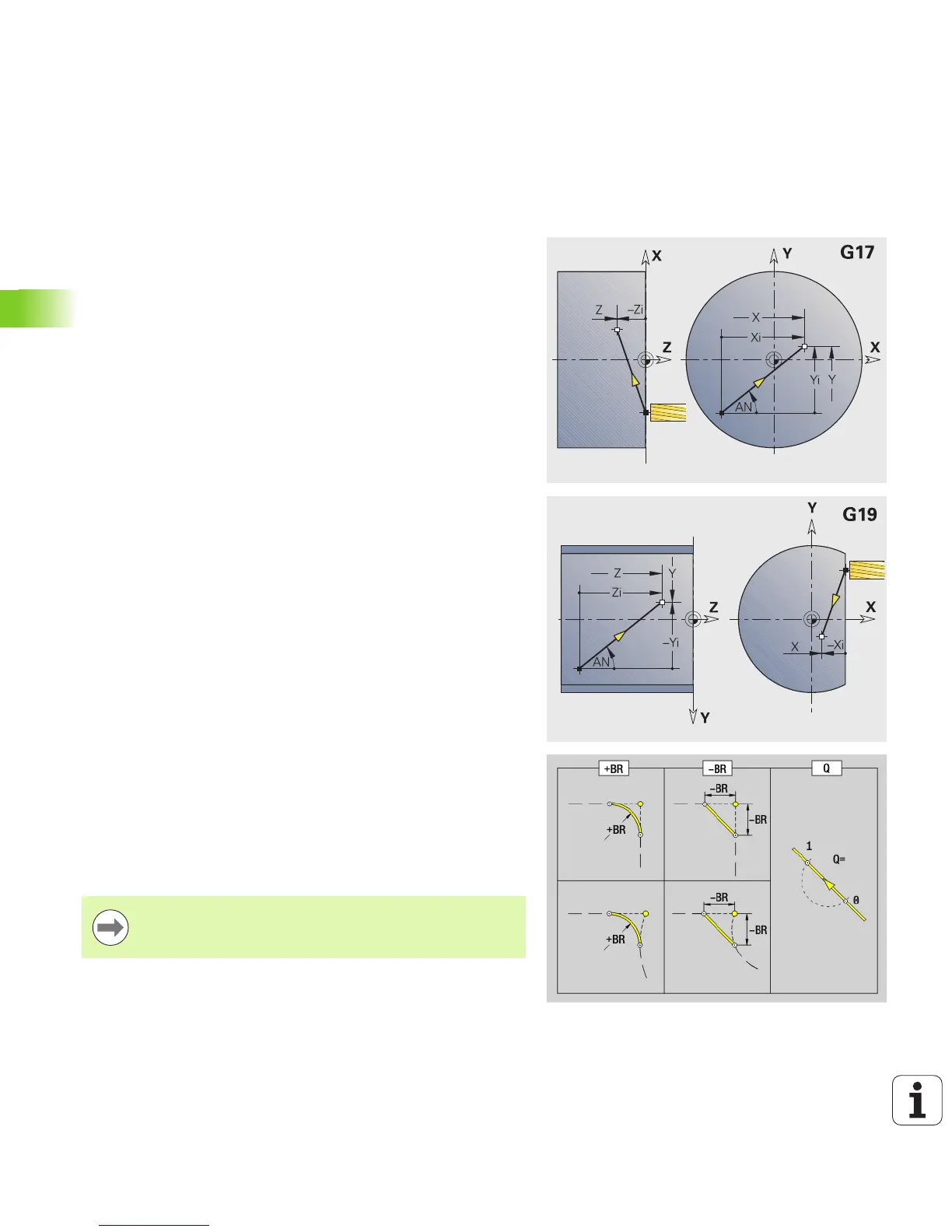

Milling: Linear movement G1
G1 moves the tool on a linear path at the feed rate to the “end point.”
The execution of G1 varies depending on the working plane:
G17 Interpolation in the XY plane
Infeed in Z direction
Angle A—reference: positive X axis
G18 Interpolation in the XZ plane
Infeed in Y direction
Angle A—reference: negative Z axis
G19 Interpolation in the YZ plane
Infeed in X direction
Angle A—reference: positive Z axis
Parameters
X Final point (diameter)
Y Final point
Z Final point
AN Angle (reference: depends on the working plane)
Q Point of intersection. End point if the circular arc intersects a
line segment or another circular arc (default: 0):
0: Near point of intersection
1: Far point of intersection
BR Chamfer/rounding. Defines the transition to the next contour
element. When entering a chamfer/rounding, program the
theoretical end point.
No entry: Tangential transition
BR=0: No tangential transition
BR>0: Rounding radius
BR<0: Width of chamfer
BE Special feed factor for chamfer/rounding arc (default: 1)
Special feed rate = active feed rate * BE (0 < BE <= 1)
Programming X, Y, Z: Absolute, incremental or modal or
“?”
