HEIDENHAIN MANUALplus 620 179

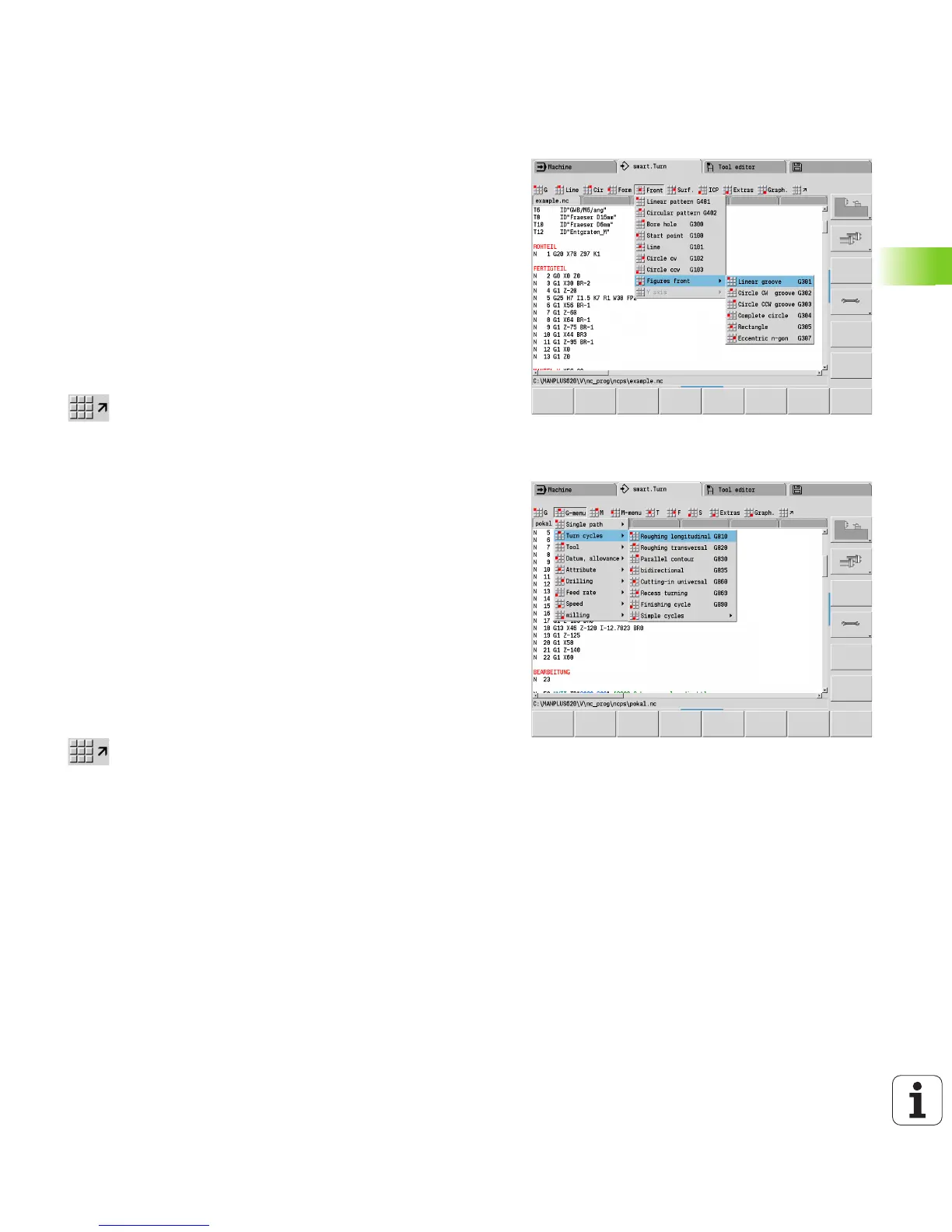

4.1 Programming in DIN/ISO Mode
"Geometry" pull-down menus
The Geo(metry) pull-down menus contain functions for contour
description. The pull-down menus are called by pressing the "Geo"
menu in DIN/ISO mode.
Overview of the functions:
 G: Direct entry of a G function
 Line: Direct entry of a line segment G1
 Circle: Description of a circular arc (G2, G3, G12, G13)
 Form: Description of form elements
 Front: Functions for contour descriptions on the front face
 Surface: Functions for contour descriptions on the lateral surface
 ICP, Extras, Graph.: See “Shared menu items” on page 30.
U Back to the DIN/ISO main menu
“Machining” pull-down menus
The “Mach (ining)” pull-down menus contain functions for
programming the machining operation. The pull-down menus are
called by pressing the “Mach” menu in DIN/ISO mode.
Overview of the functions:
 G: Direct entry of a G function
 G menu: Pull-down menus for machining tasks
 M: Direct entry of an M function
 M menu: Pull-down menus for switching tasks
 T: Direct tool call
 F: Feed per revolution G95
 S: Cutting speed G96
 Extras, Graph.: See “Shared menu items” on page 30.
U Back to the DIN/ISO main menu
